PANEL DESCRIPTION
2
2

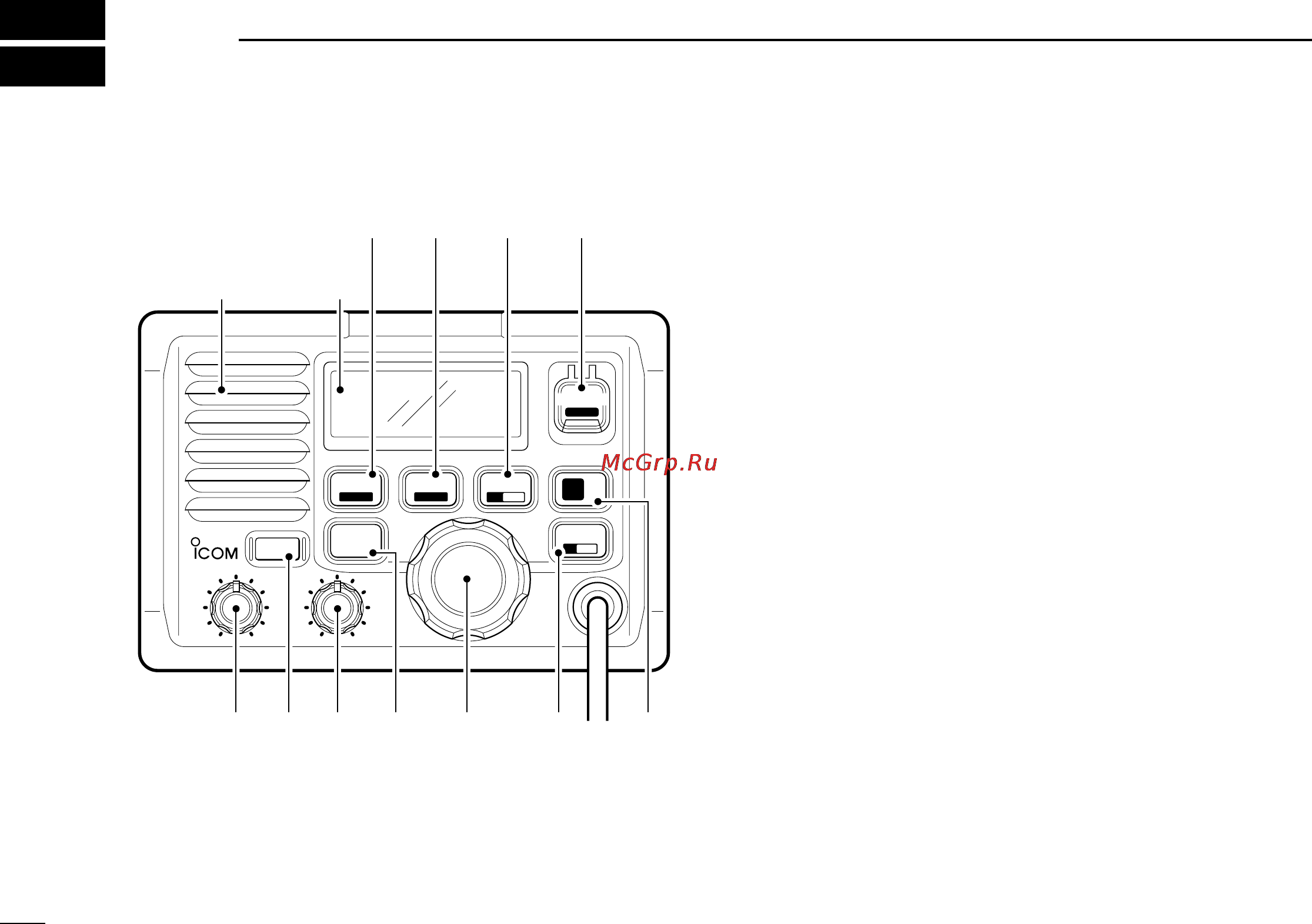

■ Front panel
WATERPROOF
SCAN
TAG
DSC/ENT
POS
HI/LO
POWER
VOL
iM502
VHF MARINE
SQL
LO/DX
IC SCR
CH/WX
DW U/I/C
916
DISTRESS
Speaker
Function
display
qwe r t y u
io!0!1
q VOLUME CONTROL
[
[
VOL
VOL
]
] (p. 8)
Adjusts the audio level.
w POWER KEY
[
[
POWER
POWER
]
]
Push to turn the transceiver power ON or OFF.
e SQUELCH CONTROL
[
[
SQL
SQL
]
] (p. 8)
Sets the squelch threshold level.
r TRANSMIT POWER KEY
[
[
HI/LO
HI/LO
]
]
➥ Toggles power high or low when pushed. (p. 8)
• Some channels are set to low power only.
➥ While pushing this key, some keys perform secondary
functions.
t CHANNEL SELECTOR
[
[
CHANNEL
CHANNEL
]
]
➥ Rotate
[
[
CHANNEL
CHANNEL
]
] to select the operating channels,
Set mode settings, etc. (pgs. 8, 38)
➥ While pushing
[
[
HI/LO
HI/LO
]
], rotate
[
[
CHANNEL
CHANNEL
]
] to adjust
the brightness of the LCD and key backlight. (p. 37)
