54
13
HM-127 REMOTE-CONTROL MICROPHONE
DD
Top keys
q POWER KEY [PWR] (pgs. 8, 57)
Push for 2 sec. to turn the HM-127 power ON or OFF
when the IC-M502A power is turned ON.
w SCAN KEY
[
[
SCAN
SCAN
]
]
(
(
)
) (pgs. 13, 61)
➥ Starts and stops Normal or Priority scan when tag chan-
nels are programmed.
➥ Push
[
[
SCAN
SCAN
]
]
(
(
)
) for 1 sec. to set the displayed chan-
nel as a tag (scanned) channel.
➥ While pushing
[
[
H/L
H/L
]
], push for 3 sec. to clear or set all
tag channels.
e TRANSMIT POWER KEY
[
[
H/L
H/L
]
]
➥ Toggles high or low power when pushed. (pgs. 8, 57)
• Some Channels are set to low power only.
➥ While pushing this key, other keys perform secondary
functions.
➥ Toggles the All key lock function ON or OFF when
pushed while turning power ON. (p. 58)
•“ T ” blinks while the All key lock function is in use.
•Only
[
[
PWR
PWR
]
] and
[
[
PTT
PTT
]
] function when the All key lock func-
tion is in use.

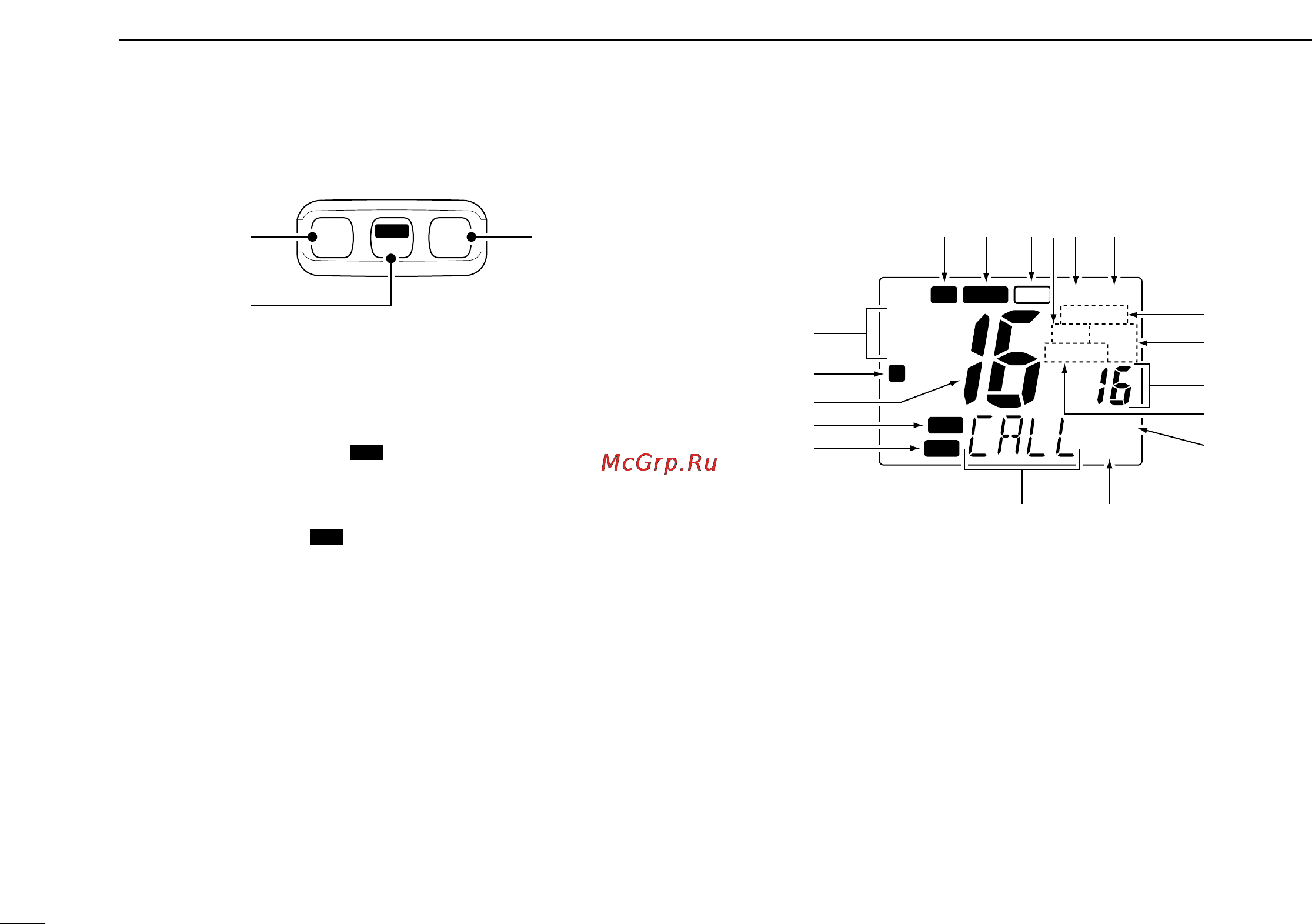

■ Function display
q CHANNEL GROUP INDICATOR (pgs. 7, 56)
Indicates whether an International (INT), U.S.A. (USA) or
Canadian (CAN) channel is selected.
w KEY LOCK INDICATOR (p. 58)
➥ Appears while the Key lock function is in use.
➥ Blinks while the All key lock function is in use.
CALL
WX ALT
DUP
P SCAN
SCRM
LOCAL
TRI
DUAL
LOW
TAG
CAN
USA
INT
L
TX
BUSY
VOL
SQL
q
w
r
t
e
!8 !7 !4!5 !3
!2
!1
!0
o
i
uy
!6
TAG
TAG
PWR
SCAN
H/L
TAG
q
e
w
