6 | About the units and options
Installer reference guide
28
EJHA04AAV3 + EHY2KOMB28+32AA
Daikin Altherma H Hybrid
4P531180-1B – 2020.02

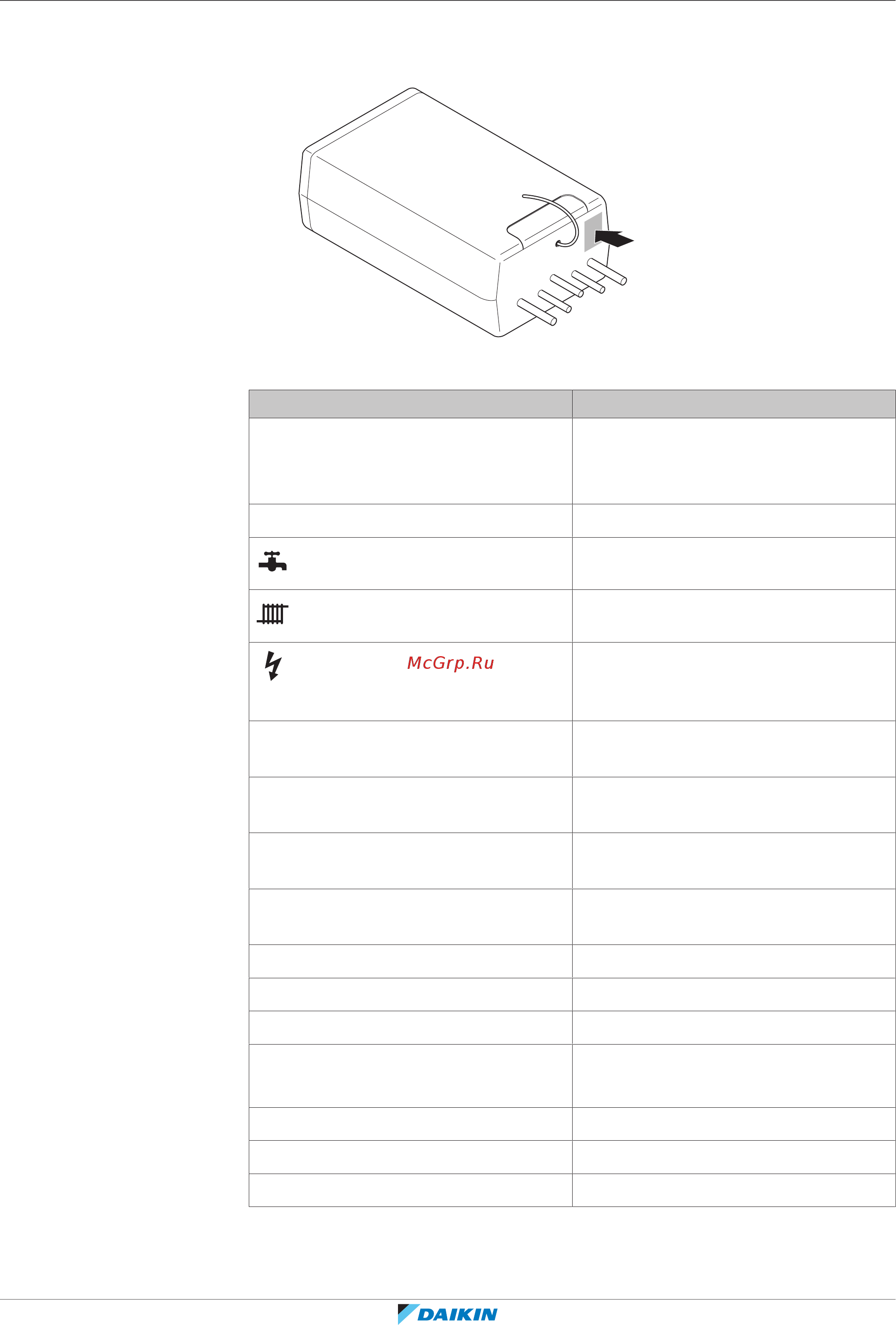

6.2.2 Identification label: Gas boiler
Location
Model identification
Unit detail Description
******-yymm****** Product code-Serial No.
yy = year of production, mm = month of
production
PIN Product Identification Number
Data related to domestic hot water
Data related to space heating
Information regarding electrical power
supply (Voltage, mains frequency,
elmax, IP-class)
PMS Permissible overpressure in space
heating circuit
PWS Permissible overpressure in domestic
hot water circuit
Qn HS Input related to gross caloric value in
kilowatts
Qn Hi Input related to net caloric value in
kilowatts
Pn Output in kilowatts
DE, FR, GB, IT, NL Countries of Destination (EN437)
I2E(s), I2H, IIELL3P, II2H3P, II2Esi3P Approved unit categories (EN437)
G20-20mbar
G25-25mbar
Gas group and gas connection pressure
as set at the factory (EN437)
B23, …., C93(x) Approved flue gas category (EN15502)
Tmax Maximum flow temperature in °C
IPX4D Electrical protection class
