9 | Installation
Installer reference guide
96
EJHA04AAV3 + EHY2KOMB28+32AA
Daikin Altherma H Hybrid
4P531180-1B – 2020.02

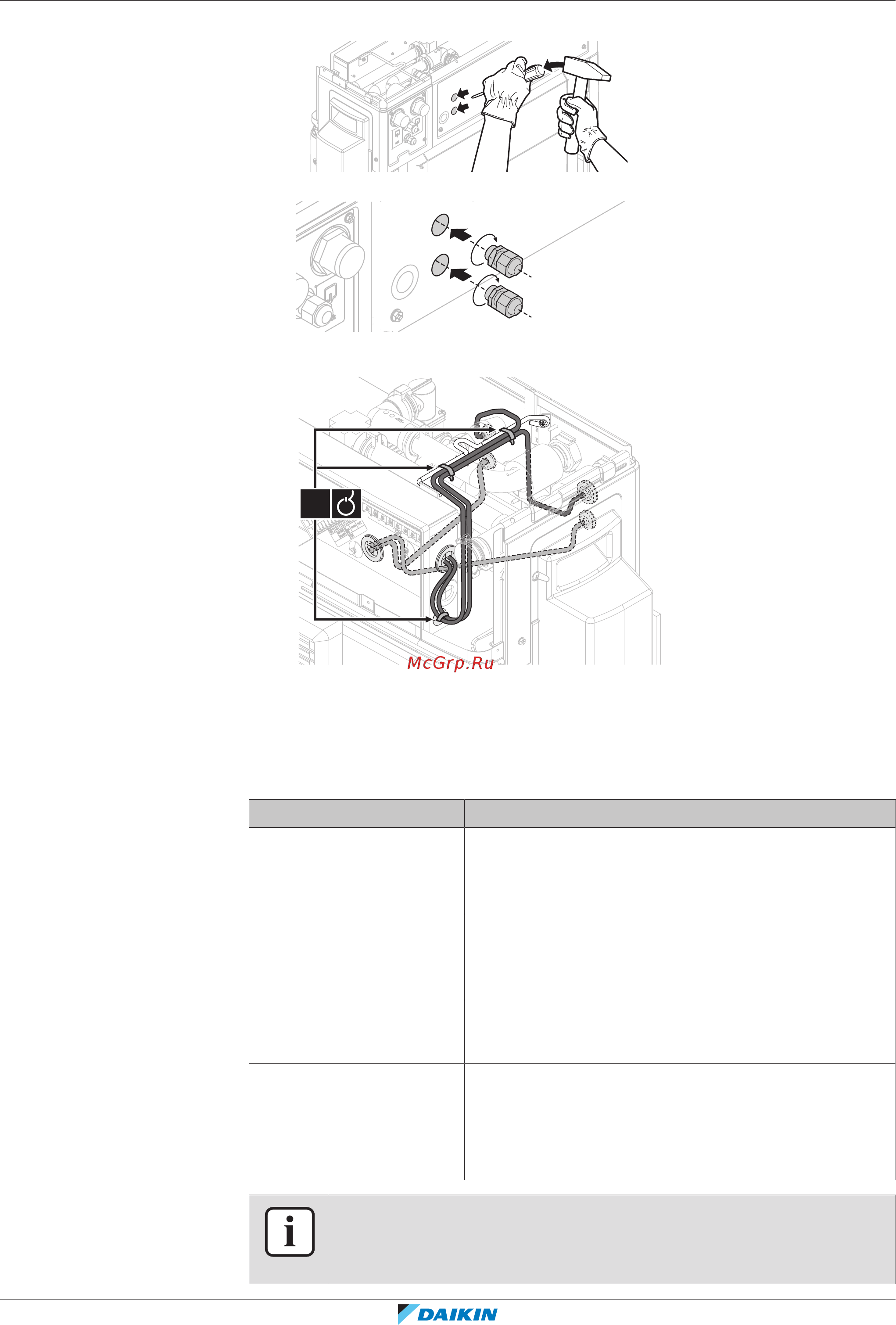

▪ Punch the knockout holes using a hammer and screw driver.
▪ Insert the cable glands (delivered as accessory).
5 Inside the unit, route the wiring to the switch box as follows:
3×
a
b
c
d
a~d See below
6 Inside the switch box, connect the wires to the appropriate terminals.
7 After connecting all wiring, close the front plate and the top plate.
Connections in case of dedicated gas boiler
Routing Possible cables (depends on the installed options)
a
Main power supply (high
voltage)
Main power supply
b
User interface (low
voltage)
User interface (mandatory option)
c
High voltage
Domestic hot water pump (field supply)
d
Low voltage
▪ Interconnection cable between outdoor unit and
gas boiler
▪ External outdoor temperature sensor (option)
▪ LAN adapter (option)
INFORMATION
Bottom plate heater (option). For the routing, see the installation manual of the
bottom plate heater.
