5 About the units and options
Installation and operation manual
11
EHY2KOMB28+32AA
Daikin Altherma H Hybrid – Gas boiler module
4P538953-1A – 2020.02

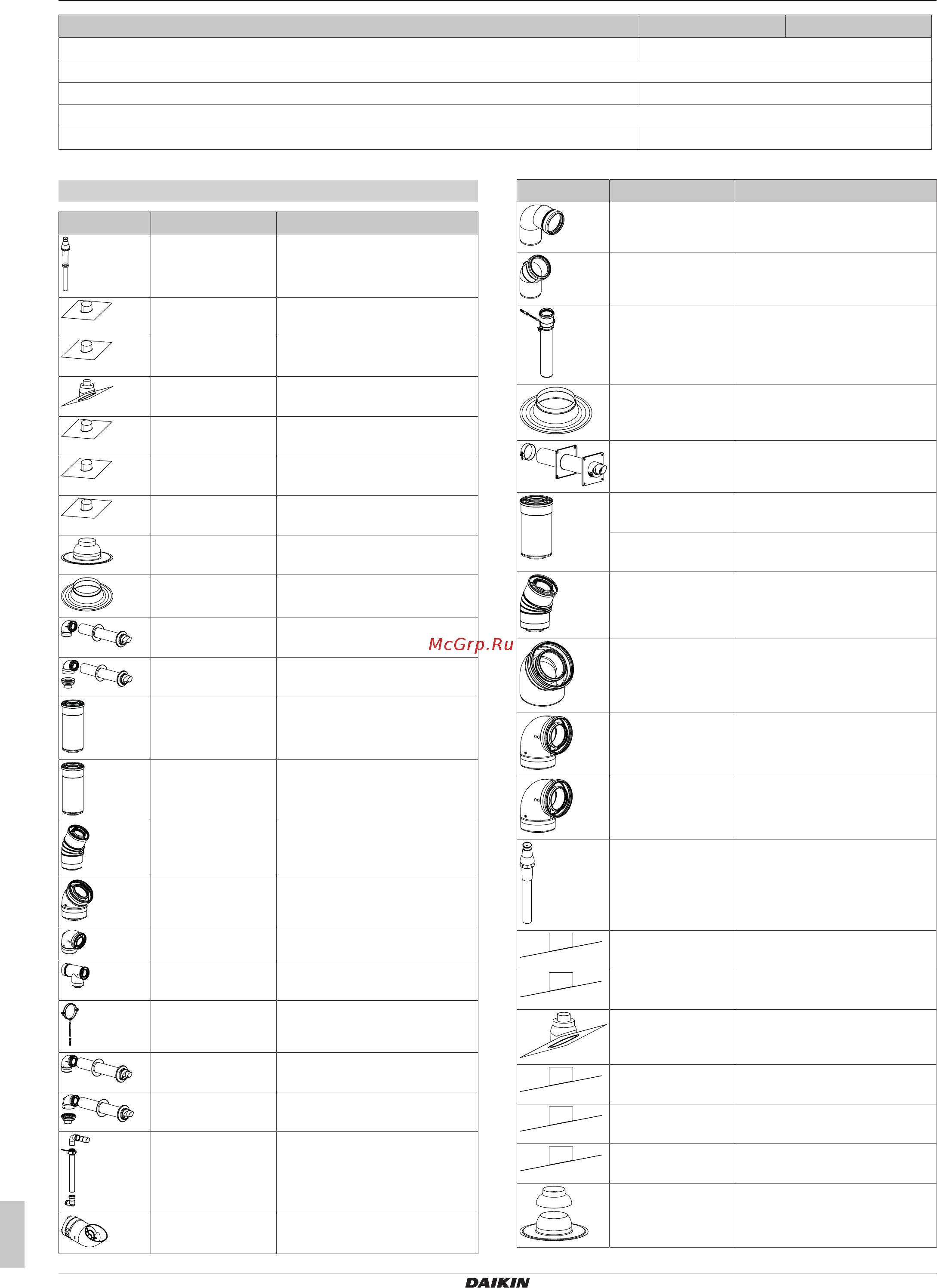

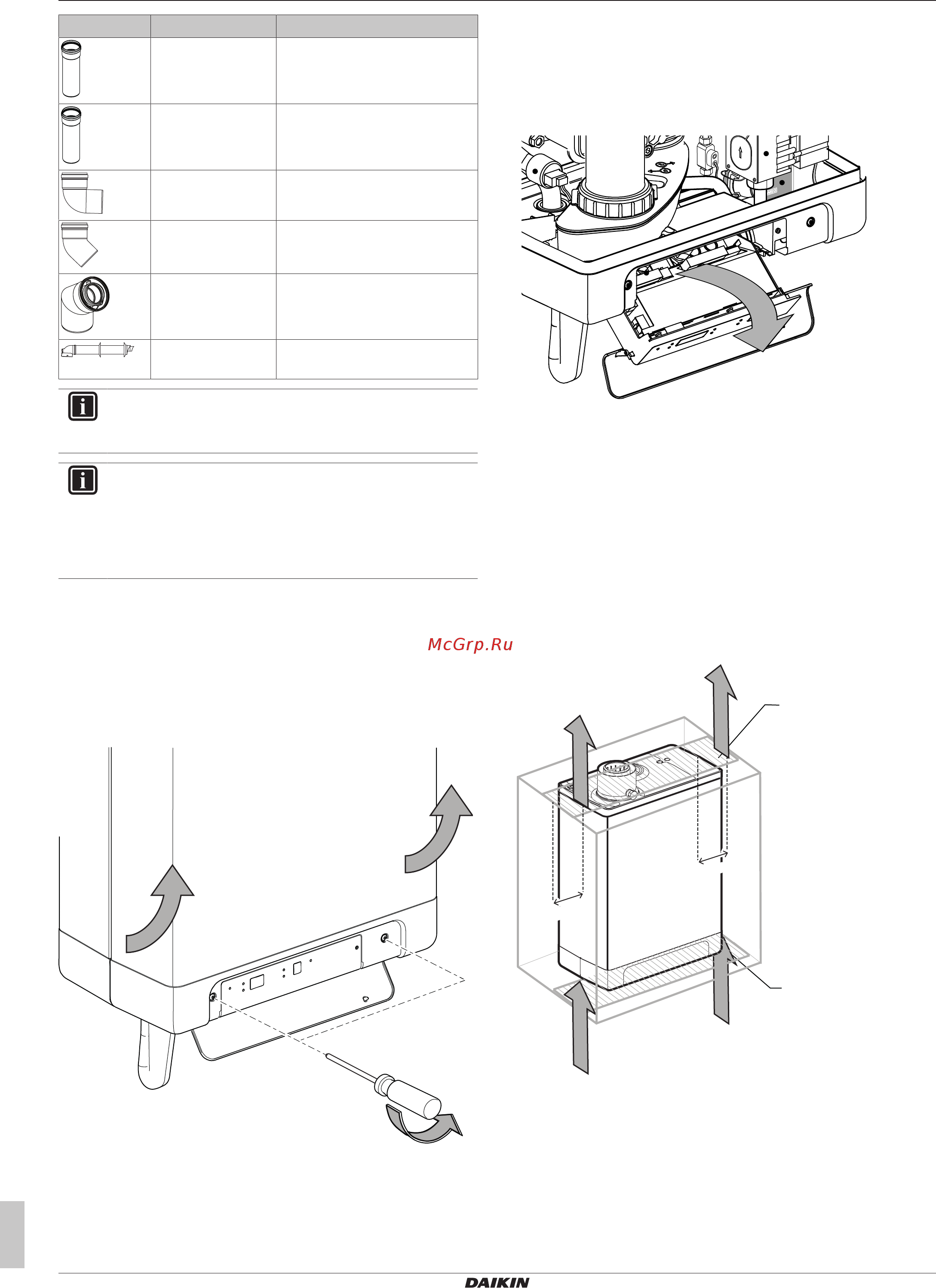

Accessories Part number Description
EKFGP6368 Tee flex 100 boiler connection
set 1
EKFGP6354 Flex 100-60 + support elbow
EKFGP6215 Tee flex 130 boiler connection
set 1
EKFGS0257 Flex 130-60 + support elbow
EKFGP4678 Chimney connection 60/100
EKFGP5461 Extension PP 60×500
EKFGP5497 Chimney top PP 100 with
included flue pipe
EKFGP6316 Adapter flex-fixed PP 100
EKFGP6337 Support bracket top inox Ø100
EKFGP6346 Extension flex PP100 L=10m
EKFGP6349 Extension flex PP100 L=15m
EKFGP6347 Extension flex PP100 L=25m
EKFGP6325 Connector flex-flex PP100
EKFGP5197 Chimney top PP 130 with
included flue pipe
EKFGS0252 Adapter flex-fixed PP130
EKFGP6353 Support bracket top inox Ø130
Accessories Part number Description
EKFGS0250 Extension flex PP130 L=130m
EKFGP6366 Connector flex-flex PP130
EKFGP1856 Flex kit PPØ60-80
EKFGP4678 Chimney connection 60/100
EKFGP2520 Flex kit PP Ø80
EKFGP4828 Chimney connection 80/125
EKFGP6340 Extension Flex PP80 L=10m
EKFGP6344 Extension Flex PP80 L=15m
EKFGP6341 Extension Flex PP80 L=25m
EKFGP6342 Extension Flex PP80 L=50m
EKFGP6324 Connector-flex-flex PP80
EKFGP6333 Spacer PP80-100
EKFGP4481 Fixation Ø100
EKFGV1101 Chimney connection 60/10
airintake Dn.80 C83
EKFGV1102 Connection set 60/10-60 Flue/
Air intake Dn.80 C53
EKFGW4001 ExtensionPBM-Air 80×500
