PANEL DESCRIPTION

!3 BUSY indicator

Appears when receiving a signal or when signal noise opens

the squelch.

!4 Signal meter

Indicates the receive signal strength. Also indicates the S-

meter squelch receive level set via the [SQUELCH] scroll bar.

!5 Center indicators

Indicate the tuning level when selecting the 6 kHz or 15 kHz

IF ﬁlter in FM mode.

!6 STOP button

Cancels scan operation.

!7 PROG (program scan) button

Used to start/stop program scan. The indicator lamp lights

during scan and Program SCAN appears in the Condition in-

dicator window.

!8 II (scan pause) button

Used to pause/resume a scan. When a scan is paused,

Pause appears in the Condition indicator window.

!9 AUTO (auto memory write scan) button

Used to start/stop auto memory write scan. The indicator

lamp lights during scan and Auto MW SCAN appears in the

Condition indicator window.

@0 Condition indicator window

Indicates the scan function operating condition. When scan

temporarily pauses to receive a signal Busy Stop appears.

@1 MEMO (memory scan) button

Used to start/stop any of the memory scans. The indicator

lamp lights during scan and Memory SCAN appears in the

Condition indicator window.

@2 SET button

Shows/hides the [Setting] dialog box used to adjust settings

for scan functions, the band scope function and the automatic

mode function.

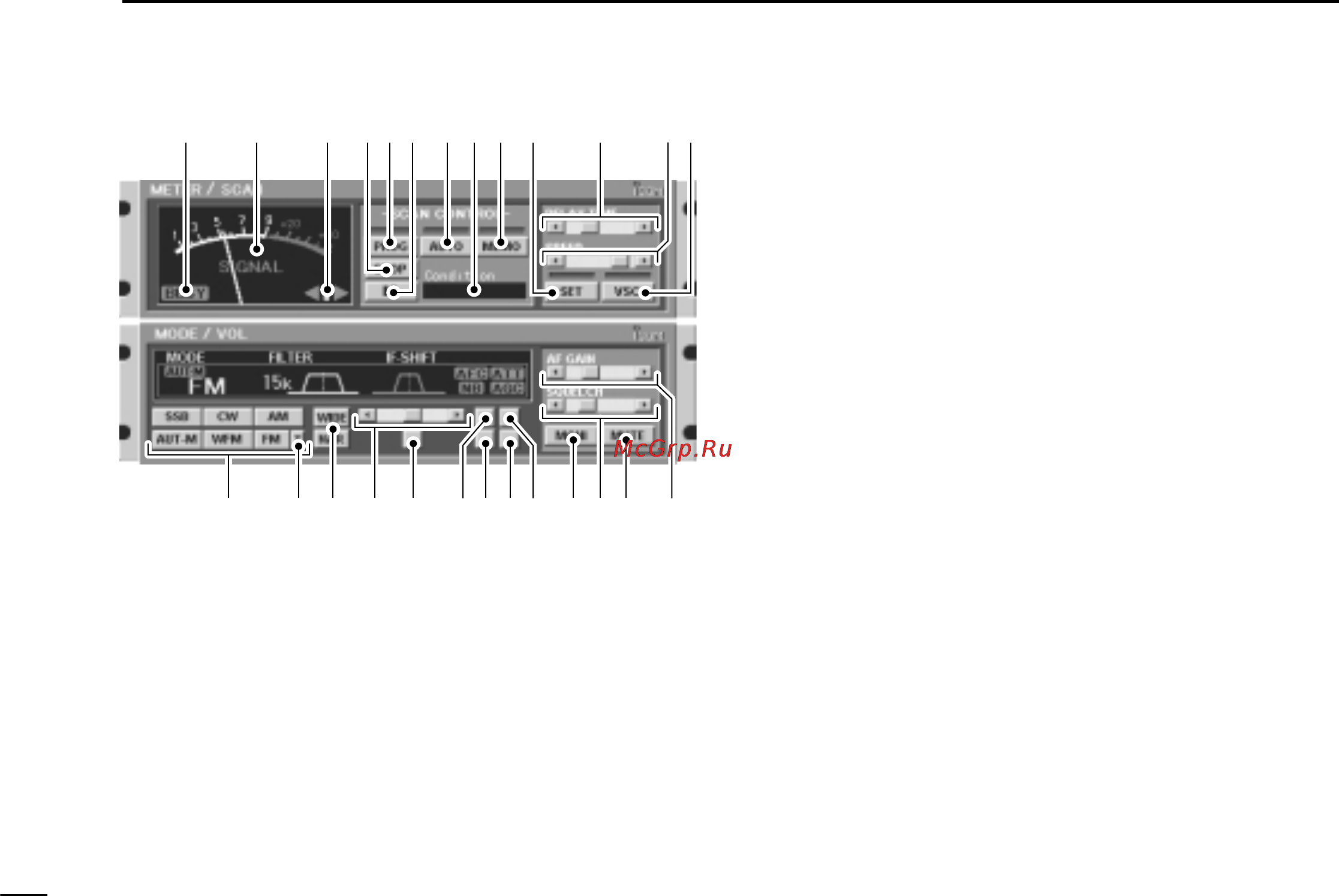

!3 !4 !5 !6!7!8
