2
10
PANEL DESCRIPTION

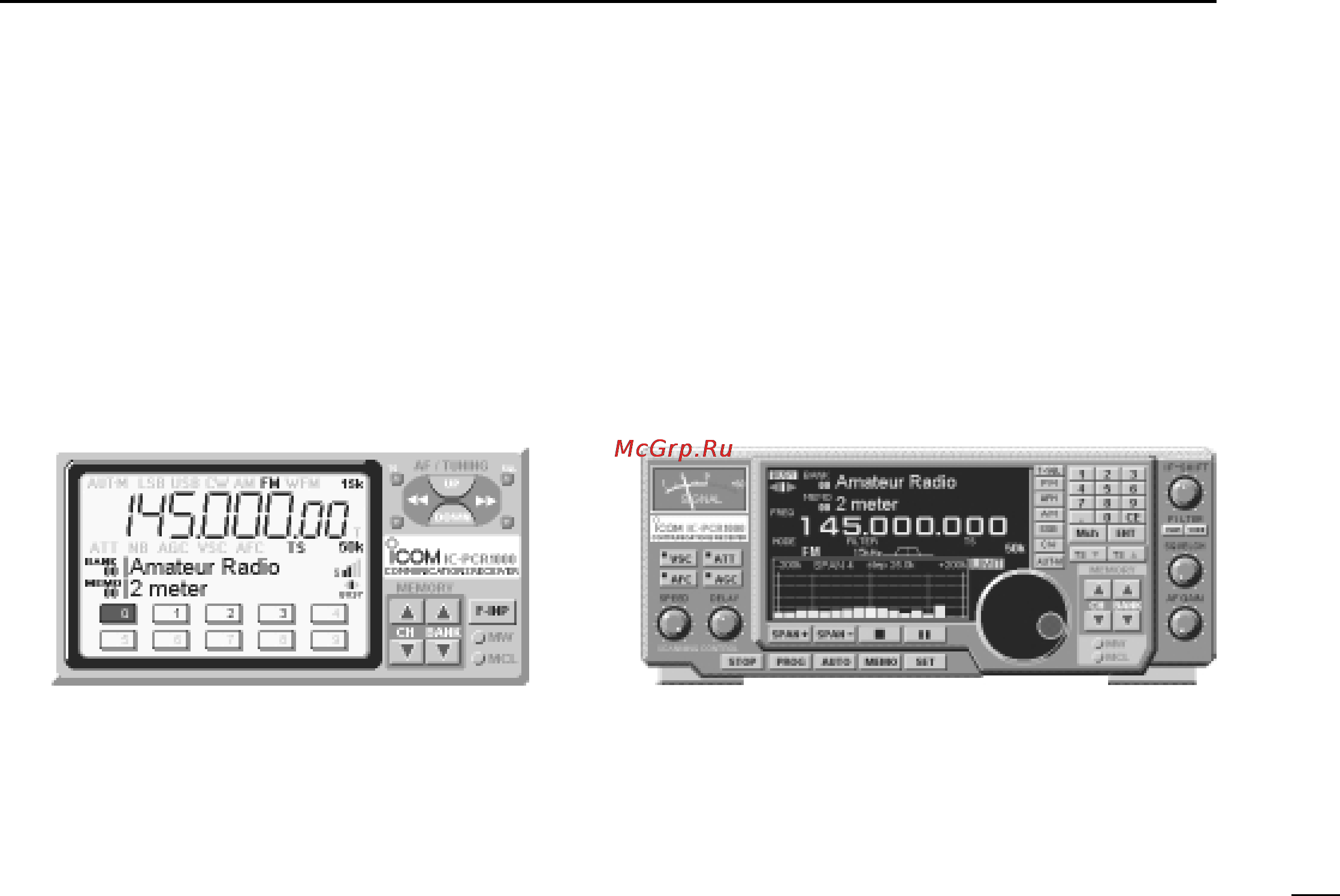

■Radio screen
The radio screen shows 10 memory channel buttons and fre-
quency readout, etc. like a typical stereo tuner—this provides
the simplest operation for monitoring your most-listened-to-
stations, such as AM/FM broadcasting and TV, etc.
See the on-line help for the radio screen details.
■Communications receiver
screen
The communications receiver screen shows S-meter (signal
strength) level, a large frequency readout, keypad, etc.—what
you would see on the front panel of a typical communications
receiver.
See the on-line help for the communications receiver screen
details.
