PANEL DESCRIPTION

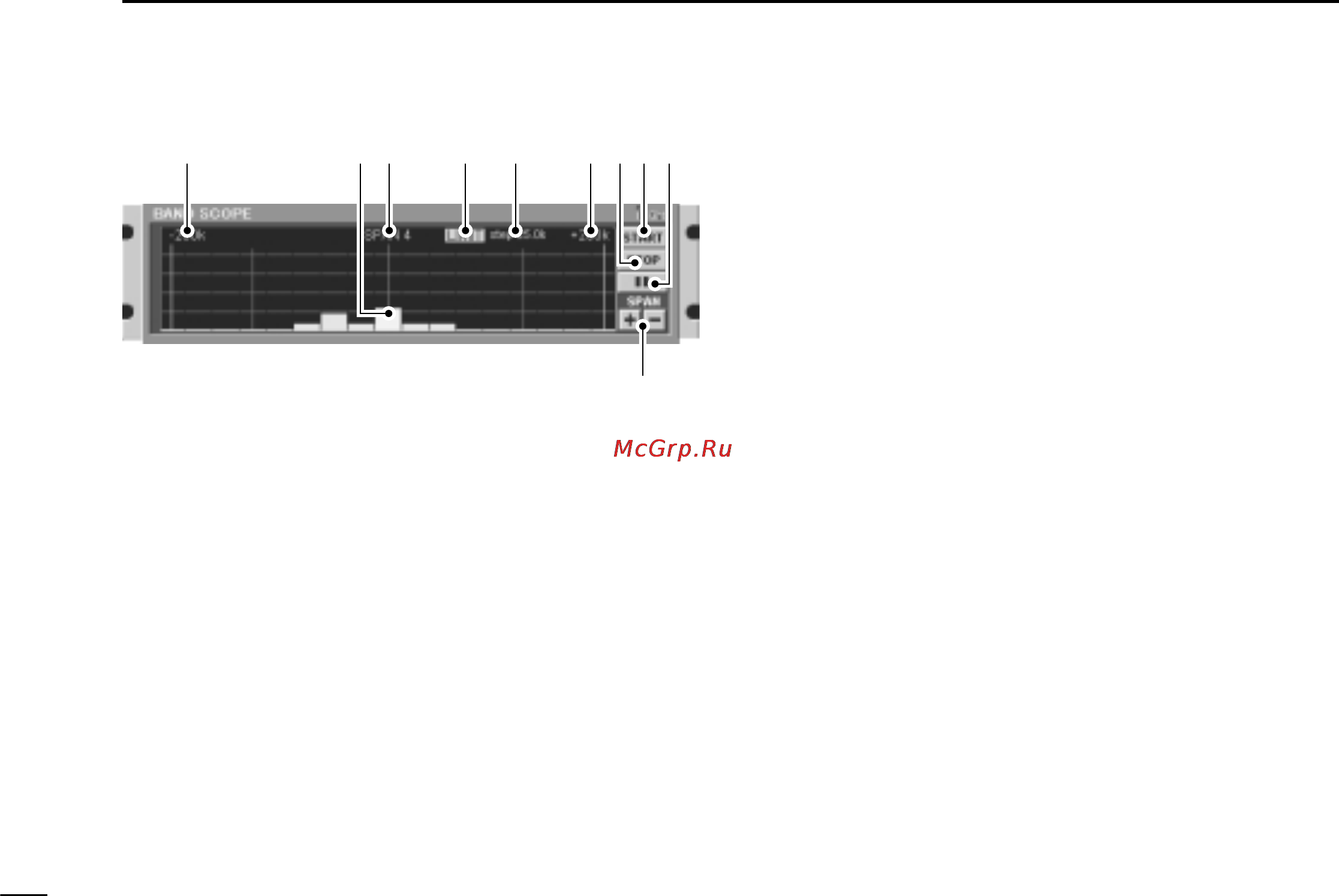

#9 +200k/–200k (Max. frequency span value) indicators

Indicate the upper and lower observable frequency limits

around a receive frequency.

In the diagram, the upper and lower limits are +200 kHz and

–200 kHz.

$0 Center frequency indicator

Indicates the center frequency of the frequency span; this is

for the currently received frequency.

$1 Frequency span indication

Indicates the frequency span selected with the [SPAN+/–] but-

ton.

$2 LIMIT indicator

Indicates when the tuning step is greater than the automatic

sweep step setting.

In the diagram, the tuning step is greater than the automatic

sweep step setting and the tuning step (TS) and the sweep

step width are not the same.

$3 Sweep step indicator

Indicates band scope sweep step.

$4 STOP button

Stops the band scope (sweep) function.

$5 START button

Starts the band scope (sweep) function which is used to ob-

serve signal conditions around the receive frequency.

$6 II (sweep pause) button

Pauses/resumes a band scope function sweep.

$7 SPAN +/– buttons

Select one of four levels for the band scope frequency span.

#9 #9$0 $1 $2 $3

$5 $6
