Icom IC-PCR1000 [15/16] Specifications and unpacking

SPECIFICATIONS AND UNPACKING

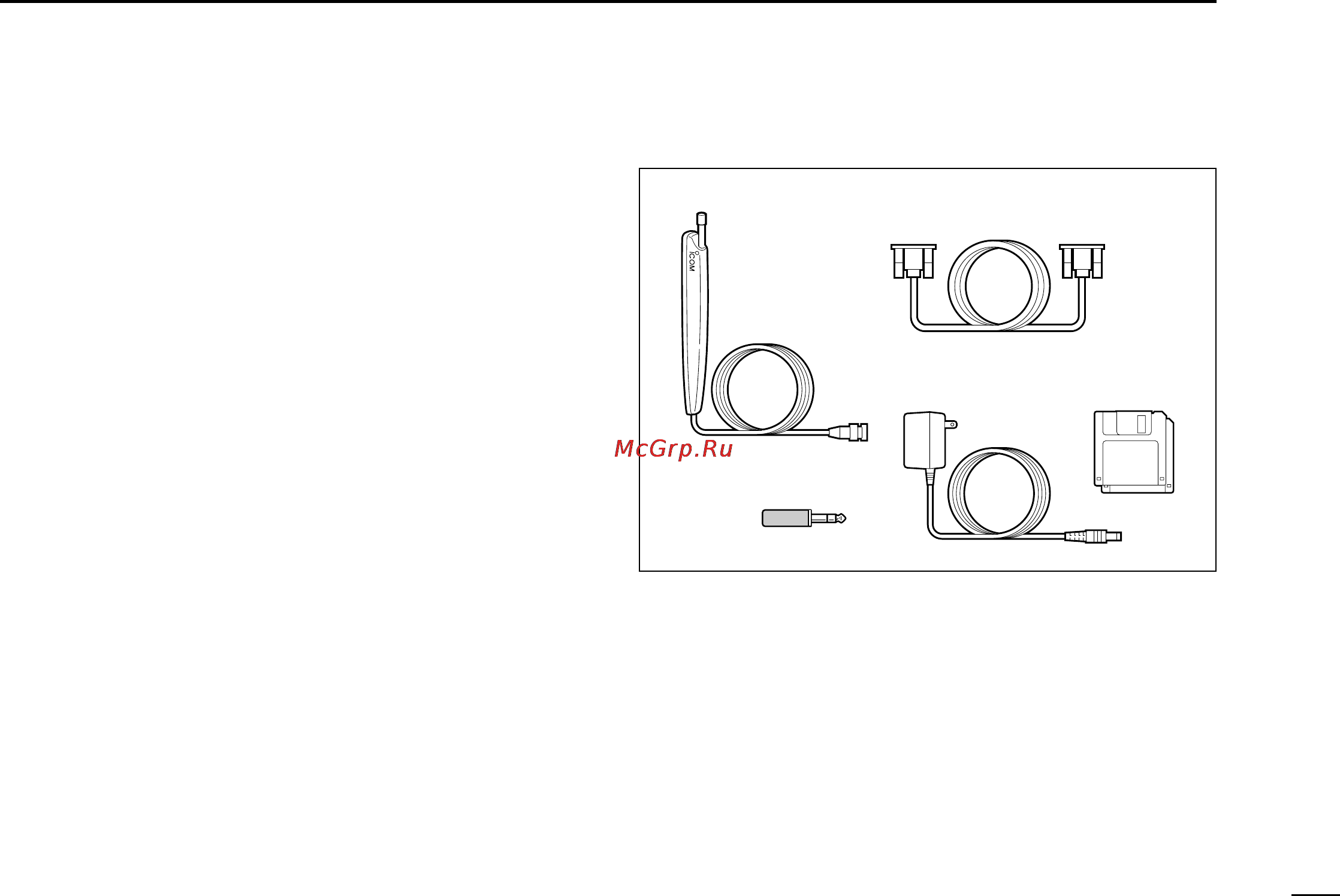

■Unpacking

q Telescoping antenna ....................................................... 1

w RS-232C cable (OPC-743) ............................................. 1

e External speaker plug ..................................................... 1

r AC adapter (BC-123A/E/V or BM-104E/V)* ................... 1

t Software ﬂoppy disks ................................................ 1 set

* For versions which do not come with an AC adapter, a DC power

cable and 2 fuses (FGB 2 A) are supplied. An optional AC adapter

(BC-123A/E/V or BM-104E/V) is also available.

•Selectivity :

WFM 230 kHz/–6 dB

WFM/FM/AM 50 kHz/–6 dB

FM/AM 15 kHz/–6 dB

FM/AM/SSB/CW 6 kHz/–6 dB

AM/SSB/CW 2.8* kHz/–6 dB

*Software indicates 3 kHz.

•IF shift range :More than ±1.2 kHz

•Max. audio output :200 mW

(at 10% distortion with an 8 Ω load)

•Antenna connector :BNC (50 Ω)

•RS-232C connector :D-sub 9-pin (female)

•Ext. speaker connector :3-conductor 3.5 (d) mm (

⁄8")/

4–8 Ω

•Dimensions

(projections not included):

127.5(W)×30(H)×199(D) mm

5(W)×1

⁄16(H)×7

⁄32(D) in

•Weight :approx. 1 kg; 2 lb 3 oz.

All stated specifications are subject to change without

notice or obligation.
