Metabo SBE 610 [12/20] English
![Metabo SBE 610 [12/20] English](/views2/1075861/page12/bgc.png)
12
ENGLISH
ENG
8.3 Rotational speed preselection
Preselect the maximum rotational speed at the
setting wheel (8). For recommended rotational
speeds for drilling, see page 4.
8.4 Switching over drilling/impact drilling
Select the desired operating mode by shifting the
slide switch (3).
Drilling
Impact drilling
Work at a higher rotational speed in impact drilling
mode.
Impact drilling and drilling only in clock-
wise operation.
8.5 Selection of direction of rotation
Do not activate the rotation selector
switch (9) unless the motor has
completely stopped.
Selecting the direction of rotation:
R=Clockwise
L = Counter-clockwise
The drill chuck must be firmly screwed
onto the spindle and the safety screw
inside the drill chuck must be firmly tightened
with a screwdriver. (Caution, left-handed
thread!)
If rotated counter-clockwise (e.g. when
screwing) it could otherwise become loose.
8.6 Switching pulse function on and off
(depending on equipment)
Do not work for long periods with
pulse function switched on!
(The motor can overheat.)
Actuate rocker switch for pulse function (4).
0 = pulse function switched off
= pulse function switched on
8.7 Tool change
Keyless chuck Futuro Plus (12)
(equipment-dependent)
See illustrations, page 3.
Insert tool. Grip the retaining ring (a) firmly and,
with the other hand, turn sleeve (b) towards GRIP,
ZU", until the mechanical resistance which can be
felt is overcome.
Caution! The chuck is not yet fully tightened!
Keep turning
(there is a clicking" sound while
turning)
, until further turning is no longer possible -
only now
is the tool
securely
tightened.
When using soft bit shanks, it may be necessary to
retighten the chuck after a short period of
operation.
Opening the drill chuck:
Grip the retaining ring (a) firmly and, with the other
hand, turn the sleeve (b) towards AUF, RELEASE".
Note:
The ratchet sound which can possibly be
heard after opening the drill chuck, is functional and
is switched off by a reverse rotation of the sleeve.
If the tool is fitted very tight:
Unplug. Hold drill chuck with an open end spanner
at the jaw opening and turn sleeve (b) firmly
towards "AUF, RELEASE".
8.8 Tool change with a geared chuck (10)
(equipment-dependent)
See illustrations, page 3.
Clamping tool:
Insert the tool and use the chuck key (11) to
uniformly clamp tight in all 3 bores.
Removing tool:
Open the geared chuck (10) with chuck key (11)
and remove tool.

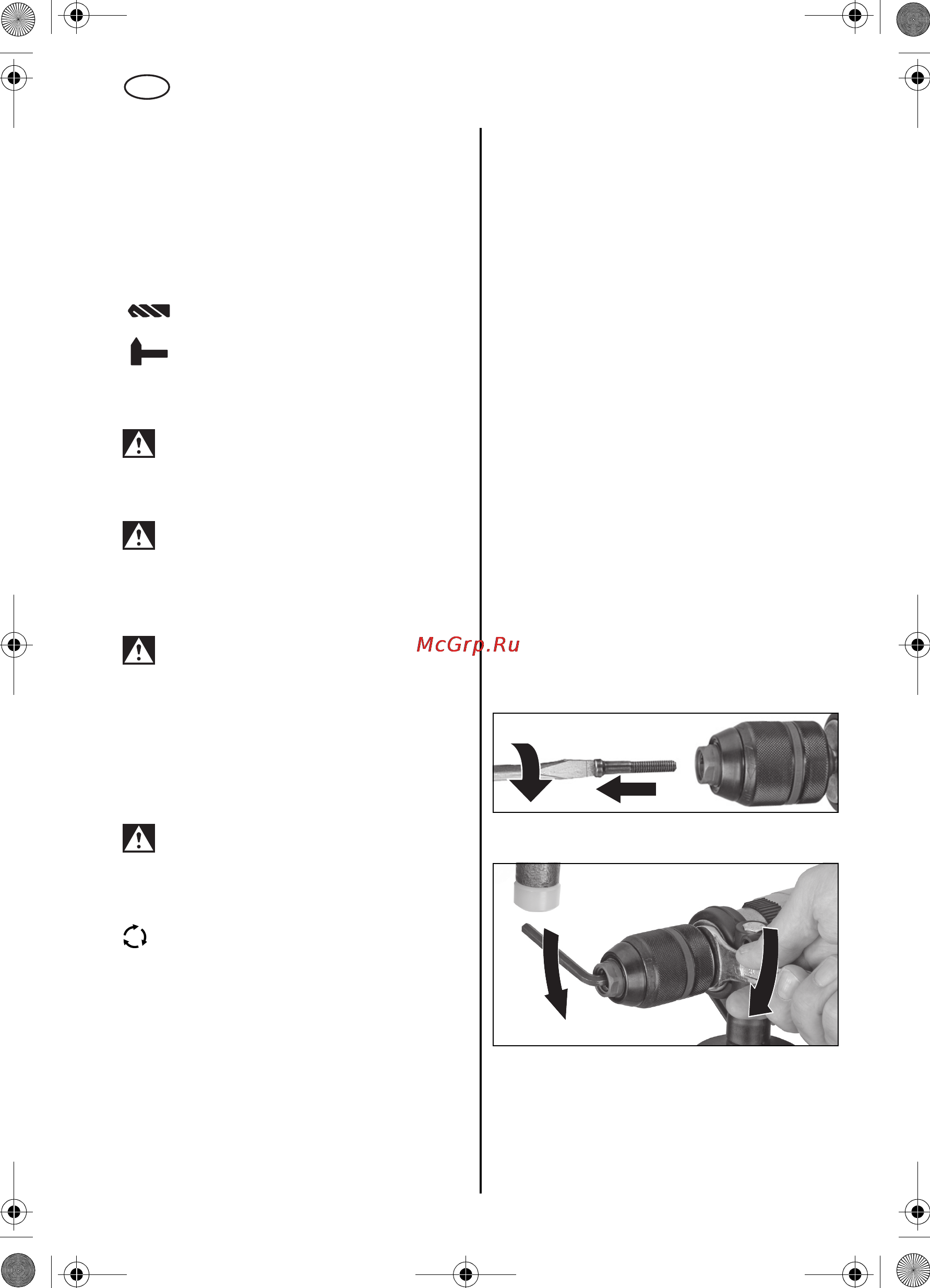

8.9 Removing the chuck
Undo the locking screw. Caution left-handed
thread!
Hold the drill spindle firmly with an open-ended
spanner. With a light blow from a rubber hammer,
release the chuck from the clamped hexagon
spanner and unscrew it.
17026872_0108 SBE 610.book Seite 12 Dienstag, 29. Januar 2008 11:20 11
