4
4 EN

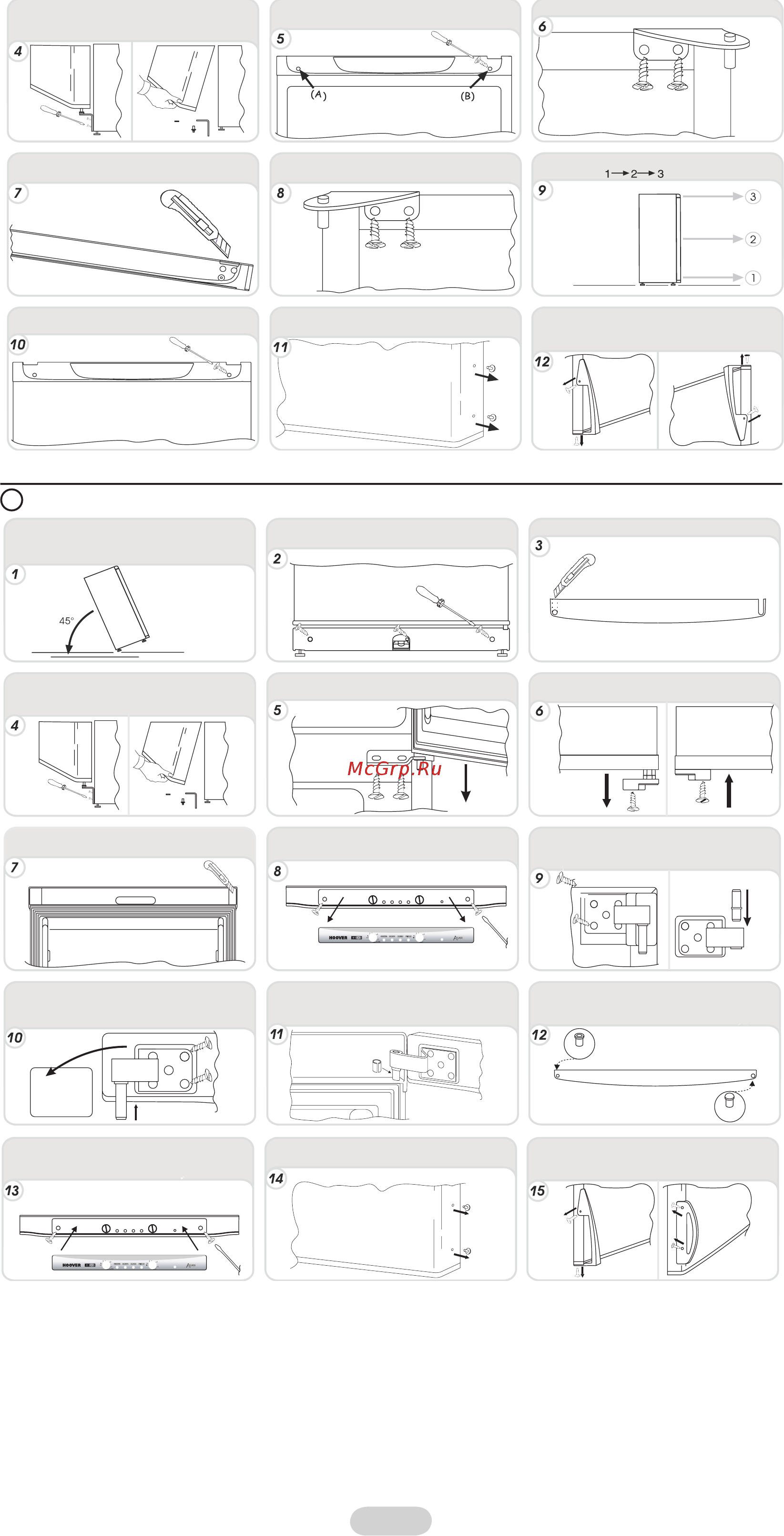

Take off the bottom right-hand hinge by removing
the screws, pin and washers, then remove the
lower door.
Mark and break the left-hand slot on the panel, in
the insert area.
Flip the top left-hand hinge found in the
accessories kit.
Fit the panel, and secure with the screws and
caps.
To reverse the handles: remove the outer caps
from the right-hand side of the doors.
Remount the hinges and doors working from
bottom to top,
Unscrew the handles from the left-hand side and
move them to the right-hand side, then position
the outer caps on the left-hand side of the doors.
Remove the caps (A) and (B), loosen the screws
and partially remove the panel.
Unscrew the right hinge.
Place the appliance on the floor or at a 45° angle,
as it is necessary to work on the bottom of the
appliance.
Mark and break the left-hand slot on the panel, in
the insert area.
With another panel type, break the plastic
membrane and screw the hinge on the left-hand
side of the panel.
Screw the panel back on and place the outer
label back on. Put the appliance in the upright
position and wait two hours before turning it on.
To reverse the handles: remove the outer caps
from the right-hand side of the doors.
Unscrew the handles from the left-hand side and
remount them on the right-hand side of the product.
Place the plugs on the left-hand side.
Insert the pin in the hinge and the spacer in the
insert. Reassemble the hinges and doors
working from bottom to top.
Remove the plug on the left-hand side and insert
it on the right-hand side of the central and lower
inserts. Invert the bushing in the lower insert.
With this panel type, remove the label and screws,
then partially remove the panel.
Remove the screws from the top right hinge and
invert the position of the pin, then reassemble it on
the left-hand side.
Remove the screws from the central hinge and
remove the top door.
Take off the bottom right-hand hinge by removing
the screws, pin and washers, then remove the
lower door.
Unscrew the hinge from the fridge door and mount
the one supplied on the other side.
Remove the lower plinth by pulling out the
3 protective plugs and by loosening the screws.
Drill the plinth on the marked left hand-side area.
1) break the
plastic membrane
2) Insert the pin
spacer
bushing
plug
Put the appliance in an upright position and wait two hours before turning it on.
