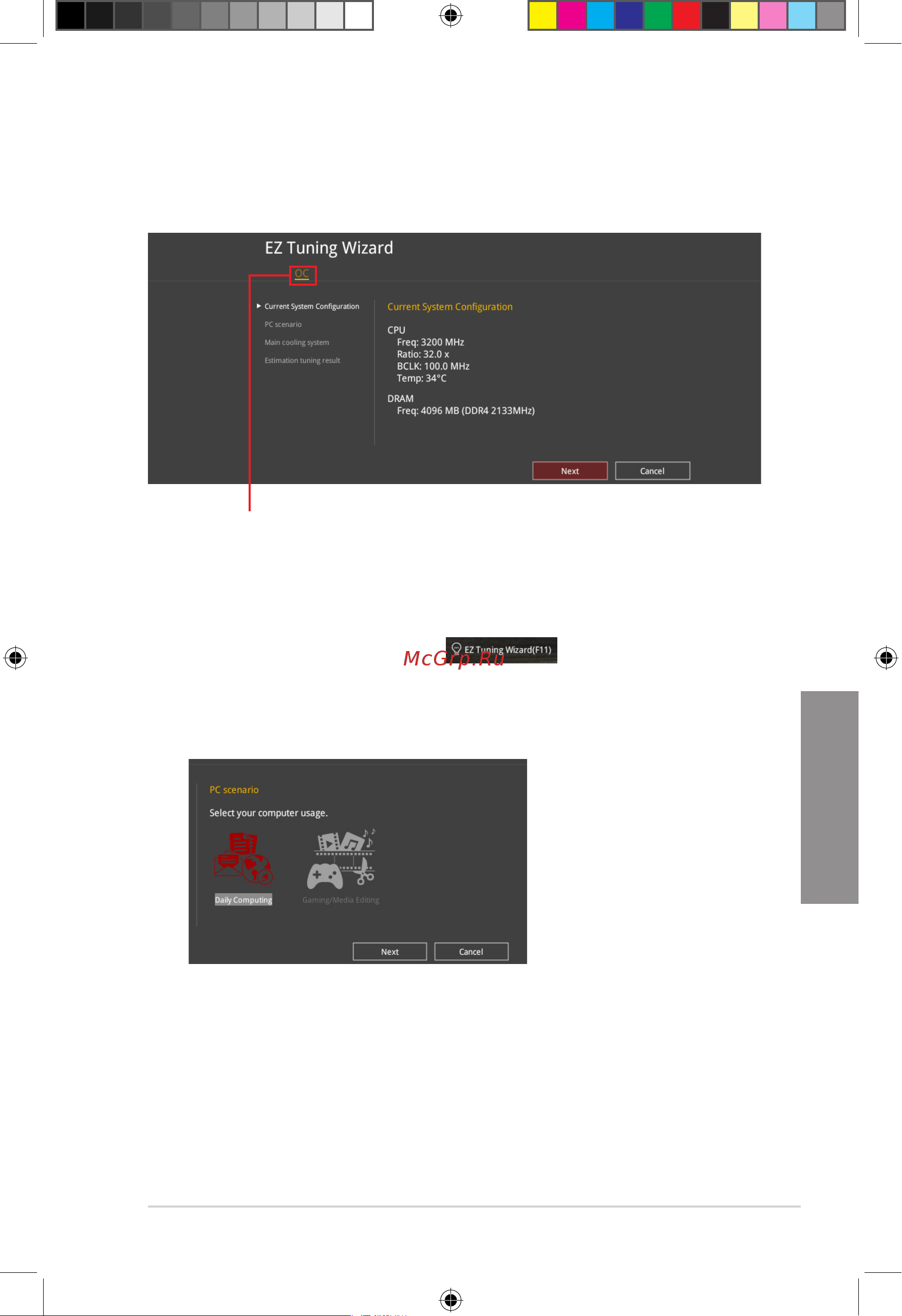

![Asus ROG STRIX B450-I GAMING [61/92] Oc tuning](/views2/1769613/page61/bg3d.png)
ROG STRIX B450-I GAMING
3-9
Chapter 3
3.2.4 EZ Tuning Wizard
EZ Tuning Wizard allows you to easily overclock your CPU and DRAM, computer usage, and
CPU fan to their best settings.
OC Setup
OC Tuning
To start OC Tuning:
1. Press <F11> on your keyboard or click from the BIOS screen to open
EZ Tuning Wizard screen.
2. Click OC
then click Next.
3. Select a PC scenario Daily Computing or Gaming/Media Editing, then click Next.
E14337_ROG_STRIX_B450-I_GAMING_UM.indb 9 2018-06-15 18:28:38
