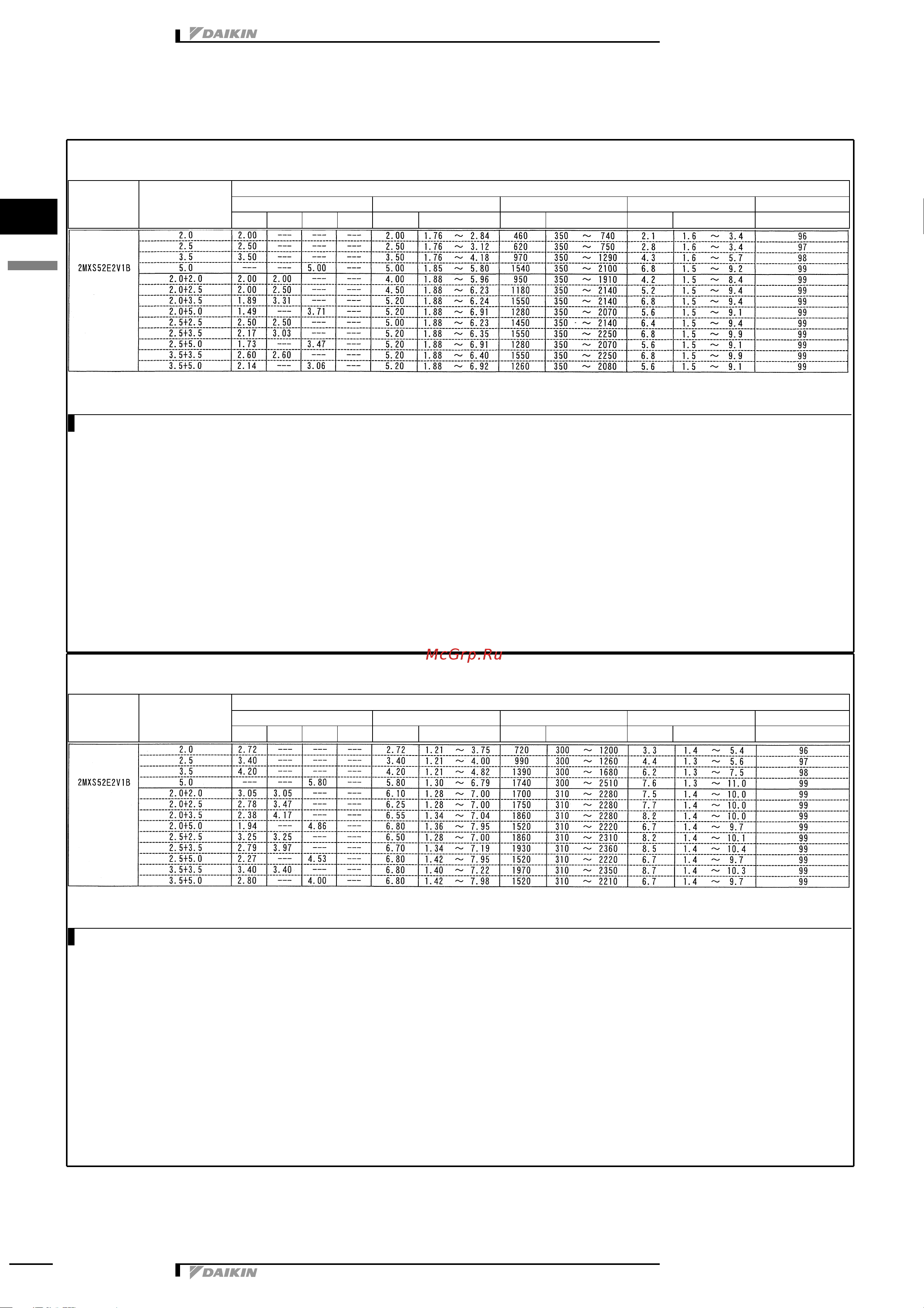

• Outdoor Units • R410A • MXS-DAVMB_E2V1B_E7V3B
1
5
• Split Sky Air • Outdoor Units21
5 Capacity tables
5 - 1 Combination table
2MXS52E
Cooling [50Hz 230V]
Outdoor unit Combination of
indoor unit
Capacity of each indoor unit
Each capacity (kW) Total capacity (kW) Total input (W) Total current (A) Power factor %
A Room B Room C Room Rating
(Min.∼max.)
Rating
(Min.∼max.)
Rating
(Min.∼max.) Rating
3D052266-6
NOTES
1 Cooling capacity is based on 27°CDB / 19°CWB (indoor temperature), 35°CDB (outdoor temperature).
Heating capacity is based on 20°CDB (indoor temperature), 7°CDB/6°CWB (outdoor temperature).
2 The total ability of connected a indoor unit is up to 8.5 kW
3 It is impossible to connect the indoor unit for one room only.
4 The above is the value for connecting with the following indoor units.
2.0, 2.5, 3.5kW class: wall mounted D series
5.0kW class: wall mounted E series
2MXS52E
Heating [50Hz 230V]
Outdoor unit Combination of
indoor unit
Capacity of each indoor unit
Each capacity (kW) Total capacity (kW) Total input (W) Total current (A) Power factor %
A Room B Room C Room Rating
(Min.∼max.)
Rating
(Min.∼max.)
Rating
(Min.∼max.) Rating
3D052266-7
NOTES
1 Cooling capacity is based on 27°CDB / 19°CWB (indoor temperature), 35°CDB (outdoor temperature).
Heating capacity is based on 20°CDB (indoor temperature), 7°CDB/6°CWB (outdoor temperature).
2 The total ability of connected a indoor unit is up to 8.5 kW
3 It is impossible to connect the indoor unit for one room only.
4 The above is the value for connecting with the following indoor units.
2.0, 2.5, 3.5kW class: wall mounted D series
5.0kW class: wall mounted E series
