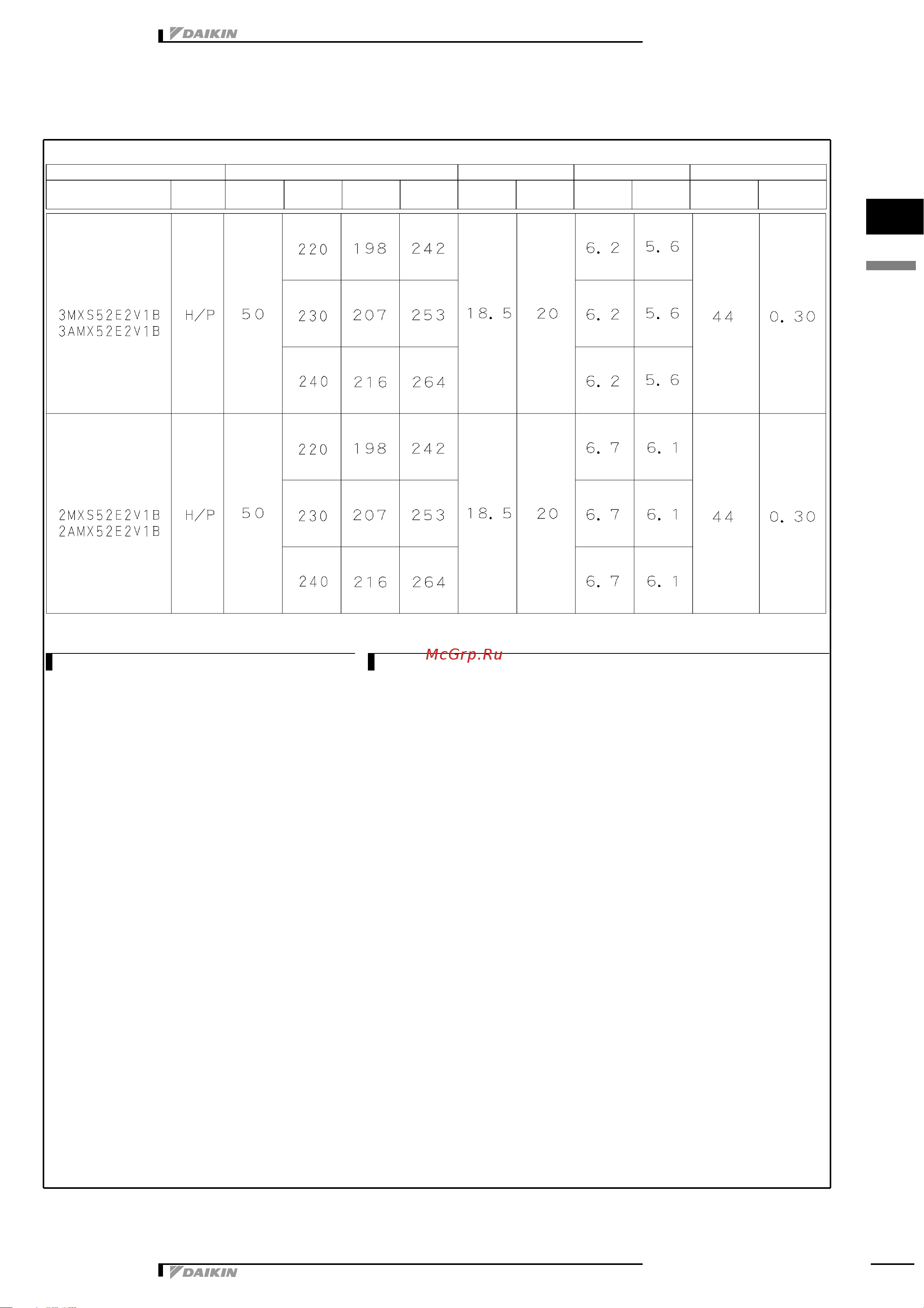

Daikin 5MXS90E7V3B [6/73] Electrical data
![Daikin 5MXS90E7V3B [6/73] Electrical data](/views2/1770263/page6/bg6.png)
3
1
3
• Split Sky Air • Outdoor Units 6
• Outdoor Units • R410A • MXS-DAVMB_E2V1B_E7V3B
3 Electrical data
3D052807
SYMBOLS
MCA : Min. Circuit Amps (A)
MFA : Max. Fuse Amps (See note 6). (A)
MSC : MSC means the max. current during the starting of
compressor. (A)
RLA : Rated Load Amps (A)
OFM : Outdoor Fan Motor
IFM : Indoor Fan Motor
FLA : Full Load Amps (A)
W : Fan Motor Rated Output (W)
NOTES
1. RLA is based on the following conditions:
Cooling
Indoor temp.: 27°CDB/19.0°CWB
Outdoor temp. : 35°CDB
2. Voltage range
Units are suitable for use on electrical systems where voltage supplied to unit terminals is
not below or above listed operation range limits
3. Maximum allowable voltage variation between phases is 2%
4. MCA represents maximum input current.
MFA represents capacity which may accept MCA
5. Select wire size based on the larger value of MCA.
6. MFA is used to select the circuit breaker and the ground fault circuit interrupter
(earth leakage circuit breaker)
7. For more details concerning conditional connections, see
http://extranet.daikineurope.com, select ’’E-Data Books’’. Finally, click on the document title
of your choice.
3MXS52E
Model Units
Power supply
Comp. OFM
Outdoor
H/P
C/D
Hz Volts Min. Max. MCA MFA MSC RLA W FLA
