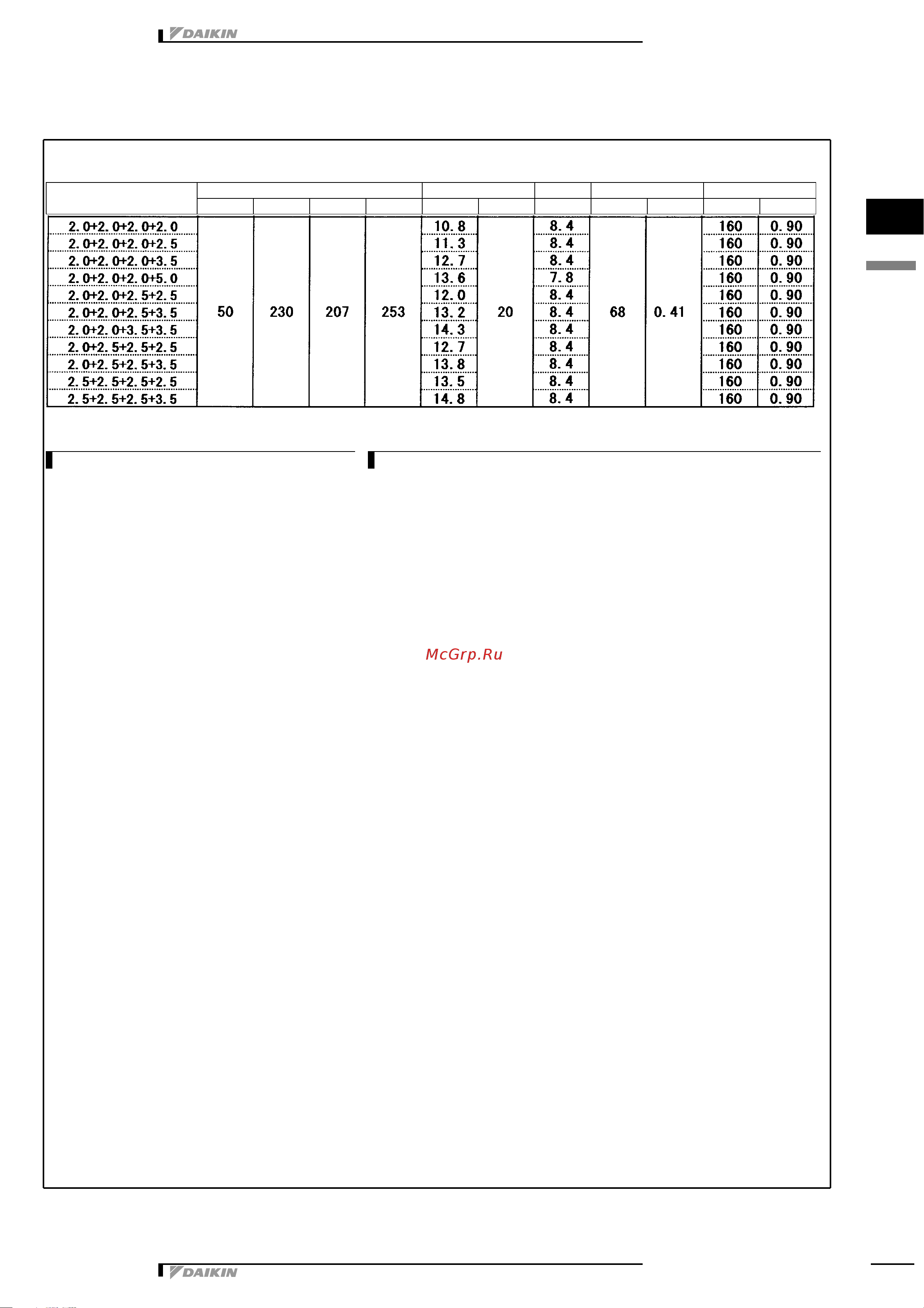

Daikin 5MXS90E7V3B [8/73] Electrical data
![Daikin 5MXS90E7V3B [8/73] Electrical data](/views2/1770263/page8/bg8.png)
3
1
3
• Split Sky Air • Outdoor Units 8
• Outdoor Units • R410A • MXS-DAVMB_E2V1B_E7V3B
3 Electrical data
SYMBOLS
MCA : Min. Circuit Amps (A)
MFA : Max. Fuse Amps (A)
RLA : Rated Load Amps (A)
OFM : Outdoor Fan Motor
IFM : Indoor Fan Motor
FLA : Full Load Amps (A)
W : Fan Motor Rated Output (W)
NOTES
1. RLA is based on the following conditions:
Power supply: 50Hz 230V
Cooling
Indoor temp.: 27°CDB/19.5°CWB
Outdoor temp. : 35°CDB
Heating
Indoor temp.: 20°CDB
Outdoor temp.: 7°CDB/6°CWB
2. Maximum allowable voltage unbalance between phases is 2%
3. Select wire size based on the larger value of MCA.
4. Instead of fuse, use circuit breaker
5. The above is the value for connecting with the following indoor units.
2.0, 2.5, 3.5kW class: wall mounted C series
5.0, 6.0kW class: wall mounted B series
6. Be sure to install an earth leak detector. (One that can handle higher harmonics.)
(This unit uses an inverter, which means that it must be used an earth leak detector
capable handling high harmonics in order to prevent malfunctioning of the earth leak
detector.)
7. For more details concerning conditional connections, see
http://extranet.daikineurope.com, select ’’E-Data Books’’. Finally, click on the document
title of your choice.
4MXS68E
Cooling (50Hz 230V)
Combination
Units
Power supply
Comp. OFM IFM
Hz Volts Min. Max. MCA MFA RLA W FLA W FLA
3D050192-6B
