Asus ZenWiFi AX (XT8) [19/156] Using the network map
![Asus ZenWiFi AX (XT8) [19/156] Using the network map](/views2/1770915/page19/bg13.png)
19
3 Conguring the General 3 Conguring the General
settingssettings

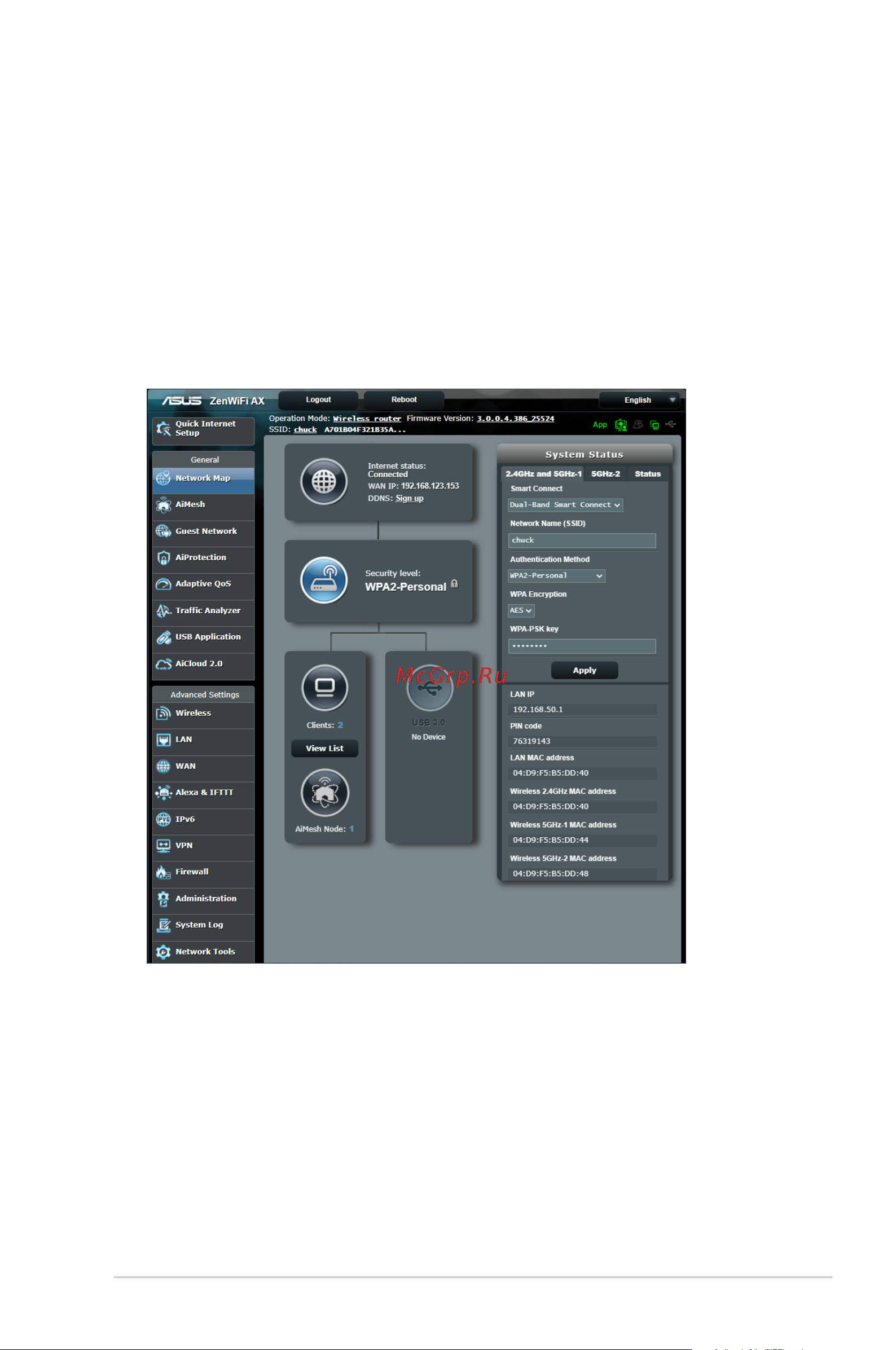

3.1 Using the Network Map
Network Map allows you to congure your network’s security
settings, manage your network clients, and monitor your USB
device.
