Asus ZenWiFi AX (XT8) [38/156] Traffic analyzer

NOTE: Packets from the Internet are evenly transmitted to the wired

and wireless devices.

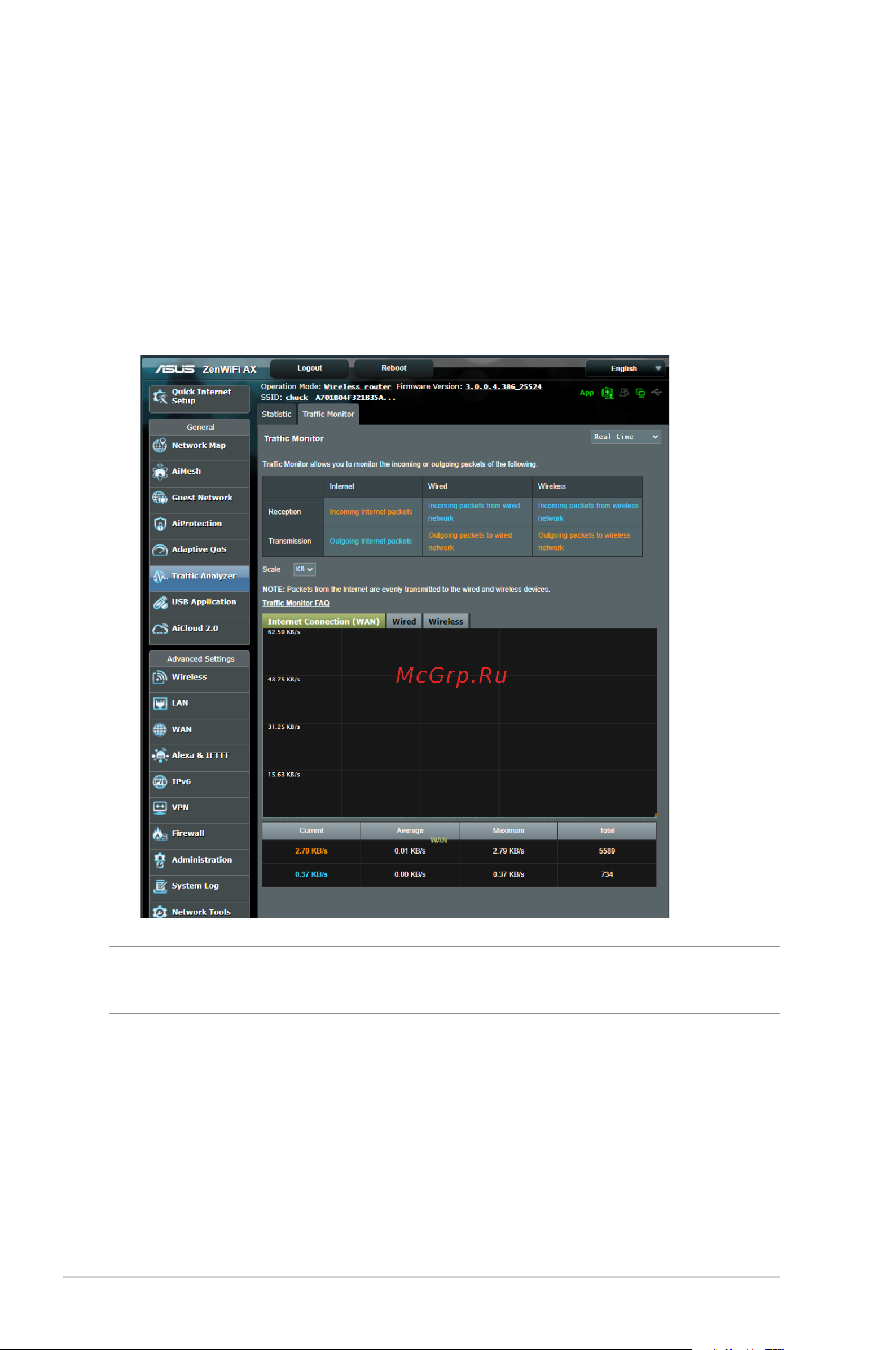

3.5 Trac Analyzer

The trac monitor feature allows you to access the bandwidth

usage and speed of your Internet, wired, or wireless networks. It

allows you to monitor network trac in real-time or on a daily

basis. It also oers an option to display the network trac within

the last 24 hours.
