7

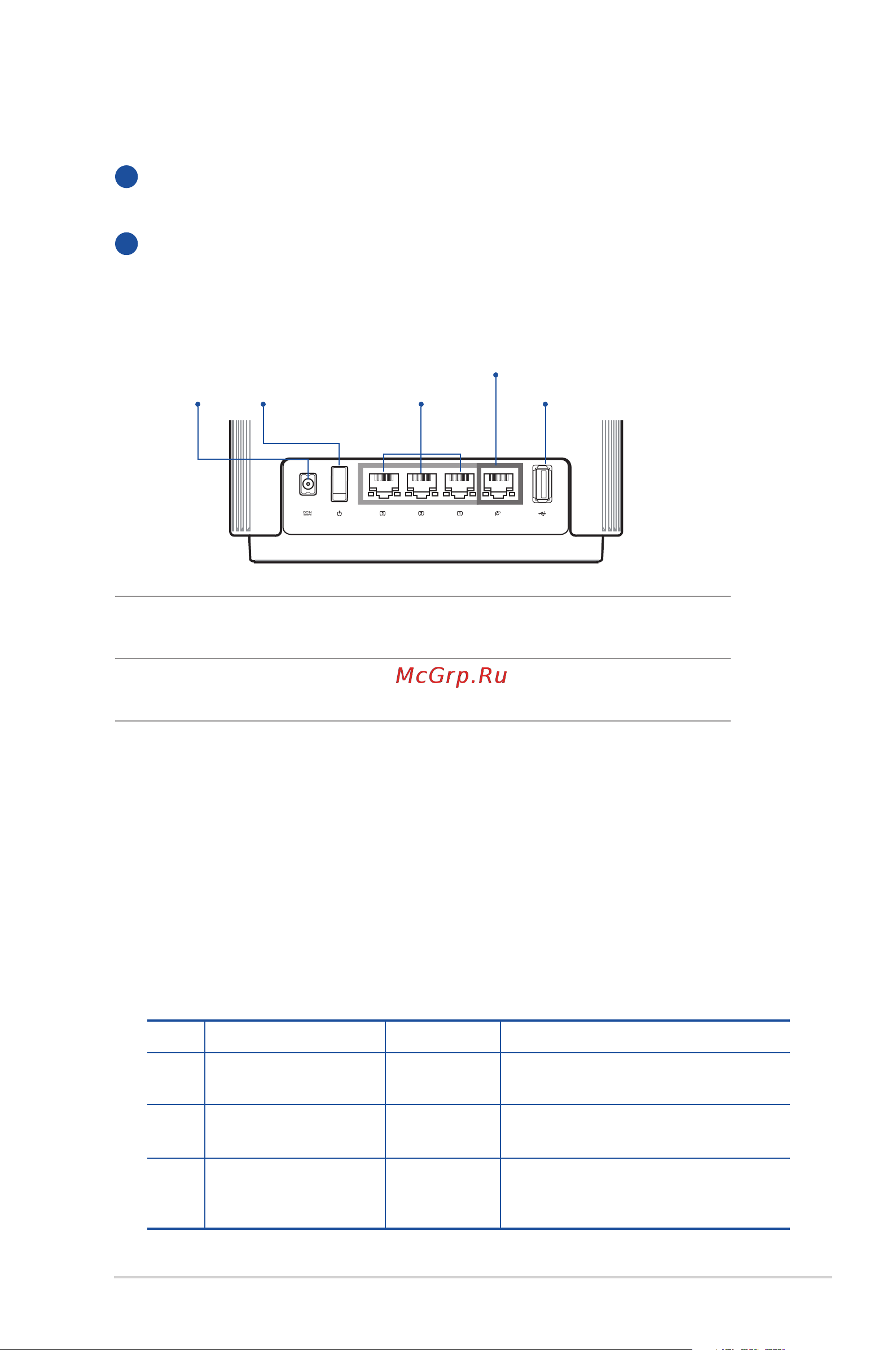

1.3 Your wireless router
1
Plug the adapter into the DCIN port, and press the power
button.
2
The power LED will light up when your hardware is ready.
Button and Port Explanations
2.5G / 1G WAN port
Connect your optical modem to this port with a network cable.
LAN ports 1-3
Connect your PC to a LAN port with a network cable.
Power buttonDCIN port LAN ports 1-3 USB 3.0/2.0 port
2.5G / 1G WAN port
LED indications during the process of using 160MHz for the
backhaul connection
The process starts one minute after the node has connected to
the main router with a strong backhaul connection. During this
process, the LED indicator of the router keeps static green. The
network is currently available for connection, but the performance
might be limited.
Step Router status Router LED Time length
1 Checking
connection strength
Static green 1 minute
2 Monitoring radar
signal
Static green 1 minute (Obey FCC Regulations)
10 minutes (Obey CE Regulations)
3 Using 160MHz for
the backhaul
connection
Static white
