Asus ZenWiFi AX (XT8) [51/156] General

4 Conguring the Advanced 4 Conguring the Advanced

SettingsSettings

4.1 Wireless

4.1.1 General

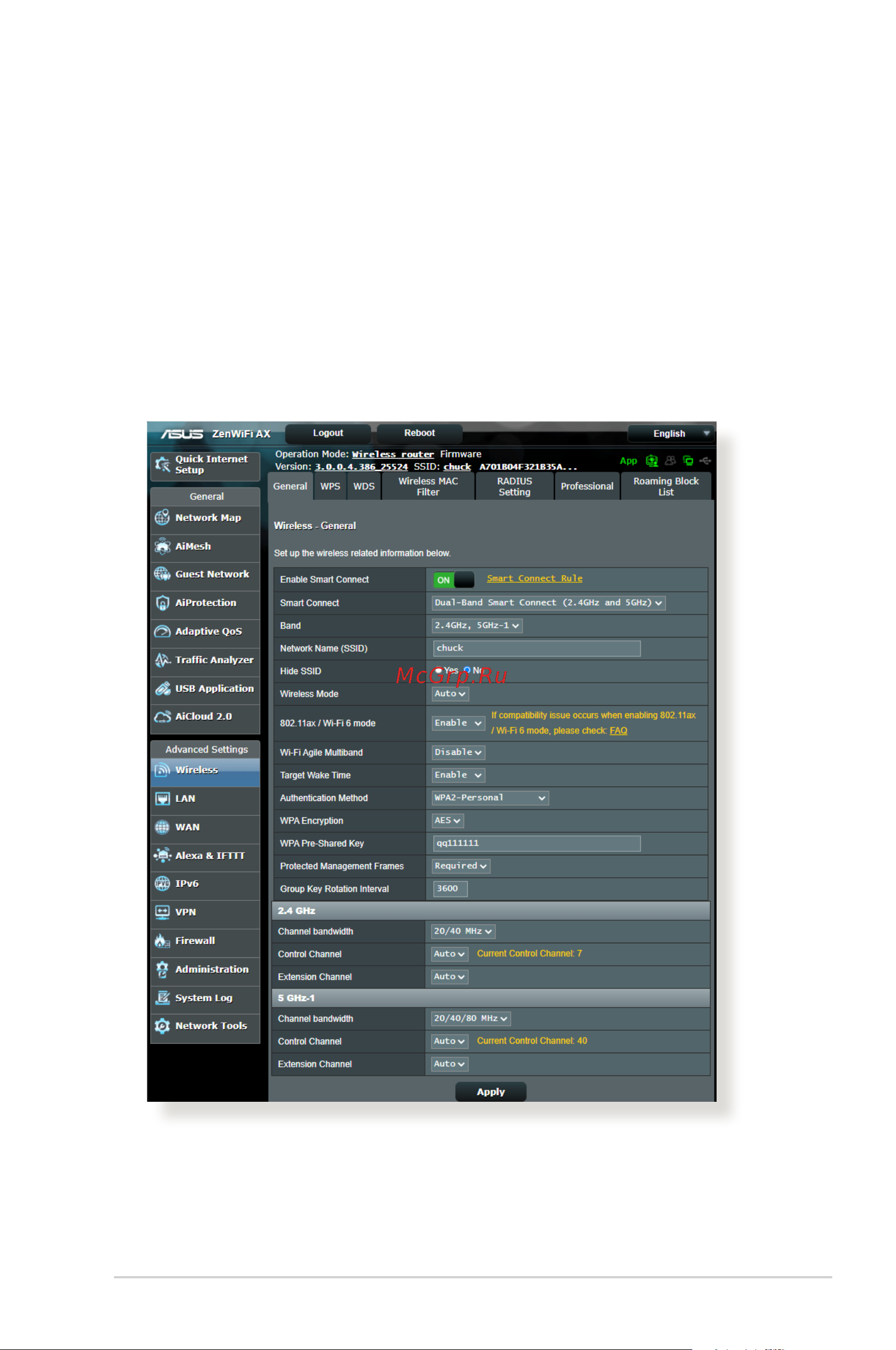

The General tab allows you to congure the basic wireless

settings.
