5. PRESENTATION
• hilight zone :
a metallic conductor strip is spread uniformly over
the whole surface unit. It is effective within 3 seconds and is
suitable for steady, homogeneous and also sustained cooking.
The glass-ceramic hob benefits from greater heat output which
is generated by the hilight cooking zones thereby accelerating the
cooking process. Modifications to the design of the hob have not
affected the capacity of the glass to withstand high temperatures,
but they have improved controllability.
With the "Sprinter" facility, reduced cooking times of up to 15%
can be achieved, depending upon the method of cooking and the
type of saucepans being used.

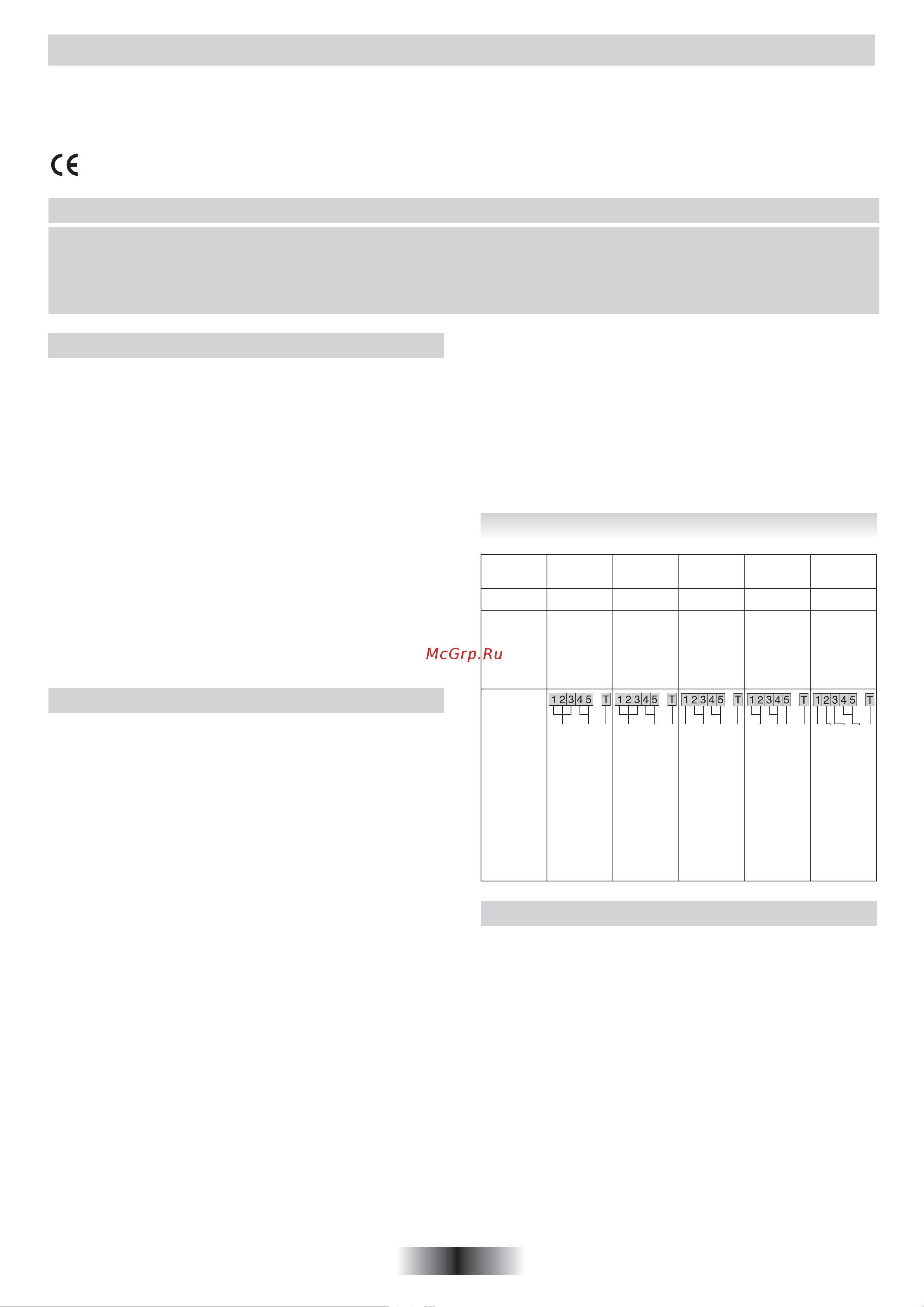

ELECTRICAL CONNECTION
• The hob is fitted with a power supply cord which allows it
to be connected only to a power supply of 220-240 V between
phases or between phase and neutral :
- connect to a socket, to choose the correct fuse,
you must refer on the table.
It is however possible to connect the hob to :
. Three phases 220-240 V3~
OR
. Three phases 380-415 V3N~
3 G 2,5 mm2
H05RR-F,
H05VV-F,
H05V2V2-F
3 G 2,5 mm
2
H05RR-F,
H05VV-F,
H05V2V2-F
4 G 2,5 mm
2
H05RR-F,
H05VV-F,
H05V2V2-F
4 G 2,5 mm
2
H05RR-F,
H05VV-F,
H05V2V2-F
5 G 1,5 mm
2
H05RR-F,
H05VV-F,
H05V2V2-F
Monophase
220-240V~
Two phases
220-240V2~
Two phases
380-415V2N~
Three phases
220-240V3~
Three phases
380-415V3N~
20 A 20 A 20 A 20 A 16 AFUSE
CABLE
AREA
TYPE
PH Phase
shunt 1-2
shunt 2-3
N Neutral
shunt 4-5
T Earth
CONNEC-
TION TO
THE
TERMIMAL
BLOCK
PH N T PH PH T PH N TPH PHPH PH T TPHPH PH N
PH Phase
shunt 1-2
shunt 2-3
PH Phase
shunt 4-5
T Earth
PH Phase
PH Phase
shunt 2-3
N Neutral
shunt 4-5
T Earth
PH Phase
shunt 1-2
PH Phase
shunt 3-4
PH Phase
T Earth
PH Phase
PH Phase
PH Phase
NNeutral
shunt 4-5
T Earth
READ THE INSTRUCTIONS BOOKLET CAREFULLY TO MAKE THE MOST OF YOUR HOB.
We recommend you keep the instructions for installation and use for later reference, and before installing the hob, note its serial number
in case you need to get help from the after sales service.
1. GENERAL WARNINGS
We are constantly striving to improve product quality and as such may modify appliances to incorporate the latest technical improvements.
Appliance complies with European Directives 73/23/EEC and 89/336/EEC, replaced by 2006/95/EC and 2004/108/EC, and
subsequent amendments.
Installing a domestic appliance can be a complicated operation which if not carried out correctly, can seriously affect consumer
safety. It is for this reason that the task should be undertaken by a professionally qualified person who will carry it out in
accordance with the technical regulations in force. In the event that this advice is ignored and the installation is carried out
by an unqualified person, the manufacturer declines all responsibility for any technical failure of the product whether or not
it results in damage to goods or injury to individuals.
3. BUILT-IN
The furniture in which your hob will be installed and all adjacent
furniture, should be made from materials that can withstand high
temperatures. In addition, all decorative laminates should be fixed
with heat-resistant glue.
Installation (Fig. B / D):
• A watertight seal is supplied with the hob.
Before fitting:
- turn the hob upside down, with the glass surface facing downwards.
Make sure the glass is protected.
- fit the seal round the hob.
- make sure that it is correctly fitted to avoid any leakage into the
supporting cabinet.
• Leave a gap of at least 5 cm between the appliance and the
vertical sides of the adjacent furniture.
• If, when installing the hob, the lower hob face is adjacent to an
area normally accessible when handling or cleaning, fit a partition
1 cm below the base of the hob to avoid any risk of scorching
or damage.
2. INSTALLATION
"The installation must conform to the standard directives."
The manufacturer declines all responsibility for any damage that
may be caused by unsuitable or unreasonable use.
Warning:
we cannot be held responsible for any incident or its
consequences that may arise during the use of an appliance
not linked to the earth, or linked to an earth whose continuity
is defective.
• Always check before any electrical operation, the supply tension
shown on the electricity meter, the adjustment of the circuit-
breaker, the continuity of the connection to earth to the installation
and that the fuse is suitable.
• The electrical connection to the installation should be made via
a socket with a plug with earth, or via an omnipole cut-out switch.
If the appliance has a socket outlet, it must be installed so that
the socket outlet is accessible.
• The yellow/green wire of the power supply cable must be
connected to the earth of both power supply and appliance
terminals.
• Any queries regarding the power supply cord should be referred
to After Sales Service or a qualified technician.
4. ELECTRICAL CONNECTION
6 GB-IE
