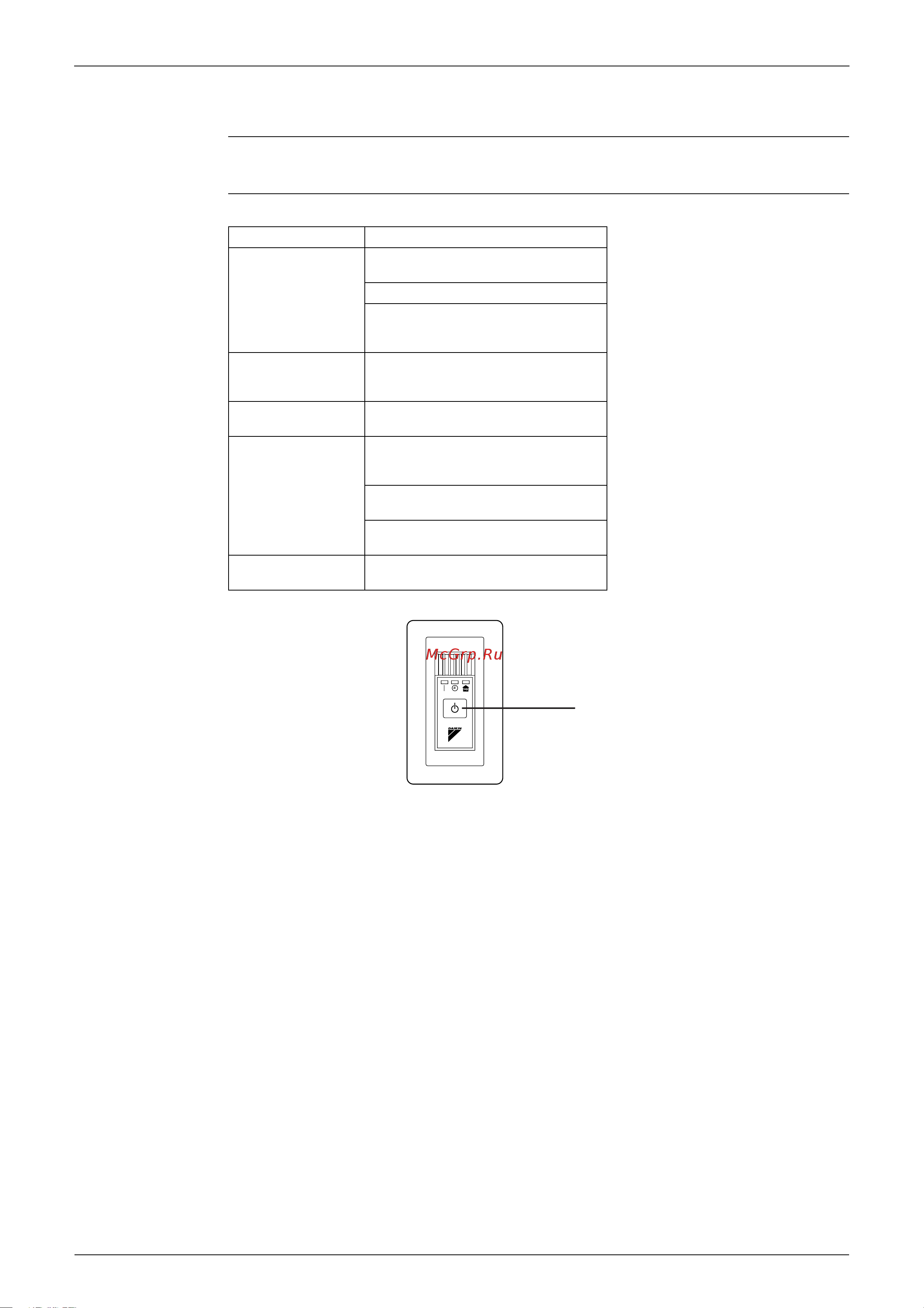

Forced Cooling Operation Mode SiBE07-618_D
128 Trial Operation and Field Settings
2. Forced Cooling Operation Mode
Outline Forced cooling operation mode includes only forced cooling.
Detail
Item Forced Cooling
Conditions 1) The outdoor unit is not abnormal
and not in the 3-minute standby mode.
2) The outdoor unit is not operating.
The forced
cooling
operation is
allowed when the above both
conditions are met.
Start Press the forced
cooling
operation
ON/OFF button (SW1) on the indoor
unit for 5 seconds.
Command
frequency
66 Hz
End 1) Press the forced
cooling
operation
ON/OFF button (SW1) on the indoor
unit again.
2) Press the ON/OFF button on the
remote controller.
3) The operation ends automatically
after 15 minutes.
Others The protection functions are prior to all
others in the forced
cooling
operation.
ON/OFF button
(SW1)
(R14086)
