Main Functions SiBE07-618_D
24 Function and Control

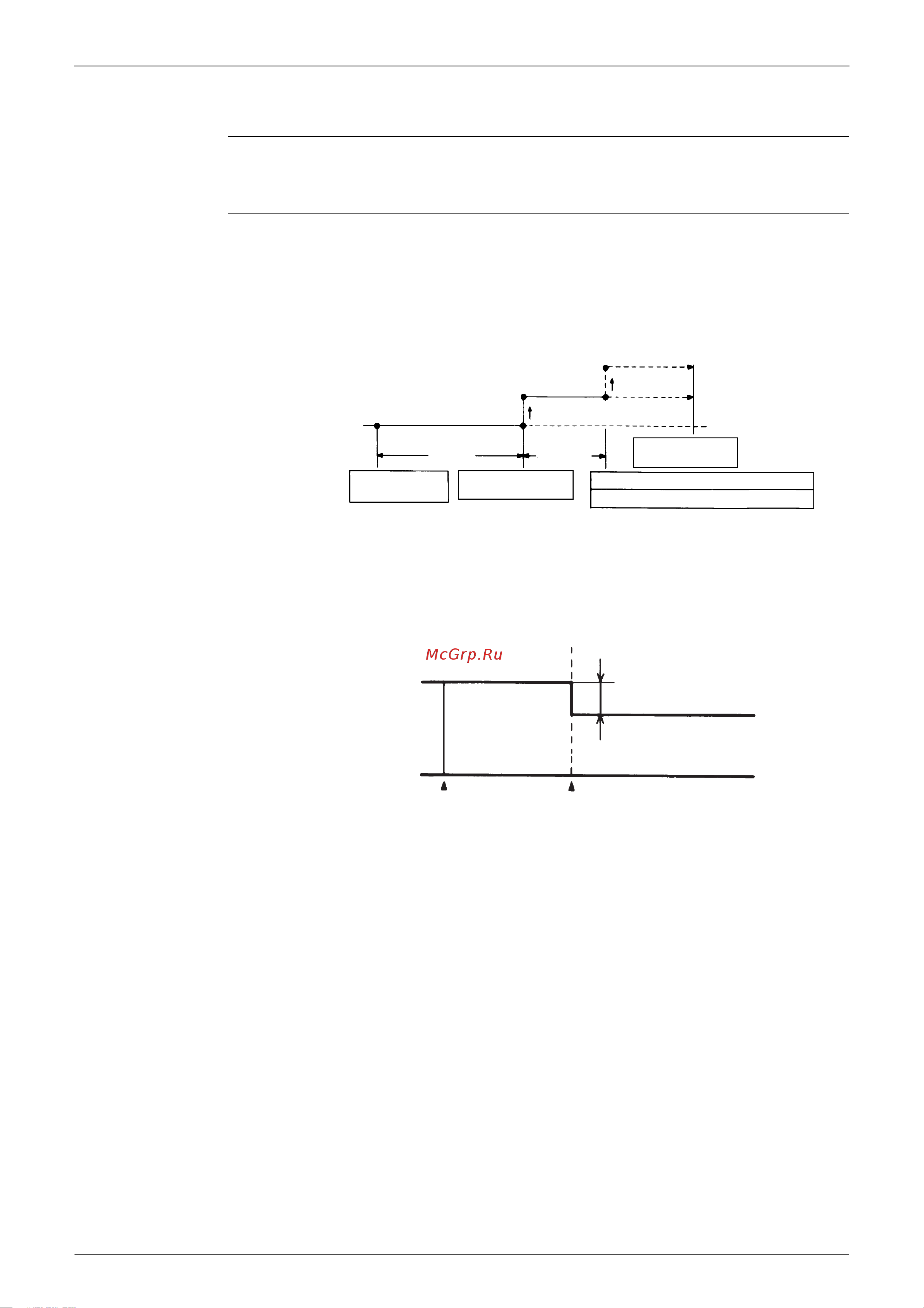

1.7 NIGHT SET Mode
Outline When the OFF timer is set, the NIGHT SET Mode is automatically activated. The NIGHT SET
Mode keeps the airflow rate setting.
Detail The NIGHT SET Mode continues operation at the target temperature for the first one hour, then
automatically raises the target temperature slightly in the case of cooling, or lowers it slightly in
the case of heating. This prevents excessive cooling in summer and excessive heating in winter
to ensure comfortable sleeping conditions, and also conserves electricity.
Cooling
Heating
0.5˚C
0.5˚C
(R12237)
+0.5˚C
(A)+0.5˚C temperature shift
(B)
Target temperature remains the same
NIGHT SET Mode ON
TIMER operation
Operation stops
at the set hours
1 hour
30 minutes
temperature shift
(A): When the outdoor temperature is normal and the room
temperature is at the set temperature.
(B): When the outdoor temperature is high (27˚C or higher).
Target temperature
(B)
(A)
2˚C
(R10871)
Target temperature
1 hour later
Timer operation
Night Set Mode ON
