Field Settings SiBE07-618_D
130 Trial Operation and Field Settings
4. Field Settings

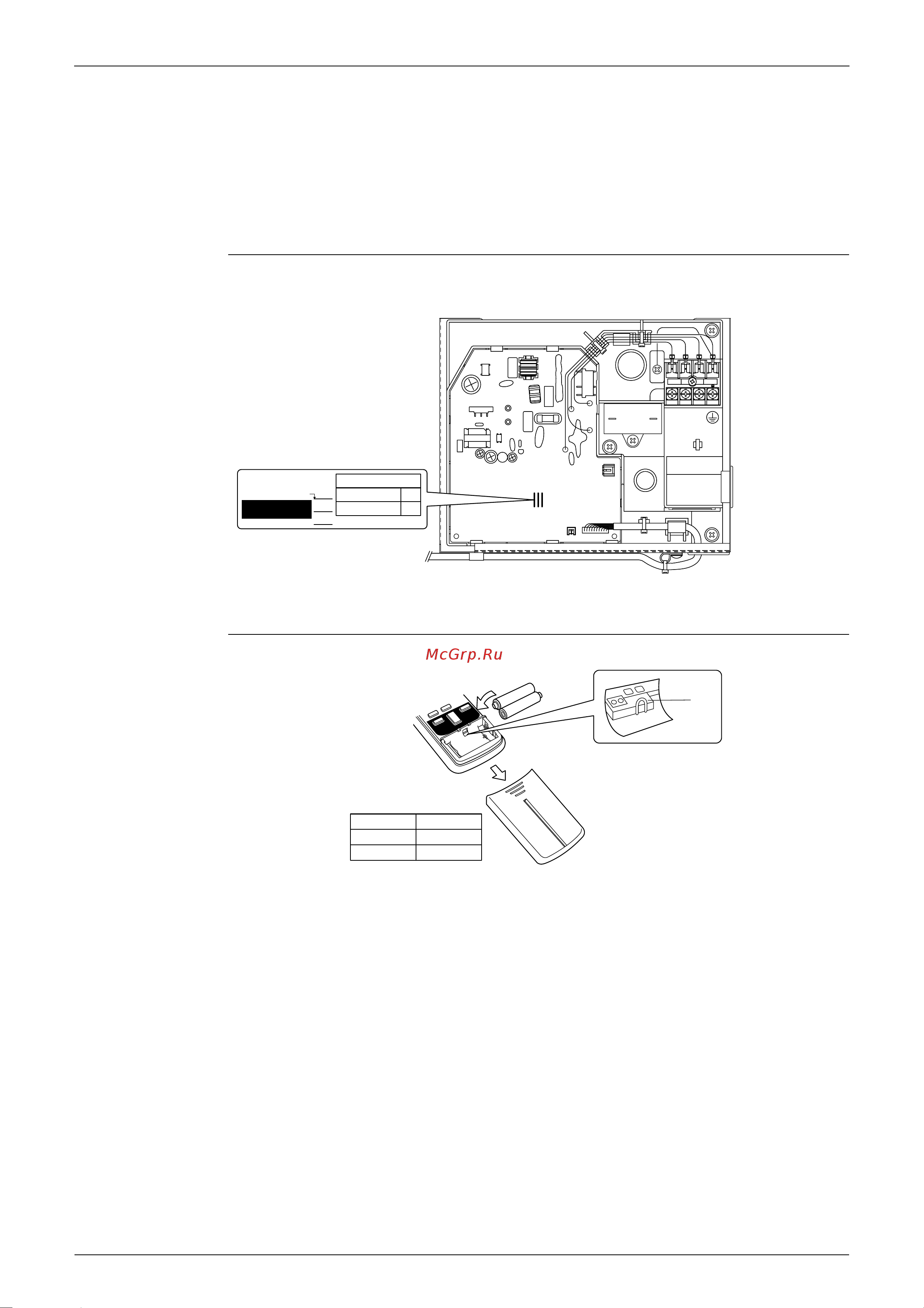

4.1 When 2 Units are Installed in 1 Room
When 2 indoor units are installed in 1 room, 1 of the 2 pairs of indoor unit and wireless remote
controller can be set for different addresses.
Both the indoor unit PCB and the wireless remote controller need alteration.
Indoor Unit PCB
Cut the jumper JA on PCB.
Wireless Remote
Controller
Cut the jumper J4.
ADDRESS: JA
CUT
EXIST
1
2
ADDRESS
JA
JB
JC
(R12240)
J4 ADDRESS
EXIST 1
CUT 2
J4
(R12241)
