SiBE07-618_D Operation Manual
Operation Manual 45

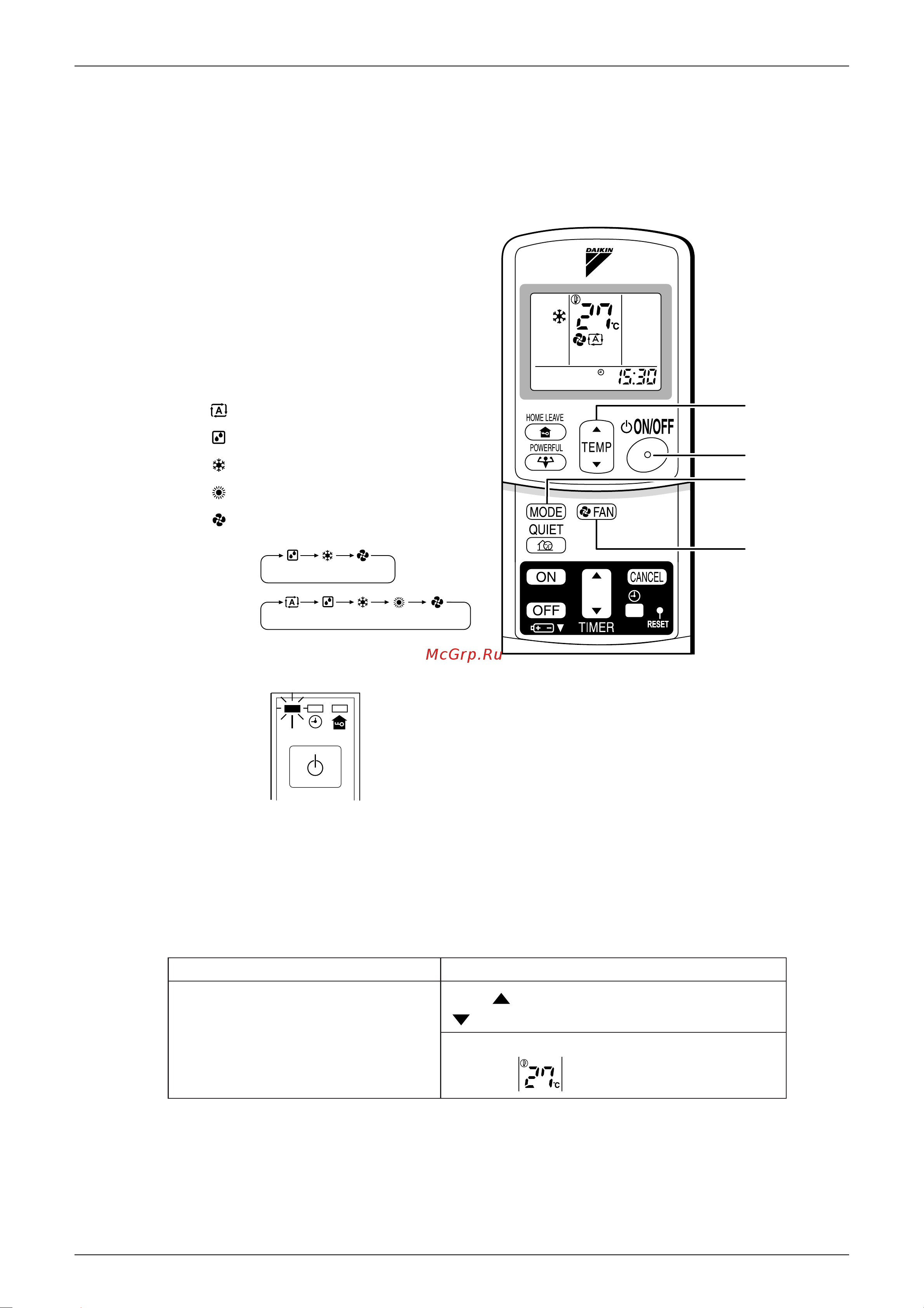

2.2 AUTO · DRY · COOL · HEAT · FAN Operation
10
AUTO · DRY · COOL · HEAT · FAN Operation
: AUTO
: DRY
: COOL
: HEAT
:FAN
DRY or FAN mode AUTO or COOL or HEAT mode
The temperature setting is not variable.
Set to the temperature you like.
2, 3
1
4
5
<FDKS>
<FDXS>
The air conditioner operates with the operation mode of your choice.
From the next time on, the air conditioner will operate with the
same operation mode.
1. Press “MODE selector button”
and select a operation mode.
2. Press “ON/OFF button”.
3. Press “ON/OFF button” again.
4. Press “TEMPERATURE adjustment button”.
•
Each pressing of the button advances the
mode setting in sequence.
•
The OPERATION lamp lights up.
•
Then OPERATION lamp goes off.
To start operation
To stop operation
To change the temperature setting
Press “ ” to raise the temperature and press
“ ” to lower the temperature.
