SiBE07-618_D Service Check Function
Service Diagnosis 57
Check Method 2

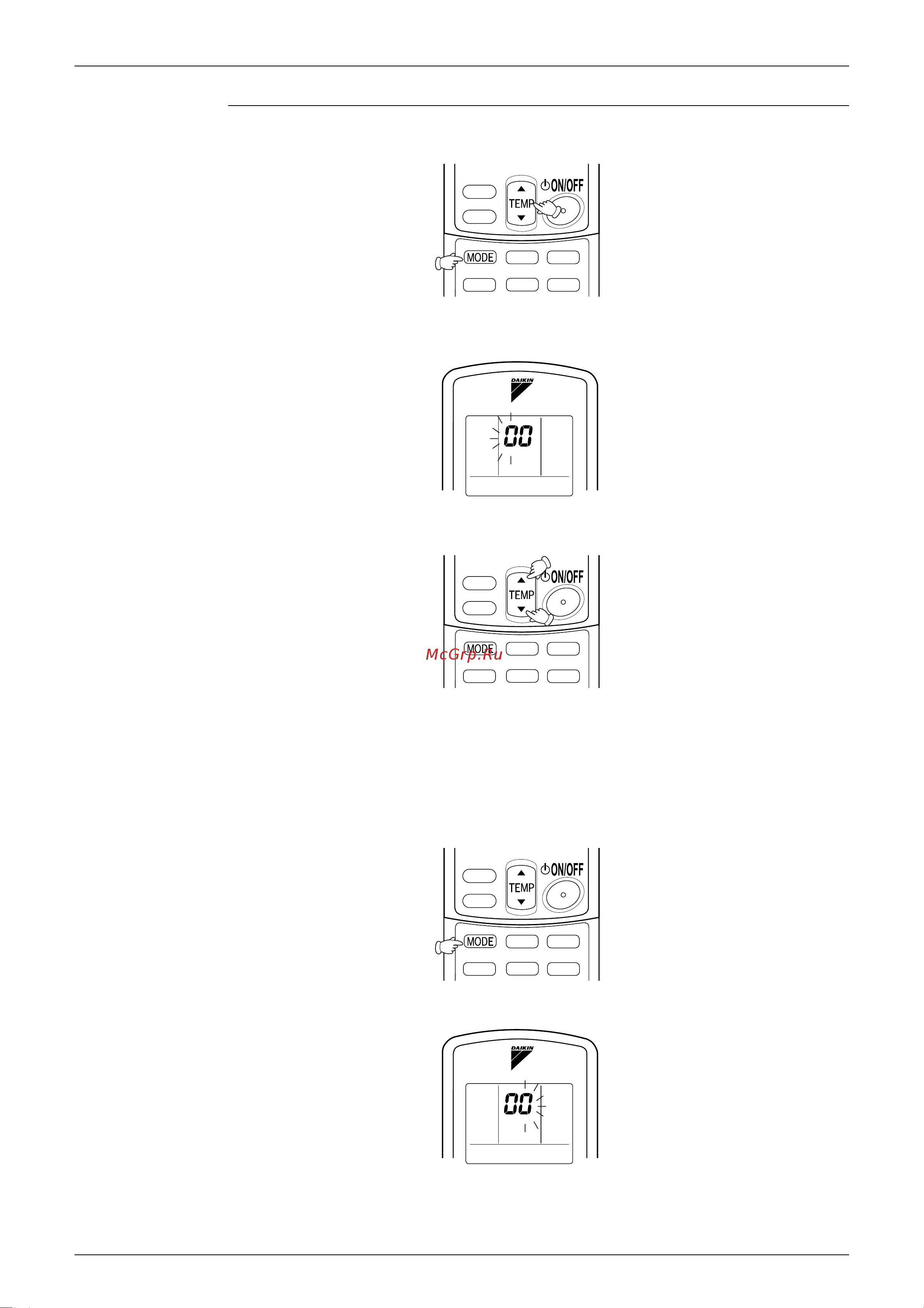

1. Press the center of the TEMP button and the MODE button at the same time.
The figure of the ten’s place blinks.
2. Press the TEMP▲ or ▼ button and change the figure until you hear the sound of “beep” or “pi
pi”.
3. Diagnose by the sound.
★
“pi” : The figure of the ten’s place does not accord with the error code.
★
“pi pi” : The figure of the ten’s place accords with the error code but the one’s not.
★
“beep” : The both figures of the ten’s and one’s place accord with the error code.
(Error codes and description
→
Refer to page 59.)
4. Press the MODE button.
The figure of the one’s place blinks.
(R4272)
(R4273)
(R4274)
(R4275)
(R4276)
