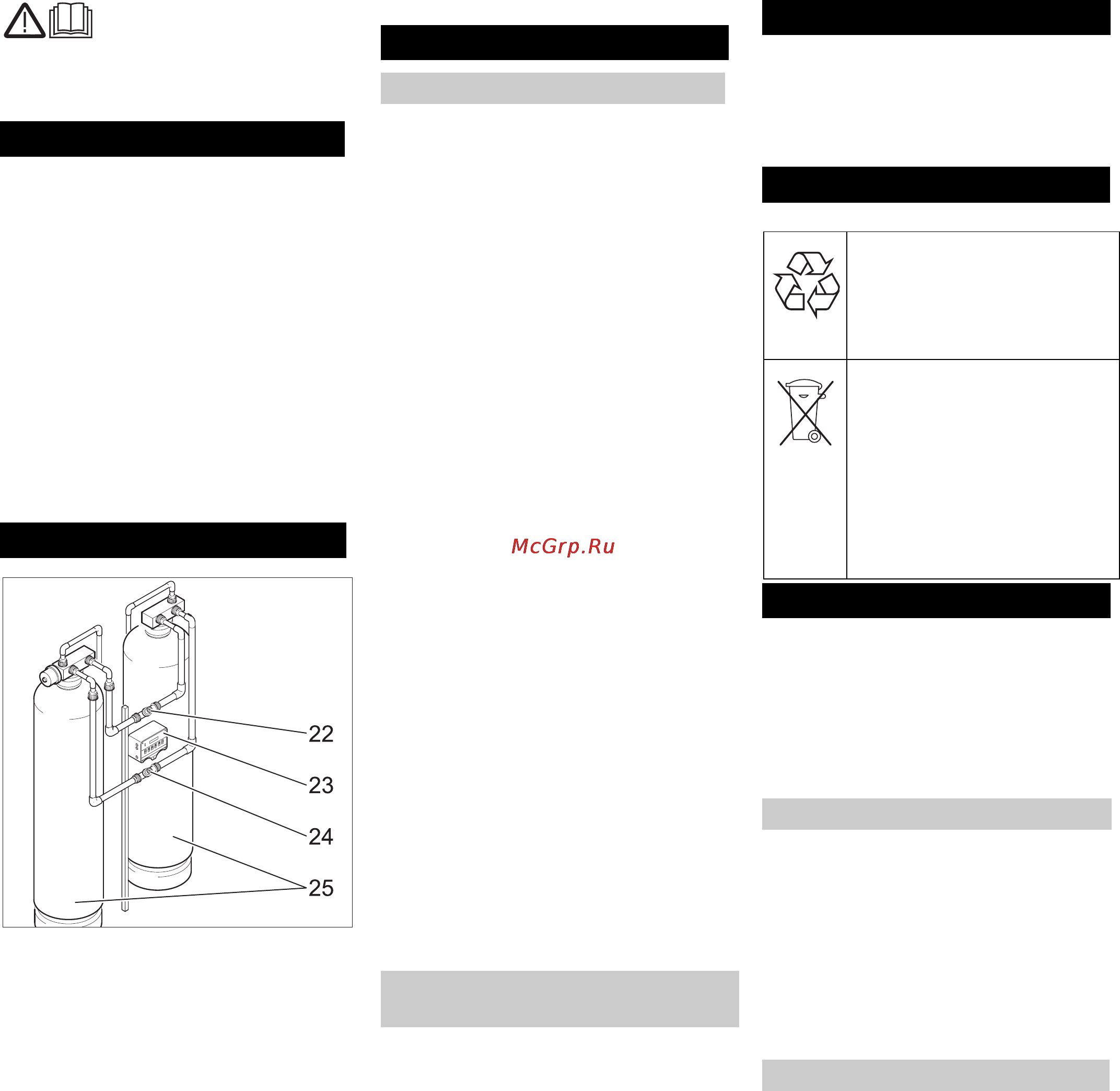

Karcher WPC 2500 SW [14/36] Contents
![Karcher WPC 2500 SW [14/36] Contents](/views2/1007822/page14/bge.png)
14 English
Please read and comply with
these instructions prior to the
initial operation of your appliance. Retain
these operating instructions for future refer-
ence or for subsequent possessors.
Control elements 14
Safety instructions 14
Proper use 14
Environmental protection 14
Start up 14
Operation 15
Maintenance and care 15
Consumables 17
Troubleshooting 18
Technical specifications 19
CE declaration 19
Warranty 19
Accessories and Spare Parts 19
1 Operating field
2 Main switch
3 Control board
4 Operating type switch
5 Flowmeter for concentrate
6 Flowmeter for drinking water
7 Dosing location antiscalant
8 Sample extraction - drinking water
9 Dosing location for secondary chlorina-
tion
10 Sample extraction raw water
11 Pressure regulation valve
12 Manometer for concentrate pressure
13 Manometer to check input pressure for
RO filter unit
14 Manometer for output pressure of fine
filter
15 Fine filter
16 Manometer for inlet pressure of fine fil-
ter
17 Input valve
18 Flush valve
19 Rinse pump
20 RO filter unit
21 Rinse tank
22 Manometer output pressure
23 Control media filter/ active carbon filter
24 Manometer input pressure
25 Media filter/ active carbon filter
– Drinking water quality can only be en-
sured if the plant is monitored at regular
intervals. Please conduct the checks
given in this operating instructions man-
ual according to the schedule.
– Please get the drinking water quality
checked at regular intervals.
– Follow the drinking water regulations.
– Please wear safety gloves and safety
goggles while handling acid-resistant
chemicals.
– Store the chemicals in a cool and dry
place and at temperatures above 5°C.
– Store chemicals away from the reach of
children.
– Ensure proper ventilation in the room
while handling chemicals.
– There must be a washing room close-
by.
– Keep an eye-washing liquid bottle
handy.
– Please follow the safety instructions on
the EC data sheet and the accident
sheet of the concerned chemicals.
– The electrical connections must be
done by an electrician according to IEC
60364-1.
– Never touch damaged or ripped mains
cables. If required, pull out the plug
from the socket immediately.
– Never operate the unit with damaged
cable.
Danger
indicates an immediate threat of danger.
Failure to observe the instruction may result
in death or serious injuries.
몇 Warning
indicates a possibly dangerous situation.
Failure to observe the instruction may result
in light injuries or damage to property.
Note
indicates useful tips and important informa-
tion.
– The plant is used for treating sea water.
– Due to the modular structure, turbid
substances, hardeners, salts, bacteria
and water can be separated depending
on the quality of raw water.
Danger
Risk of injury if the plant is not installed
properly. Risk to health on account of poor-
ly treated drinking water. The plant may be
put into operation only when set-up, in-
stalled and prepared for operation by skilled
and authorized personnel.
Î Check the connection of the plant to the
raw water source.
Î Ensure uninterrupted flow of the gener-
ated drinking water into a tank or a suit-
able user-side facility.
Note
The drinking water must be able to flow out
without any counter-pressure. The height
difference must not be more than 3 m.
Note
If the plant is fitted with one or more dosing
stations, then it needs to be ensured that
this has been connected properly and filled
up.
Î Fill up dosing station (refer to Chapter
"Maintenance and Care/ Maintenance
jobs")
Contents
Control elements
Safety instructions
General
Drinking water
Chemicals
Electrical system
Symbols in the operating instruc-
tions
Proper use
Environmental protection
The packaging material can be
recycled. Please do not throw
the packaging material into
household waste; please send
it for recycling.
Old appliances contain valua-
ble materials that can be recy-
cled; these should be sent for
recycling.. Batteries, oil, and
similar substances must not
enter the environment. Please
dispose of your old appliances
using appropriate collection
systems.
Start up
Before Commissioning
Filling up the dosing station
