English
Indoor Unit
All dimensions are in mm
B
D
C
M N G
F
H
A
E
I
J
K
L
Dimension
Model
A B C D E F G H I J K L M N O
FDM20JEV1K 31 1041 1002 962 10 1065 72 261 411 351 225 211 232 213 114
FDM25JEV1K 31 1176 1137 1097 10 1200 72 261 411 351 225 211 232 213 114
O

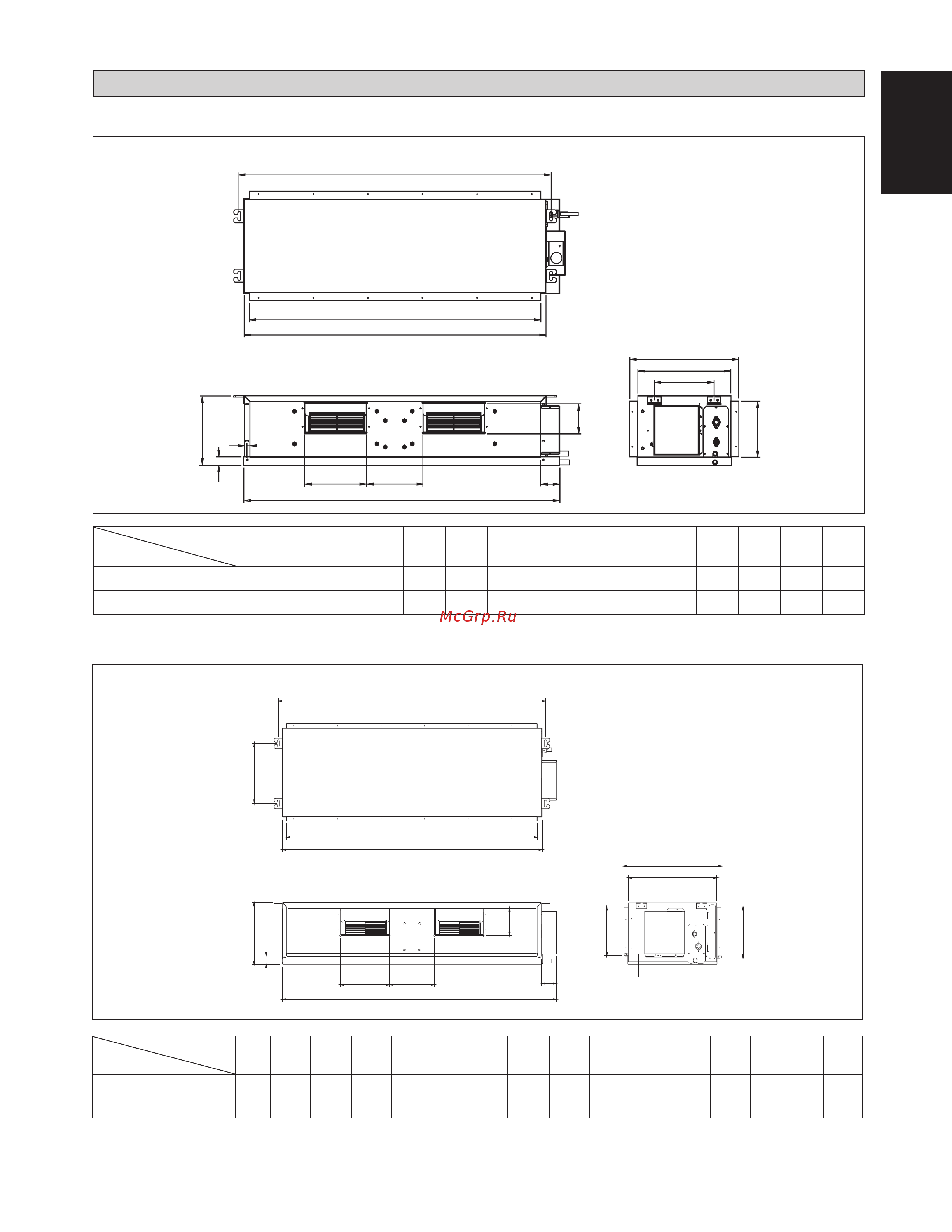

OUTLINE AND DIMENSIONS
Original Instruction
Dimension
Model
A B C D E F G H I J K L M N O P
FDM30JEV1K
FDM40JEV1K
40 292 1295 232 213 70 128 1228 1185 284 1262 460 420 241 12 230
K
I
H
J
B
D E
C
A
G
F
L
M
P
N
O
