English
There must be an all pole disconnection
in the supply mains with a contact
separation of at least 3mm.
!
FDM50JEV1K - RD50JEY1K
FDM60JEV1K - RD60JEY1K

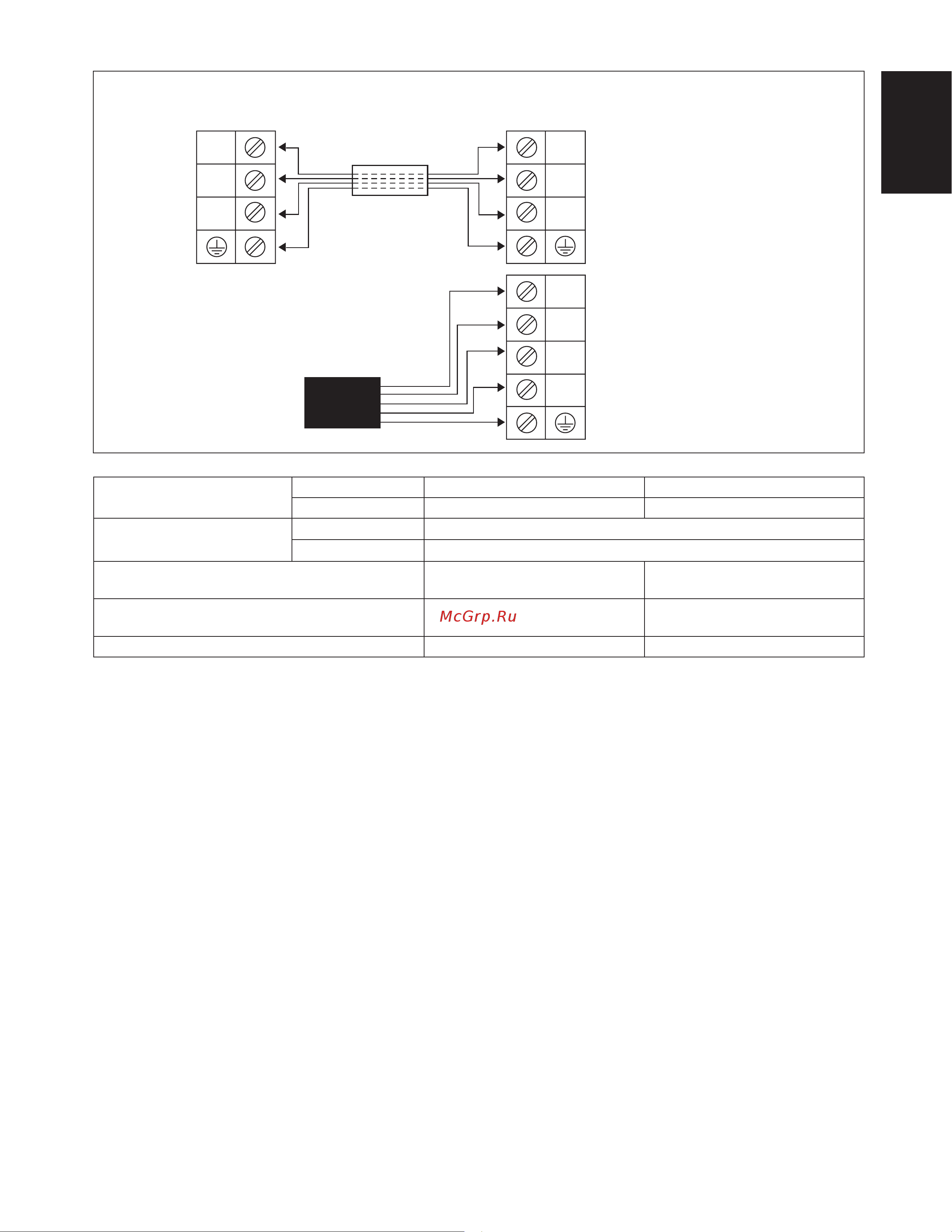

Power Supply Cable
Interconnection cable
Outdoor unit
Terminal Block
Indoor unit
Terminal Block
Model Indoor FDM50JEV1K FDM60JEV1K
Outdoor RD50JEY1K RD60JEY1K
Voltage range**
Indoor
220-240V/1Ph/50Hz+!
Outdoor
308-415V/3N~/50Hz+!
Power supply cable size* mm
2
Number of conductors
2.5
5
2.5
5
Interconnection cable size* mm
2
Number of conductors
2.5
4
2.5
4
Recommended time delay fuse* A 16 20
COMP
L
N
COMP
L
N
R
S
T
N
