Daikin FHC50JEV1K [4/24] Outline and dimensions
![Daikin FDM40JEV1K [4/24] Outline and dimensions](/views2/1784692/page4/bg4.png)

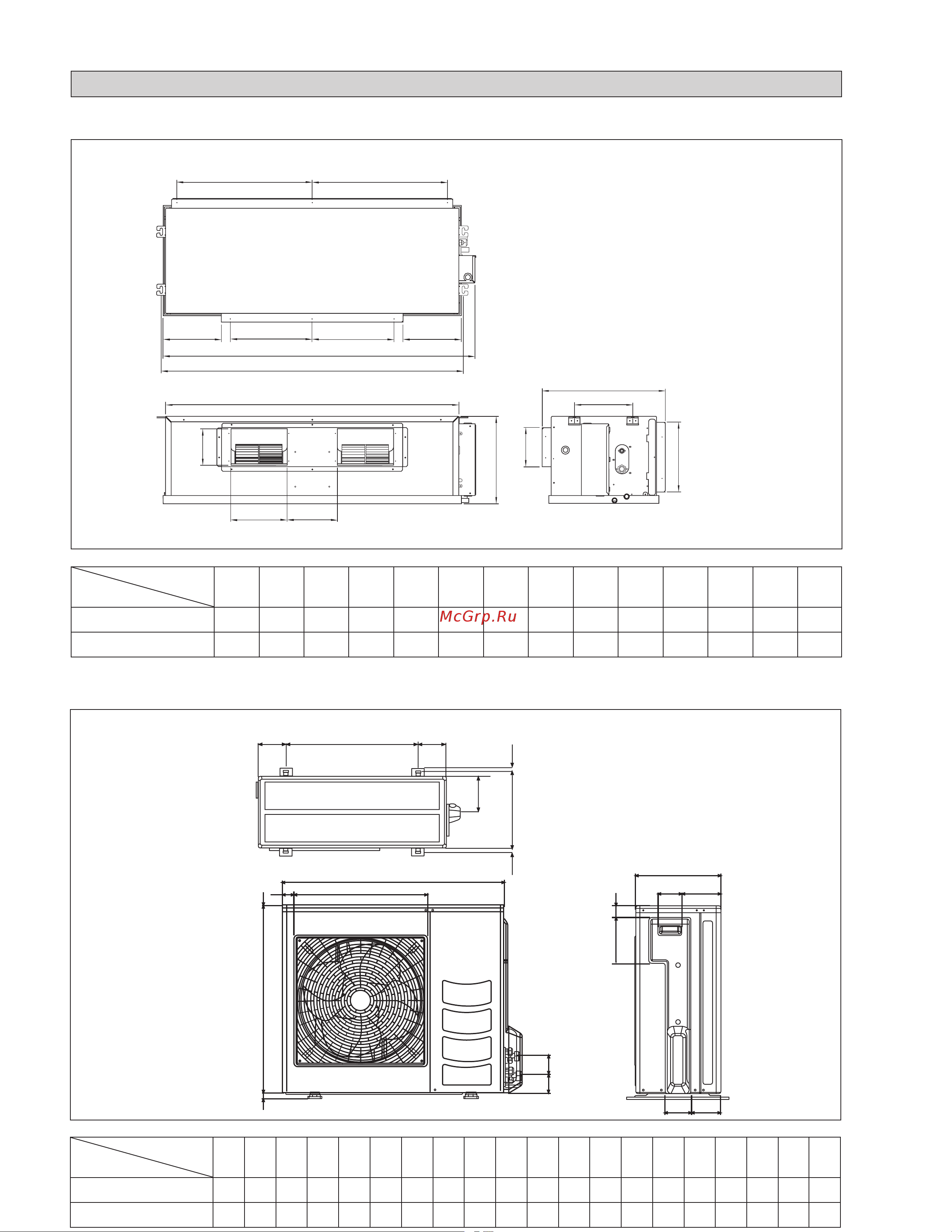

OUTLINE AND DIMENSIONS
Outdoor Unit
N
L
K L
TN
M
A
D
O
PBQ
R
S
C
H
G
F
E
I J
All dimensions are in mm
Dimension
Model
A B C D E F G H I J K L M N O P Q R S T
RD20JEV1K 855 628 328 520 181 44 93 149 101 113 603 126 164 17 34 3 23 73 75 362
RD25/30JEV1K 855 730 328 520 182 44 93 149 101 113 603 126 164 17 34 3 23 73 75 362
Indoor Unit
All dimensions are in mm
Dimension
Model
A B C D E F G H I J K L M N
FDM50JEV1K 359 1369 1326 1287 594 384 541 256 173 306 256 161 248 220
FDM60JEV1K 359 1569 1526 1487 694 378 541 256 173 306 356 161 248 220
E E
A AK
B
C
K
D
M N
L
F
I
G
H
J
