Daikin FWXM10AATV3 [12/20] Evacuating air while filling the system

A B

2.10

2.11

INSTALLATION

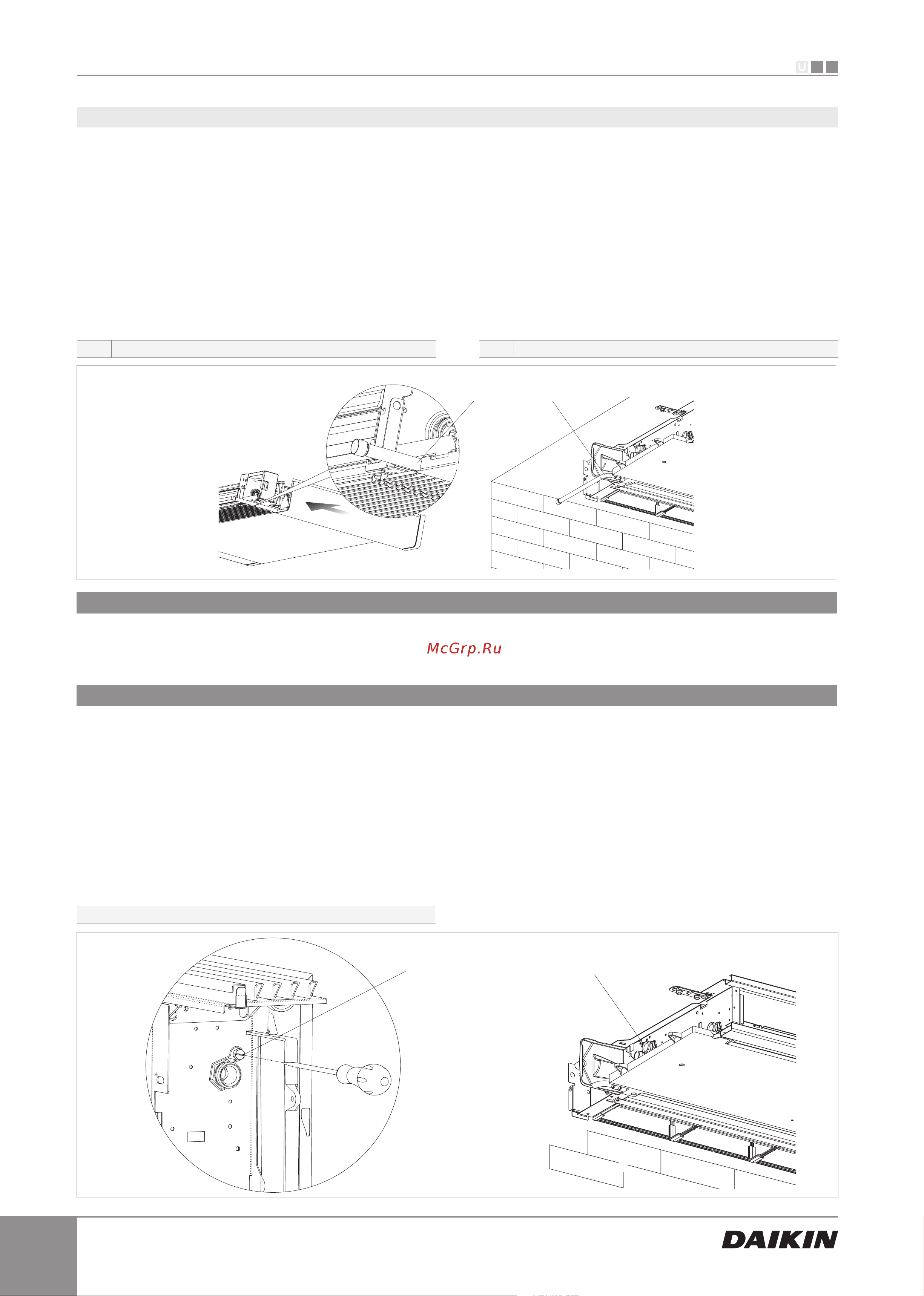

Mounting the condensation discharge pipe in the horizontal version (FWXM-series)

Connection pipes - Ø14 mm Burglary

To mount the horizontal bowl on the FWXM-series refer to

the instructions in kits EKM(10/15/20)COH.

- check that the "L" pipe and the flexible rubber hose

are correctly connected to the bowl.

- slide in the side of the machine keeping the pipe in

position up against the front grill.

- fully close the side checking that the pipe remains

blocked in the special grove on the side.

N.B. for the horizontal installation carefully note the

following precautions:

- make sure that the machine is installed perfectly level

or with a slight inclination towards the condensation

discharge;

- insulate carefully the inflow and outflow pipes up to the

machine union to prevent any drops of condensation

outside the same collection bowl;

- insulate the bowl condensation discharge pipe along

all of its length.

Venting of the battery

Filling the system

Evacuating air while filling the system

When starting up the system, make sure that the hydraulic

unit lockshield is open. If there is no electric power and the

thermo-valve has already been powered use the special

cap to press the valve stopper to open it.

- Open all the system interception devices (manual or

automatic);

- Start the filling by slowly opening the system water

filling tap;

- For the installed in a vertical position, take a screwdriver

and act on the highest breather of the battery; for

appliances installed in a horizontal position, act on the

highest positioned breather.

- When water starts coming out of the breather valves

of the appliance, close them and continue filling until

reaching the nominal value for the system.

Check the hydraulic seal of the gaskets.

It is advisable to repeat these operations after the appliance

has been running for a few hours and periodically check

the pressure of the system.
