7
S
I
U
2.1
2.2
400 mm
80 mm
20 mm 20 mm
140 mm
2.3
INSTALLATION
INSTALLATION
Positioning the unit
Installation modes
Avoid installing the unit in proximity to:
- positions subject to exposure to direct sunlight;
- in proximity to sources of heat;
- in damp areas or places with probable contact with
water;
- in places with oil fumes
- places subject to high frequencies.
Make sure that:
- the wall on which the unit is to be installed is strong
enough to support the weight;
- the part of the wall interested does not have pipes or
electric wires passing through;
- the interested wall is perfectly flat;
- there is an area free of obstacles which could interfere
with the inlet and outlet air flow;
- the installation wall is preferably an outside perimeter
wall to allow the discharge of the condensation outside;
- in case of ceiling installation (FWXM-series) the airflow is
not directed towards persons.
The following descriptions of the various mounting phase
and the relative designs refer to a version of the machine
with fixtures on the left.
The operations for the mounting of machines with fixtures
on the right are exactly the same.
Only the images are to be considered as a mirror image.
To ensure that the installation is performed correctly and
that the appliance will perform perfectly carefully follow the
instructions indicated in this manual. Failure to respect the
rules indicated not only can cause malfunctions of the
appliance but will also invalidate the warranty and hence
DAIKIN EUROPE N.V. shall not respond for any damage to
persons, animals or property.

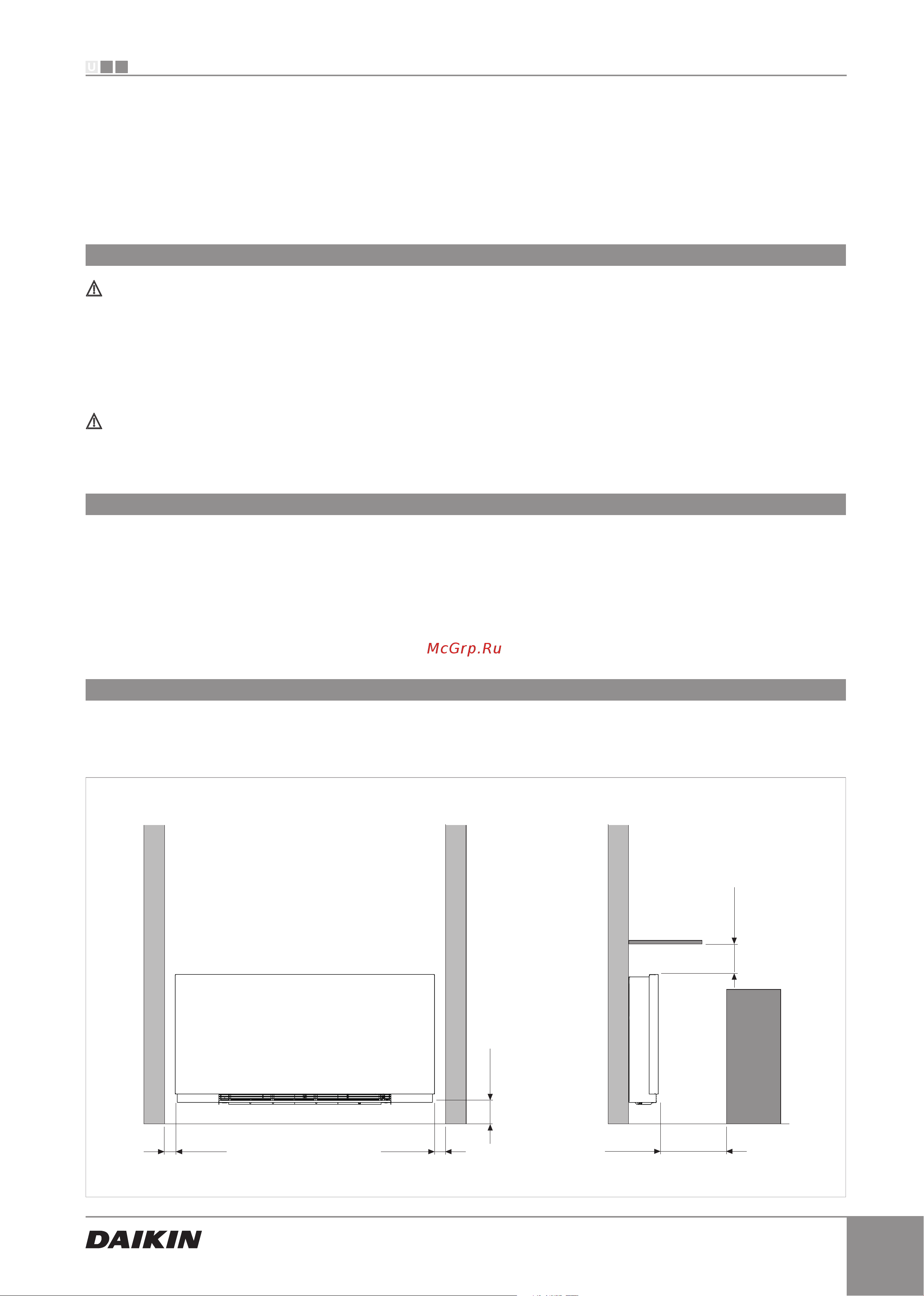

Minimum installation distances
Figure indicates the minimum mounting distances
between the wall-mounted cooler-convector and furniture
present in the room.
