INSTALLATION

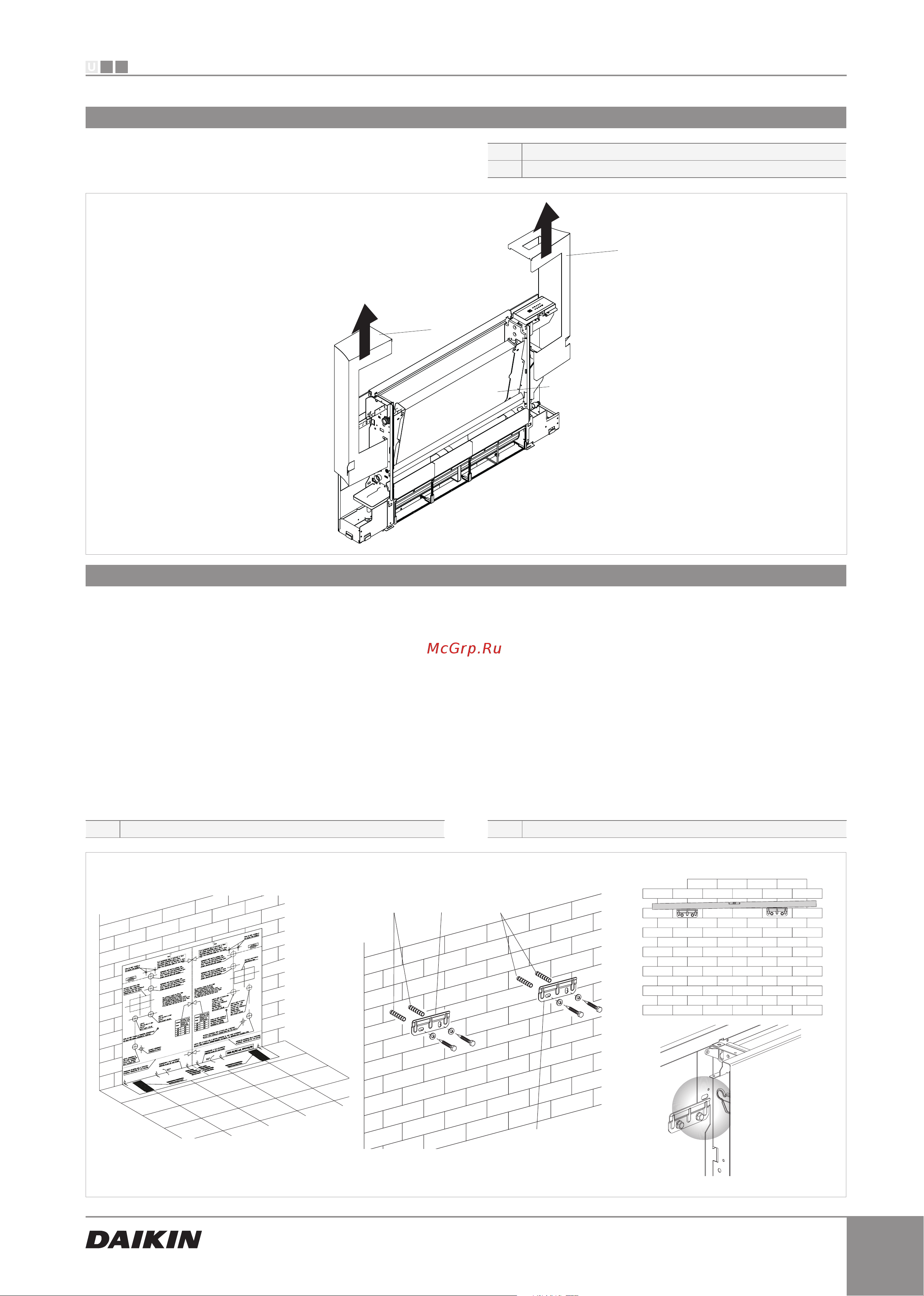

Vertical floor or wall installation (FWXV-series)

Toggle bolts Brackets

Remove side

To remove the side:

- remove the sides upwards

Side

Machine body

When mounting on the floor with support feet, refer to the

individual instructions leaflets supplied and the relative

manual for the mounting of the feet.

Using the paper template, trace the position of the two

fixing brackets on the wall. Use a suitable drill to make the

holes with and insert the toggle bolts (2 for each bracket);

fix the two brackets. Do not over-tighten the screws so

that the brackets can be adjusted with a spirit level.

Fully tighten the four screws to block the two brackets.

Check the stability by manually moving the brackets to the

right and to the left, up and down.

Mount the unit, checking that it fits correctly onto the

brackets and checking that it is stable.

Note: to facilitate the connection of the pipes to the fancoil

connections, install a built-in box at the outlet of the pipes

themselves.

The correct position of the box is indicated on the

installation template.
