Daikin FWXM10AATV3 [8/20] Access to the body machine
![Daikin FWXM10AATV3 [8/20] Access to the body machine](/views2/1786259/page8/bg8.png)
8
S
I
U
2.4
A
B
C
D
A
B
C
D
A
A
B
B
A
A B
INSTALLATION
Fixing screws Front panel

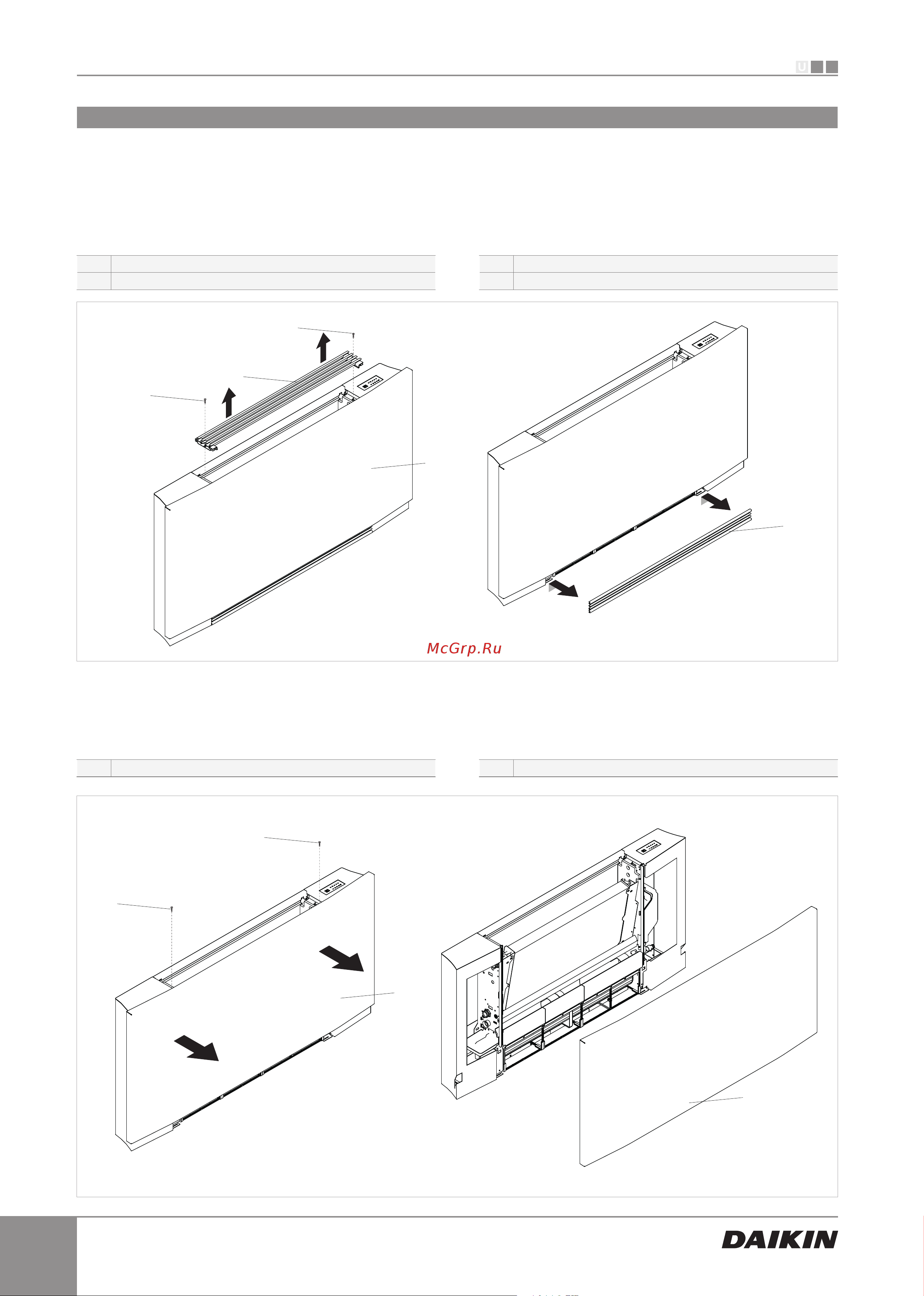

Access to the body machine
To access the inside of the machine, follow the procedures
below.
Remove the upper grill:- loosen the fixing screws
- loosen the fixing screws of the upper grill
- remove the grill
Remove the front grill:
- extract the grill until it is completely out of the seat
- tilt the grill
- slide outwards
Fixing screws
Upper grill
Front panel
Front grill
Remove the frontal panel:
- loosen the fixing screws
- remove the panel
