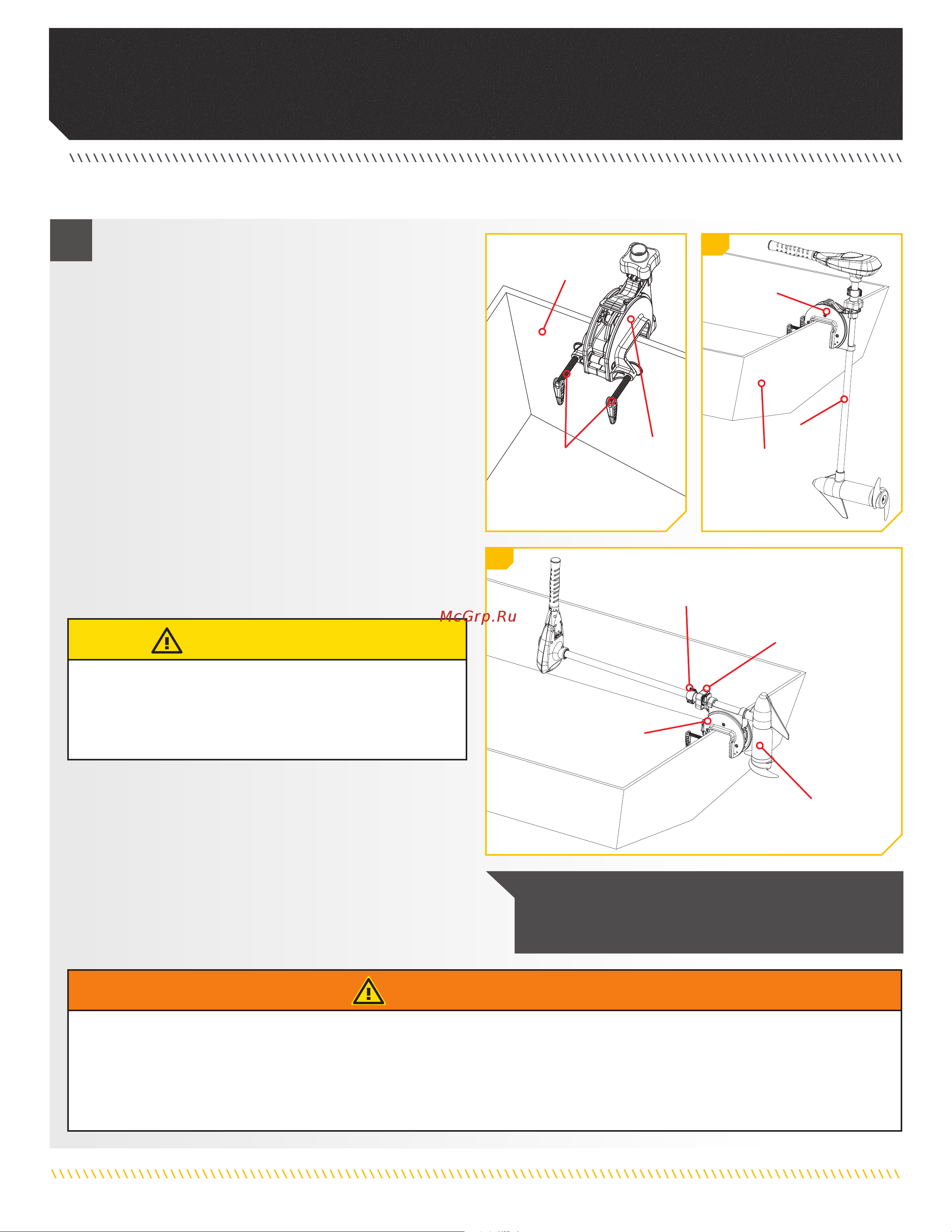

INsTallaTION

a. Find a transom area of the boat that is free from

obstructions.

b. Open the Transon Clamp Screws on the bracket

enough so that it will fit over the top of the boat

transom.

c. Place the Mounting Bracket over the top of the boat

e. Tighten down the Transom Clamp Screws to the

transom by hand only. Do not use any tools to

tighten the clamp screws as this may damage the

bracket or your boat.

NOTICE: This motor weighs approximately 30 lbs.

We recommend having a second person help with the

installation.

Transom Clamp

Screws

Mounting

adjusted so that the motor shaft is perpendicular to

the water surface when the motor is in use.

g. For transport, always tilt the motor into the

boat, such that the motor and prop assembly

are completely out of the water and the motor is

positioned up close to the Mounting Bracket.

Depth Collar

Mounting Bracket

Damage to the bracket will prevent the motor from being

securely mounted to the transom. Prevent damage to the

bracket by not over-tightening it. Only tighten by hand.

WARNING

When the motor is being transported, on water or land, it is important to place the motor completely out of water. The motor should

be positioned up close to the Mounting Bracket. Always secure the Steering Tension Knob and slide the Quick Release Depth Collar

down to the top of the Steering Tension Knob for added security during transport. This provides a secure stow and holds the motor

in place during transportation when it is subject to high levels of shock and vibration. Failure to secure the motor may result in injury

or damage to the unit.

1f
