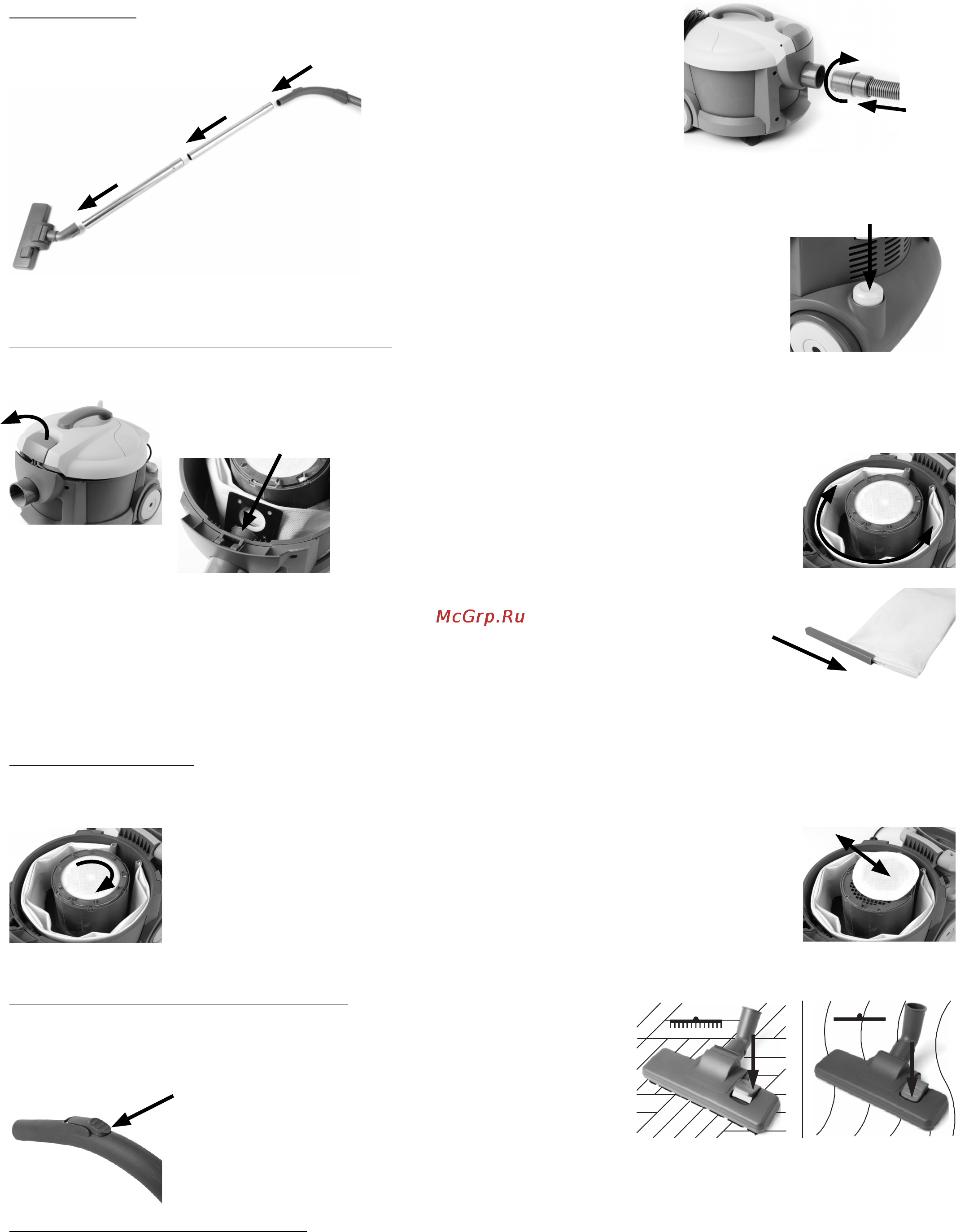

APPLYING ATTACHED ACCESSORIES

Floor brush (g) can be adjusted depending on cleaned surface. Press the button (indicated with

an arrow in the drawing), to clean rough surface; switch off this button, to clean plain surface.

Gap nozzle (b) is right to clean difﬁ cult access areas such as the ﬂ oor under furniture.

Round brush (c) is proper for cleaning plain surface of furniture such

as sofa, armchair or curtains etc.

Suction power adjustment is located at the handle of sucking hose

(d) which enables selection of suction power adequate for particular surface. Move the locker forwards to increase suction

power, and move it backwards to reduce it.

CLEANING AND MAINTENANCE

Remember to check if the vacuum cleaner is unplugged before cleaning and maintenance.

Clean the casing and bag chamber with damp cloth (it can be wet with wash – up liquid) dry or wipe up to get it dry.

Do not use abrasive agents or dissolvent.

Vacuum the ﬂ oor brush (g), round brush (c) or special accessories with a gap nozzle (b) from time to time.

After each usage check if hose (d), sucking pipe (a) and accessories have not been damaged.

–

Emptying SMS (f) dust bag

1. Open the vacuum cleaner the same way as in case of new dust bag inserting.

2. Remove the rubber ﬂ ange from the sucking inlet and remove the full bag.

3. Remove the clips (f

) at the bottom of the bag, empty it and shake out.

4. Put back the clips (f

) at the endings (f) of the bag carefully, not to leave any gap in the bag.

5. Insert clean SMS dust bag (f) the same way as in case of new dust bag inserting.

Paper bag (h) is a dust compartment, which you do not empty form dust. It is necessary to exchange dust bag, when you notice that the appliance

vacuums signiﬁ cantly less or that the bag is full. Dispose the bag, when it is completely full.

ATTENTION!!! Improper dust bag assembling can cause its damage due to suction power.

FILTERS EXCHANGE

In case, when suction power is reduced and the pipe is not blocked and new dust bag is assembled, it is necessary to exchange motor protecting

ﬁ lter (e). In order to do it:

ASSEMBLING

1. Insert sucking hose (d) into air inlet (1) – (A) direction, and then turn it clockwise (B) – until it

is possible.

2. Connect two parts of sucking pipe (a) in direction indicated by the arrows. Connect sucking pipe (a) and

ﬂ oor brush (g) the same way. Then connect the hose (d) (handle) with sucking pipe (a).

3. Connect supplying cord (7) with mains supply outlet with voltage according to nameplate. Press ON/OFF switch

(8), to start up the vacuum cleaner. Press the button again to switch off the appliance.

DUST BAG ASSEMBLING – EXCHANGE (f)

Remark: Assemble (f) or (h) dust bag before you start up the appliance.

Assembling new bag

1. Press upper lid locking button (3) in direction indicated by the arrows, and open it upwards so, that you unlock the

hooks.

2. Take out new (f) or (h) dust bag and put the rubber ﬂ ange

on sucking inlet at the centre of the casing.

3. Arrange the bag along the casing walls.

Remove outlet ﬁ lter fastening ring turning it in clockwise direction. To assemble motor pro-

tecting ﬁ lter (e) it is necessary to turn the ring in counter clockwise direction.

–

Remove motor protecting ﬁ lter (e)

.–

ATTENTION!!! Make sure that motor protecting ﬁ lter is assembled properly. Otherwise the

dust can be sucked into the motor, which can damage the vacuum cleaner.
