5.10.6 Air supply from the facade and a roof outlet with communal

exhaust system

Unit category: C83

IMPORTANT

•

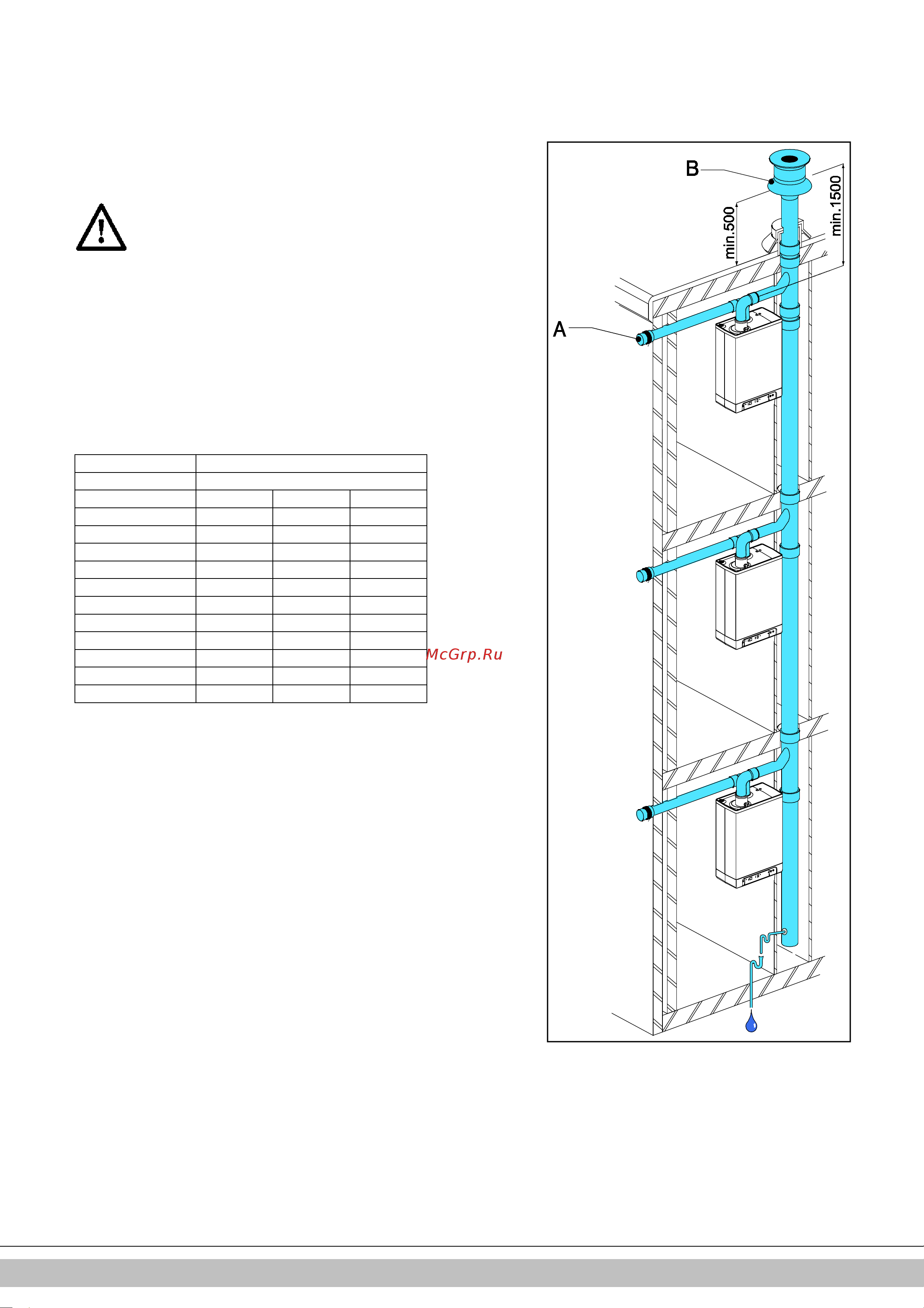

An air supply from the outside wall and a roof outlet with a

combined flue system is allowed.

• The air supply in the facade must be fitted with an inlet grid

(A).

• The combined flue system must be fitted with a traction

extractor hood (B).

• If the combined flue system is situated in the outdoors,

the output pipe must be double-walled or insulated.

The minimum diameters of the communal output system based on vacuum

Flue tube diameter

EKOMBG*ABV1

Number of units 22 28 33

2 110 130 130

3 130 150 150

4 150 180 180

5 180 200 200

6 200 220 220

7 220 230 230

8 230 250 250

9 240 270 270

10 260 280 280

11 270 290 290

12 280 300 300

Communal combustible gas outlet

The output of the combustion gas outlet can be made in any location on the sloping

roof surface, providing the outlet in the roof surface has the same orientation as the

air supply in the facade. On a flat roof, the outlet of the combustion gas outlet must be

made in the “free” outlet area.

Fit a condense output.

Note

The communal outlet is certified in combination with the unit.
