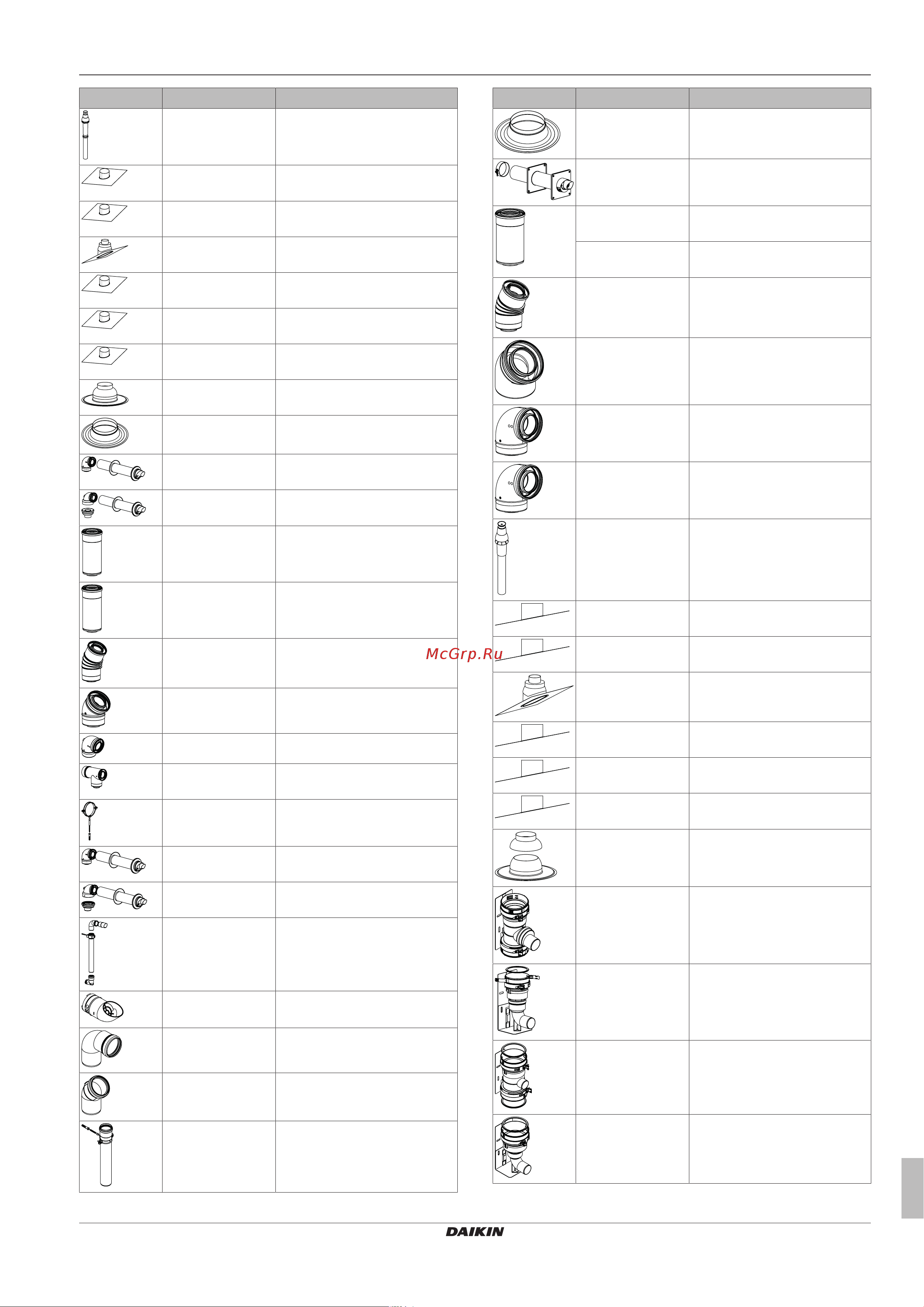

5 About the units and options
Installer reference guide
13
CHYHBH05+08AA + EHYKOMB33A
Daikin hybrid for multi heat pump – heat pump module
4P471761-1A – 2017.10
Accessories Part number Description
EKFGP6837 Roof terminal PP/GLV 60/100
AR460
EKFGS0518 Weather slate steep Pb/GLV
60/100 18°-22°
EKFGS0519 Weather slate steep Pb/GLV
60/100 23°-17°
EKFGP7910 Weather slate steep PF 60/100
25°-45°
EKFGS0523 Weather slate steep Pb/GLV
60/100 43°-47°
EKFGS0524 Weather slate steep Pb/GLV
60/100 48°-52°
EKFGS0525 Weather slate steep Pb/GLV
60/100 53°-57°
EKFGP1296 Weather slate flat Aluminium
60/100 0°-15°
EKFGP6940 Weather slate flat Aluminium
60/100
EKFGP2978 Wall terminal kit PP/GLV
60/100
EKFGP2977 Wall terminal kit low profile PP/
GLV 60/100
EKFGP4651 Extension PP/GLV
60/100×500mm
EKFGP4652 Extension PP/GLV
60/100×1000mm
EKFGP4664 Elbow PP/GLV 60/100 30°
EKFGP4661 Elbow PP/GLV 60/100 45°
EKFGP4660 Elbow PP/GLV 60/100 90°
EKFGP4667 Meas. tee with inspection panel
PP/GLV 60/100
EKFGP4631 Wall bracket Ø100
EKFGP1292 Wall terminal Kit PP/GLV
60/100
EKFGP1293 Wall terminal kit low profile PP/
GLV 60/100
EKFGP1294 Plume management kit 60 (UK
only)
EKFGP1295 Flue deflector 60 (UK only)
EKFGP1284 PMK elbow 60 90 (UK only)
EKFGP1285 PMK elbow 60 45° (2pieces)
(UK only)
EKFGP1286 PMK extension 60 L=1000
includes bracket (UK only)
Accessories Part number Description
EKFGW5333 Weather slate flat aluminium
80/125
EKFGW6359 Wall terminal kit PP/GLV
80/125
EKFGP4801 Extension PP/GLV
80/125×500mm
EKFGP4802 Extension PP/GLV
80/125×1000mm
EKFGP4814 Elbow PP/GLV 80/125 30°
EKFGP4811 Elbow PP/ALU 80/125 45°
EKFGP4810 Elbow PP/ALU 80/125 90°
EKFGP4820 Inspection elbow Plus PP/ALU
80/125 90° EPDM
EKFGP6864 Roof Terminal PP/GLV 80/125
AR300 RAL9011
EKFGT6300 Weather slate steep Pb/GLV
80/125 18°-22°
EKFGT6301 Weather slate steep Pb/GLV
80/125 23°-27°
EKFGP7909 Weather slate steep PF 80/125
25°-45° RAL9011
EKFGT6305 Weather slate steep Pb/GLV
80/125 43°-47°
EKFGT6306 Weather slate steep Pb/GLV
80/125 48°-52°
EKFGT6307 Weather slate steep Pb/GLV
80/125 53°-57°
EKFGP1297 Weather slate flat aluminium
80/125 0°-15°
EKFGP6368 Tee flex 100 boiler connection
set 1
EKFGP6354 Flex 100-60 + support elbow
EKFGP6215 Tee flex 130 boiler connection
set 1
EKFGS0257 Flex 130-60 + support elbow
