7 Installation
Installer reference guide
42
CHYHBH05+08AA + EHYKOMB33A
Daikin hybrid for multi heat pump – heat pump module
4P471761-1A – 2017.10
Number of
units
Concentric Dual pipe
Gas
exhaust
Air intake Gas
exhaust
Air intake
6 206 386 206 326
7 217 407 217 344
8 229 429 229 363
9 240 449 240 380
10 251 470 251 398
11 263 493 263 416
12 274 513 274 434
13 286 536 286 453
14 297 556 297 470
15 308 577 308 488
16 320 599 320 507
17 331 620 331 524
18 342 641 342 541
19 354 663 354 560
20 365 683 365 578
Special remark regarding C
93
: The minimum inner dimensions of
the chimney have to be 200×200mm.
INFORMATION
In case of a C
13
type flue gas system, a flue gas flap valve
(EKFGF1A) is recommended.
7.12.5 Applicable materials
Materials for the installation of the gas exhaust and/or air intake
MUST be bought according to the table below.
D BG BA HR HU SK SICZ ES PT PL GR CY IE TR MT LTLT LV UK FR B
Daikin
Daikin
Daikin
Daikin
Daikin
Daikin
(b) (a)(a) (a) (b)
C
C
C
C
93
C
C
C
83
63
53
43
33
13
IT CH
AT
(b)
(a) Gas exhaust/air intake parts can be bought from the 3
rd
party. All parts purchased from an external supplier MUST
comply with EN14471.
(b) NOT allowed.

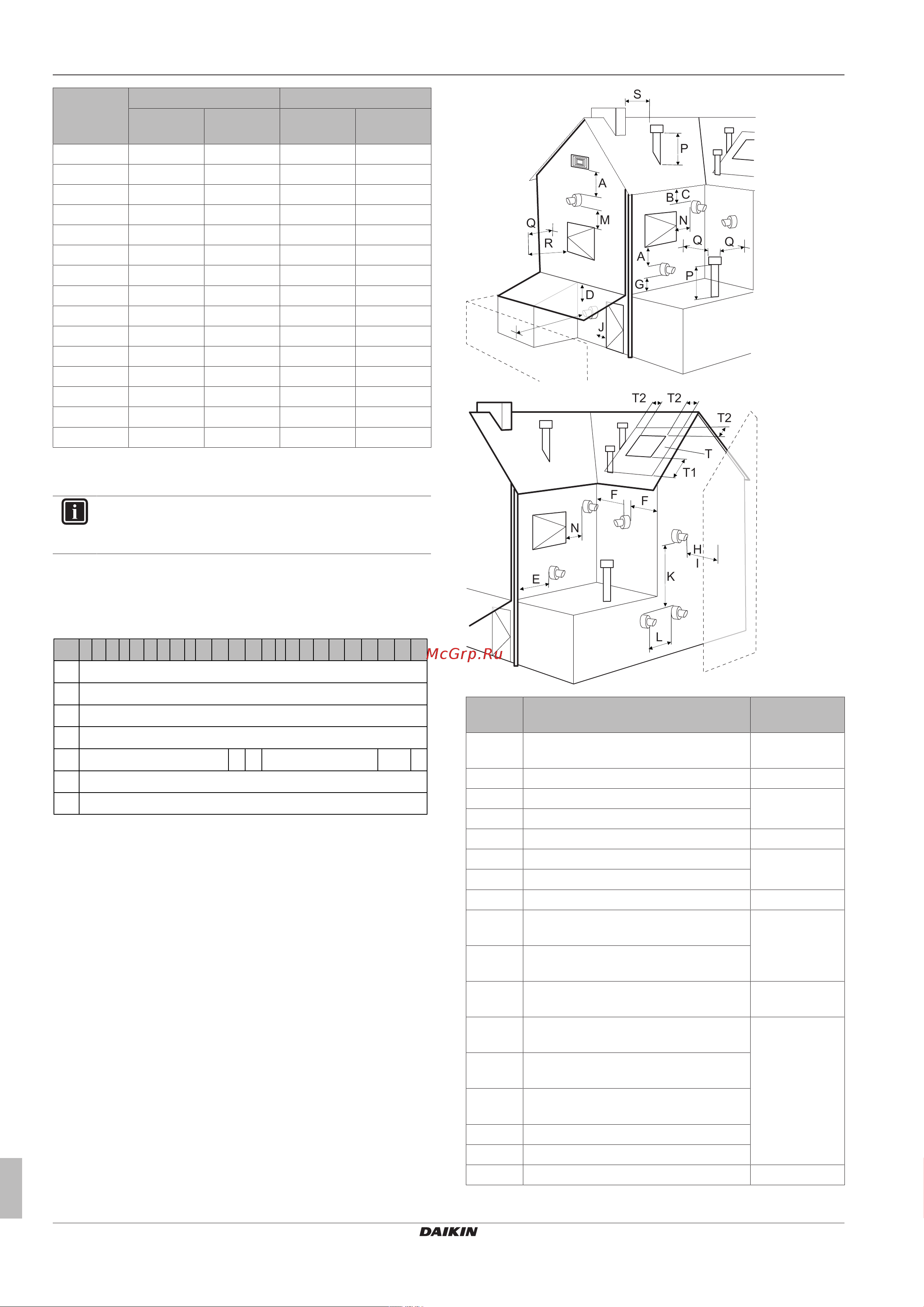

7.12.6 Flue pipe position
See the local and national regulations.
Especially for UK:
Only use flue products approved by the boiler manufacturer, which
can be bought from the supplier of your boiler.
Refer to the field supplied accessories for all available accessories.
P
S
C
B
A
M
R
D
J
Q
G
A
Q
Q
N
P
T2 T2
T2
T1
H
T
I
K
L
F
F
N
E
Terminal position Minimum
distance (mm)
A Directly below an open able window or
other opening (e.g. air brick)
300
B Below gutters, soil pipes or drain pipes 75
C Below eaves 200
D Below balconies or car front roofs
E From vertical drain pipes and soil pipe 150
F From internal or external corners 300
G Above ground, roof or balcony level
H From a surface facing a terminal 600
I From a terminal discharging towards
another terminal
1200
J From an opening in a car port (e.g.
door, window) into a dwelling
K Vertically from a terminal on the same
wall
1500
L Horizontally from a terminal on the
same wall
300
M Above an opening, air brick, opening
windows, etc.
N Horizontally to an opening, air brick,
opening windows, etc.
P Above roof level (to base terminal)
Q From an adjacent wall to flue
R From an adjacent opening window 1000
