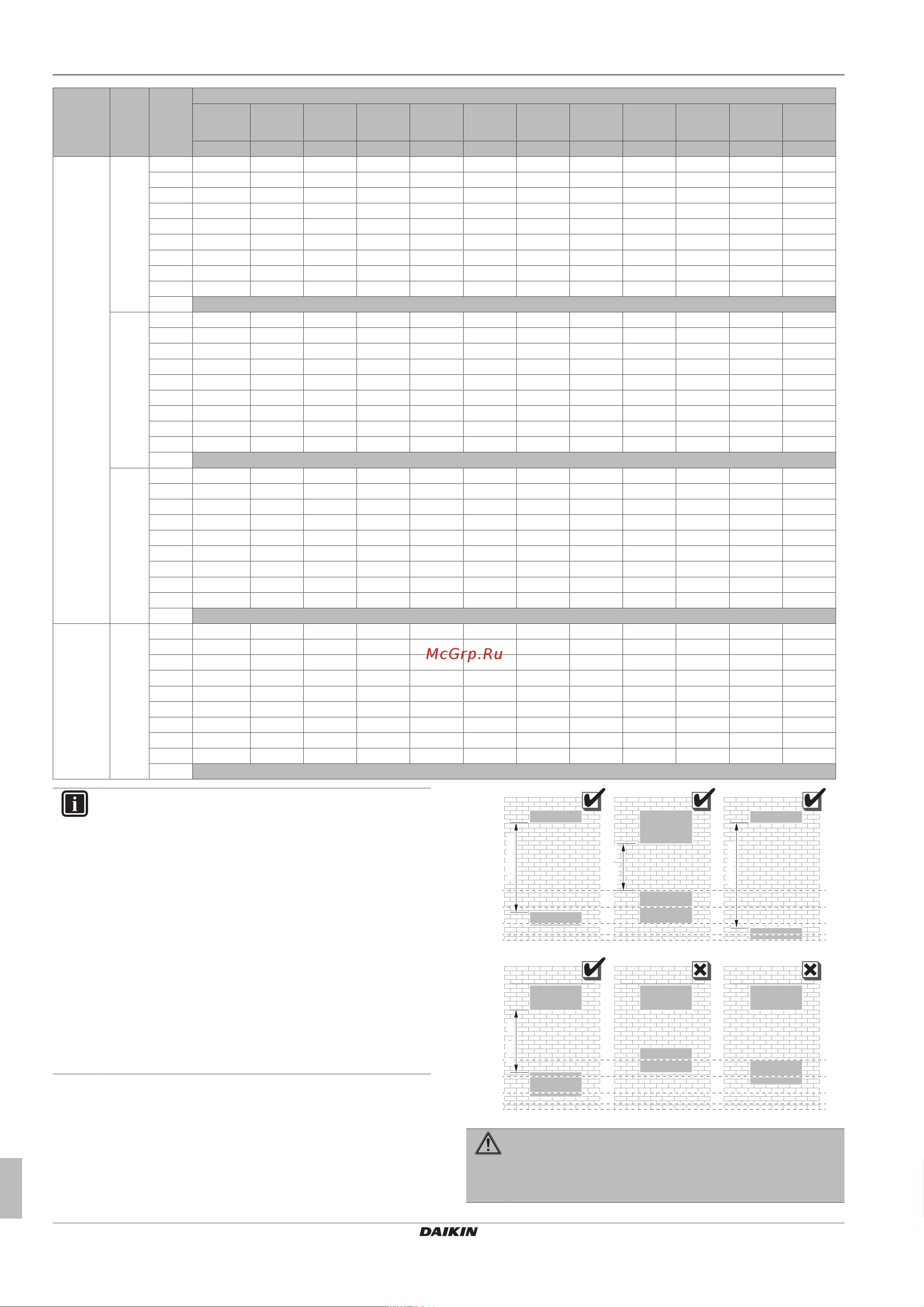

Daikin EHYKOMB33AA2A [94/108] Technical data

Daikin EHYKOMB33AA2A [94/108] Technical data
15 Technical data
Installer reference guide
94
CHYHBH05+08AA + EHYKOMB33A
Daikin hybrid for multi heat pump – heat pump module
4P471761-1A – 2017.10
m
c
(kg) dm=m
c
m
max
(kg)
Minimum venting opening area (cm
2
)
H=500mm,
600mm,
700mm
H=800mm H=900mm H=1000mm H=1100mm H=1200mm H=1300mm H=1400mm H=1500mm H=1600mm H=1700mm H=1800mm
h=600mm h=700mm h=800mm h=900mm h=1000mm h=1100mm h=1200mm h=1300mm h=1400mm h=1500mm h=1600mm h=1700mm
4MXM80 +
5MXM90
2.8 2.52 1025 949 888 837 794 757 725 696 671 648 628 609
2.24 911 844 789 744 706 673 644 619 597 576 558 541
1.96 797 738 691 651 618 589 564 542 522 504 488 474
1.68 786 674 592 558 530 505 483 464 448 432 419 406
1.40 732 628 549 488 441 421 403 387 373 360 349 339
1.12 642 550 482 428 385 350 322 310 299 288 279 271
0.84 520 446 390 347 312 284 260 240 224 216 210 203
0.56 371 318 278 247 223 203 186 171 159 149 140 136
0.28 197 169 148 131 118 108 99 91 85 79 74 70
0.00
3 2.70 1098 1017 951 897 851 811 777 746 719 695 673 653
2.40 976 904 845 797 756 721 690 663 639 618 598 580
2.10 881 791 740 698 662 631 604 580 559 540 523 508
1.80 872 747 654 598 567 541 518 498 480 463 449 435
1.50 812 696 609 542 488 451 432 415 400 386 374 363
1.20 712 610 534 475 427 389 356 332 320 309 299 290
0.90 577 494 433 385 346 315 289 266 247 232 225 218
0.60 411 353 309 274 247 225 206 190 177 165 155 145
0.30 218 187 164 146 131 119 109 101 94 88 82 77
0.00
3.2 2.88 1171 1084 1014 956 907 865 828 796 767 741 717 696
2.56 1041 964 902 850 807 769 736 708 682 659 638 619
2.24 970 844 789 744 706 673 644 619 597 576 558 541
1.92 960 823 720 640 605 577 552 531 511 494 478 464
1.60 895 767 671 597 537 488 460 442 426 412 399 387
1.28 784 672 588 523 471 428 392 362 341 330 319 310
0.96 635 545 477 424 381 347 318 294 273 254 239 232
0.64 453 388 340 302 272 247 227 209 194 181 170 160
0.32 240 206 180 160 144 131 120 111 103 96 90 85
0.00
5MXM90 3.3 2.97 1208 1118 1046 986 936 892 854 821 791 764 740 718
2.64 1074 994 930 877 832 793 759 730 703 679 658 638
2.31 1016 871 814 767 728 694 665 638 615 594 576 558
1.98 1006 862 754 671 624 595 570 547 527 510 493 479
1.65 937 803 703 625 562 511 475 456 440 425 411 399
1.32 821 704 616 548 493 448 411 379 352 340 329 319
0.99 665 570 499 444 399 363 333 307 285 266 250 240
0.66 474 407 356 316 285 259 237 219 204 190 178 168
0.33 252 216 189 168 151 138 126 116 108 101 95 89
0.00
INFORMATION
h=Height measured from the floor to the flare nut.
H=Height measured from the floor to the bottom of the
casing.
In cases where H≤600mm, h is always considered to
be 600 mm, as specified in IEC 60335-2-40:2013 A1
2016 Clause GG2.
For intermediate H values (i.e., when H is between 2 H
values from the table), consider the value that
corresponds to the lower H value from the table. If
H=950 mm, consider the value that corresponds to
"H=900mm".
For intermediate m
max
values (i.e., when m
max
is
between 2 m
max
values from the table), consider the
lower m
max
value from the table. If m
max
=1.1 kg,
consider "m
max
=0.9kg".
Following graphics are possible examples about minimum venting
opening area for natural ventilation.
0 mm
20 mm
100 mm
200 mm
300 mm
VA
min
VA
min
≥1500 mm
≥1500 mm
≥1500 mm
0 mm
20 mm
100 mm
200 mm
300 mm
≥1500 mm
VA
min
VA
min
WARNING
In case of a different configuration is used, do NOT deviate
from requirements mentioned in "6 Preparation" on
page15.
