8 Configuration
Installer reference guide
52
CHYHBH05+08AA + EHYKOMB33A
Daikin hybrid for multi heat pump – heat pump module
4P471761-1A – 2017.10
INFORMATION
In order to optimise comfort as well as running costs, it is
recommended to choose weather-dependent setpoint
operation. Set the settings carefully; they have significant
influence on heat pump as well as boiler operation. Too
high leaving water temperature can result in constant boiler
operation.
Leaving water temperature: Additional zone
Only applicable if 2 leaving water temperature zones are present.
# Code Description
[A.3.1.2.1] N/A LWT setpoint mode:
▪ Fixed: The desired leaving water
temperature is:
▪ NOT weather-dependent (i.e. does
NOT depend on the outdoor
ambient temperature)
▪ fixed in time (i.e., NOT scheduled)
▪ Weather dep. (default): The desired
leaving water temperature is:
▪ weather-dependent (i.e. depends
on the outdoor ambient
temperature)
▪ fixed in time (i.e., NOT scheduled)
# Code Description
[7.7.2.1] [0‑00]
[0‑01]
[0‑02]
[0‑03]

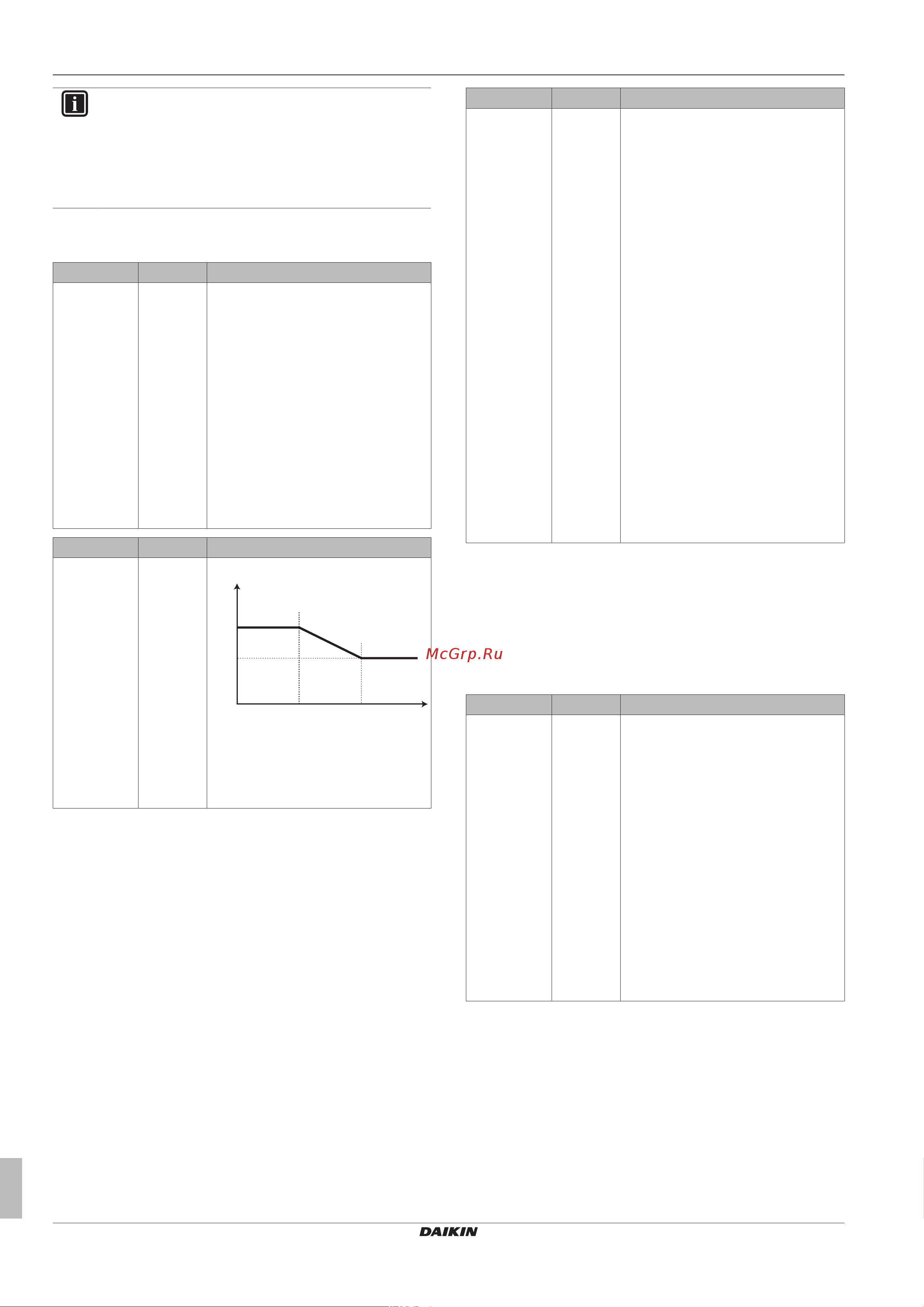

Set weather-dependent heating:
[0-00]
[0-01]
T
a
T
t
[0-03] [0-02]
▪ T
t
: Target leaving water temperature
(additional)
▪ T
a
: Outdoor temperature
continued >>
# Code Description
[7.7.2.1] [0‑00]
[0‑01]
[0‑02]
[0‑03]
<< continuation
▪ [0‑03]: Low outdoor ambient
temperature. –40°C~+5°C (default: –
10°C).
▪ [0‑02]: High outdoor ambient
temperature. 10°C~25°C (default:
15°C).
▪ [0‑01]: Desired leaving water
temperature when the outdoor
temperature equals or drops below
the low ambient temperature.
[9‑05]°C~[9‑06]°C (default: 60°C).
Note: This value should be higher
than [0-00] as for low outdoor
temperatures warmer water is
required.
▪ [0‑00]: Desired leaving water
temperature when the outdoor
temperature equals or rises above
the high ambient temperature.
[9‑05]°C~min(45, [9‑06])°C (default:
35°C).
Note: This value should be lower
than [0-01] as for high outdoor
temperatures less warm water is
required.
Pump control: Flow target
The hybrid module is designed to operate with a fixed flow. This
means that the pump is controlled to work at a flow target set by the
installer. The installer can set the flow target for:
▪ heat pump only operation,
▪ hybrid operation,
▪ gas boiler only operation.
# Code Description
N/A [8‑0B] Target flow rate during heat pump
operation.
The default value is set to deliver the
nominal capacity of the heat pump with
a ΔT over the emitter of 5°C. Decrease
this value if the room temperature is
constantly higher than the desired room
temperature. Increase this value if you
feel discomfort in heat pump only
operation.
Range: 10~20l/min
▪ For CHYHBH05: 13l/min (default)
▪ For CHYHBH08: 15l/min (default)
The default values have been set to
optimise comfort and performance.
Take care when changing them.
