Daikin LRYEN10A7Y1 [130/140] Technical data

26 | Technical data

Installer and user reference guide

130

LRYEN10A7Y1+LRNUN5A7Y1

CO₂ Conveni-Pack outdoor unit

4P605460-1 – 2020.08

(mm)

≥300 ≥500

≥500

≥10

B1 B2 B3

≥100 ≥500

≥500

≥50

≥300

≥200

C1 C2 C3

≥300 ≥500

≥20

≥10 ≥50

≥100 ≥500

≥100

≥300

≥400

≥200

500

1500

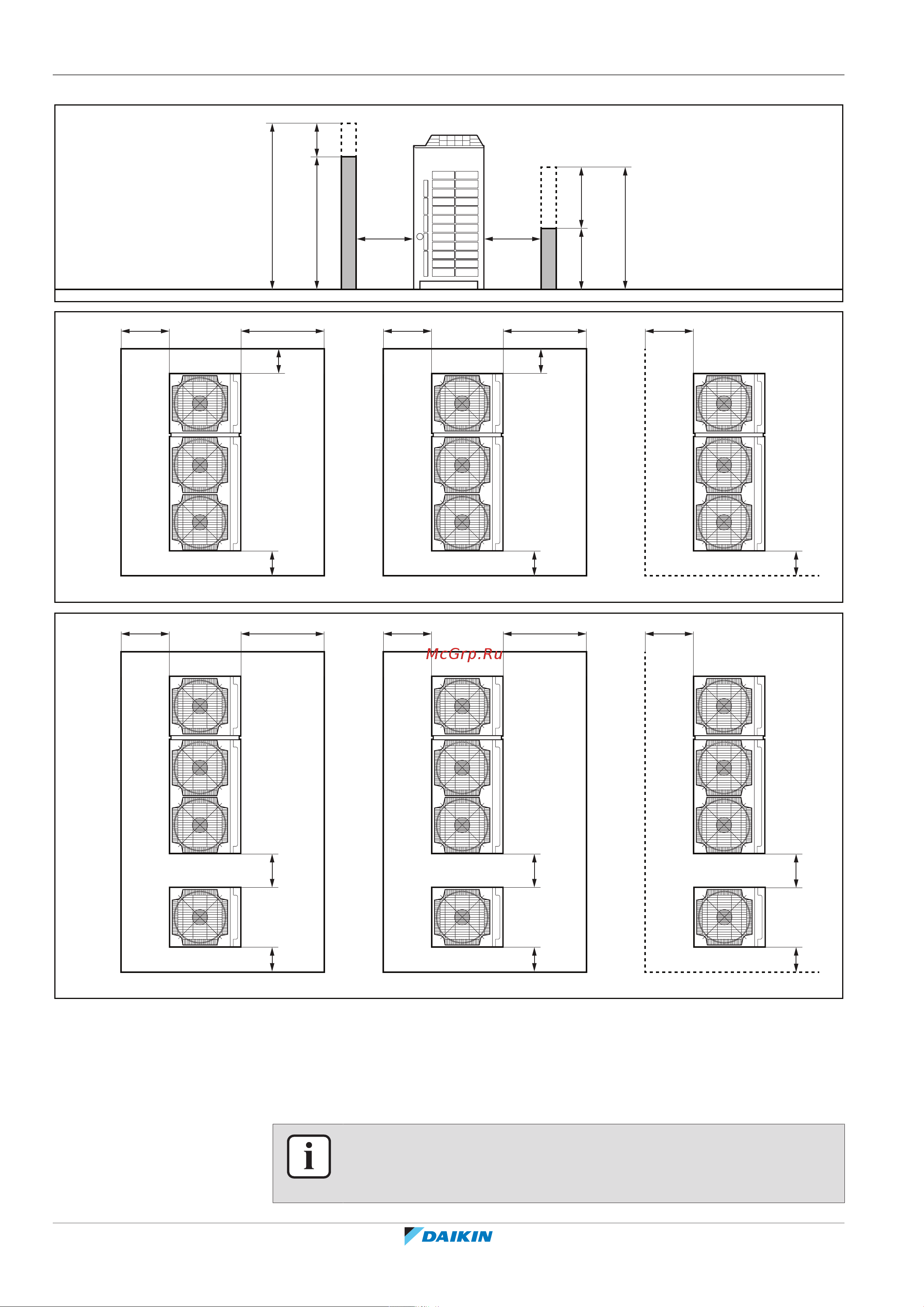

A Maintenance space

B Possible patterns with installation spaces in case of a single outdoor unit.

C Possible patterns with installation spaces in case of an outdoor unit connected to a capacity up unit.

h1 H1 (actual height) –1500mm

h2 H2 (actual height) –500mm

X Front side = 500mm+≥h1/2

Y For patterns B: air inlet side = 300mm+≥h2/2

Y For patterns C: air inlet side = 100mm+≥h2/2

INFORMATION

The service space dimensions in above figure are based on cooling operation at 32°C

ambient temperature (standard conditions).
