16 | Piping installation
Installer and user reference guide
72
LRYEN10A7Y1+LRNUN5A7Y1
CO₂ Conveni-Pack outdoor unit
4P605460-1 – 2020.08
a a
a
a Stop valve for maintenance

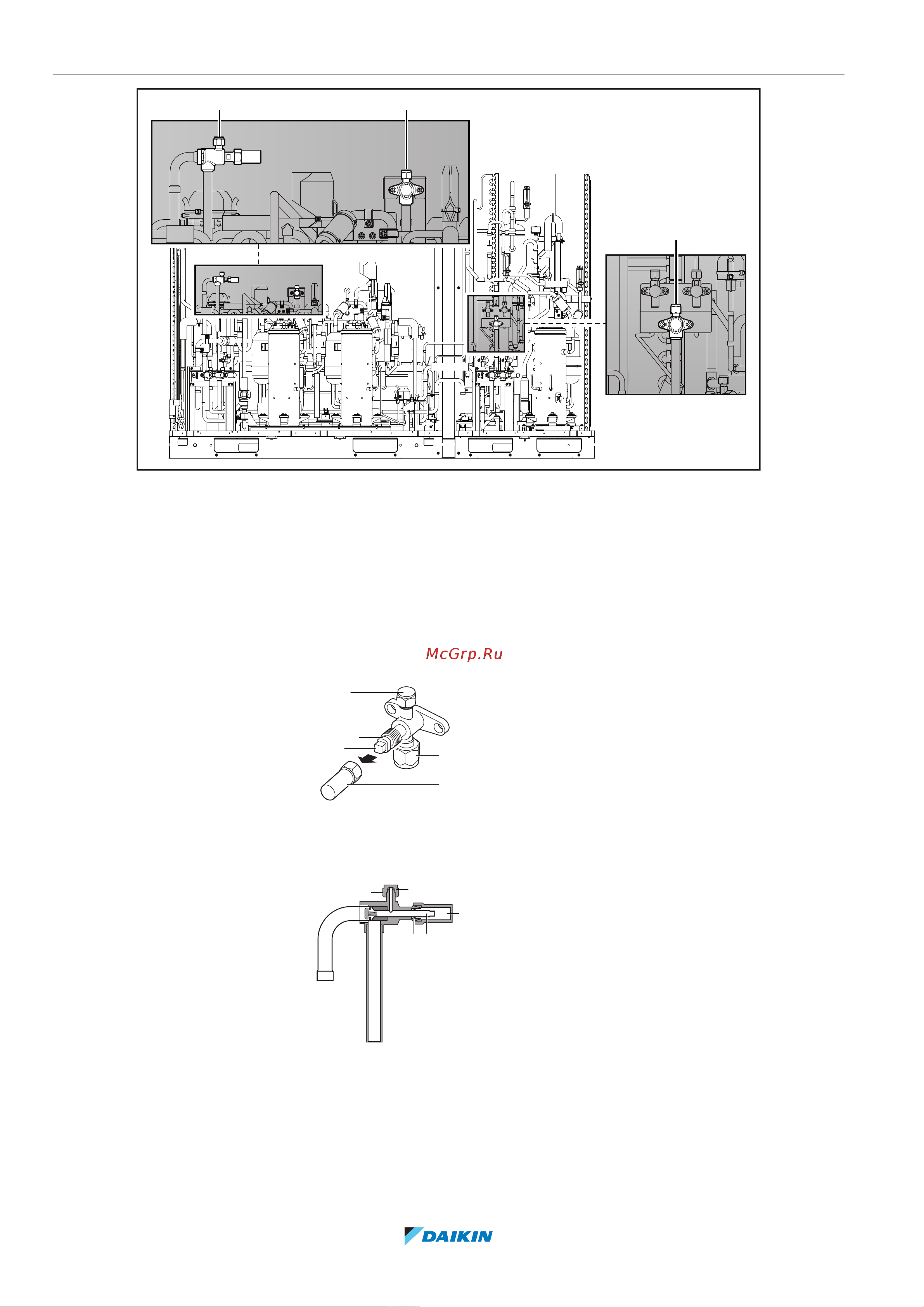

16.2.3 To handle the stop valve
Take the following guidelines into account:
▪ Make sure to keep all stop valves open during operation.
▪ The gas and liquid stop valves are factory closed.
▪ The figures below show the name of each part required in handling the stop
valve.
d
e
a
b
c
a Service port and service port cover
b Stop valve
c Stop valve lock
d Field piping connection
e Stop valve cover
b
a
c
de
a Service port
b Flare gasket of service port
c Stop valve cover
d Stop valve shaft
e Valve seat
▪ Do NOT apply excessive force to the stop valve. Doing so may break the valve
body.
