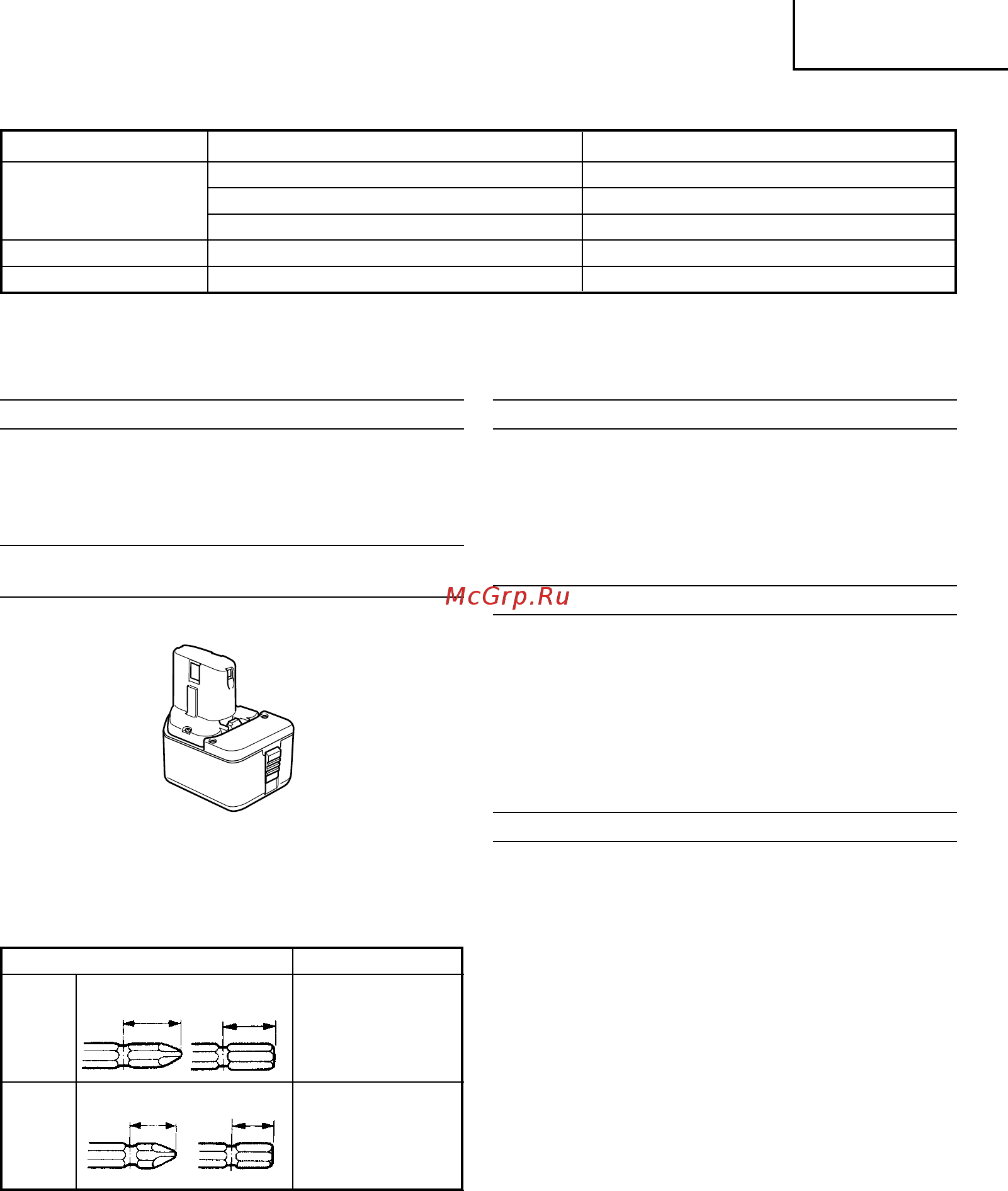

English
8
STANDARD ACCESSORIES
1. Charger (UC14YFA or UC18YG)............................... 1
2. Plastic case ................................................................ 1
Standard accessories are subject to change without
notice.
OPTIONAL ACCESSORIES
(Sold separately)
1. Battery (EB1214S, EB1220BL, EB1226HL)
2. For WH12DAF2
There are two types of attachment sizes for the driver
bit and the socket. Please refer to the table below and
select the attachment size for the driver bit or socket
that is appropriate for your WH12DAF2.
3. For WR12DAF2
The WR12DAF2 type is a 12.7 square driver
specification. Please select the socket with the
appropriate attachment size.
Optional accessories are subject to change without notice.
CHARGER
Model UC14YFA UC18YG
Charging time EB1214S: Approx. 30 min. (at 20°C) EB1214S: Approx. 30 min. (at 20°C)
EB1220BL: Approx. 50 min. (at 20°C) EB1220BL: Approx. 50 min. (at 20°C)
EB1226HL: Approx. 60 min. (at 20°C) ×
Charging voltage 7.2 – 14.4 V 7.2 – 18 V
Weight 0.6 kg 0.3 kg
“×” Indicates that the battery pack is not compatible with that specific charger.
NOTE: The charging time may vary according to the ambient temperature and power source voltage.
Attachment size Purchase location
Type-L
Type-S
Republic of Korea,
Taiwan, Hong Kong,
People’s Republic of
China, Republic of
Singapore
Other than above
regions.
17mm
12mm
13mm
9mm
APPLICATION
〈WH12DAF2〉
䡬 Driving and removing of small screws, small bolts,
etc.
〈WR12DAF2〉
䡬 Tightening and loosening of all types of bolts and
nuts, used for securing structural items
BATTERY REMOVAL/INSTALLATION
1. Battery removal
Hold the handle tightly and push the battery latch to
remove the battery. (See Fig. 1 and 2)
CAUTION:
Never short-circuit the battery.
2. Battery installation
Insert the battery while observing its polarities. (See
Fig. 2)
CHARGING
〈UC14YFA〉
Before using the power tool, charge the battery as follows.
1. Connect the charger’s power cord to a receptacle
When the power cord is connected, the charger’s
pilot lamp will blink in red. (At 1-second intervals.)
2. Insert the battery into the charger
Insert the battery firmly, in the direction shown in
Fig. 3, until it contacts the bottom of the charger
compartment.
CAUTION:
䡬 If the battery is inserted in the reverse direction, not
only recharging will become impossible, but it may
also cause problems in the charger such as deformed
recharging terminal.
3. Charging
When inserting a battery in the charger, charging will
commence and the pilot lamp will light up
continuously in red.
When the battery becomes fully recharged, the pilot
lamp will blink in red. (At 1-second intervals.) (See
Table 1)
(1) Pilot lamp indication
The indications of the pilot lamp will be as shown in
Table 1, according to the condition of the charger or
the rechargeable battery.
