Pioneer AVH-P5200BT [2/8] Connecting the power cord

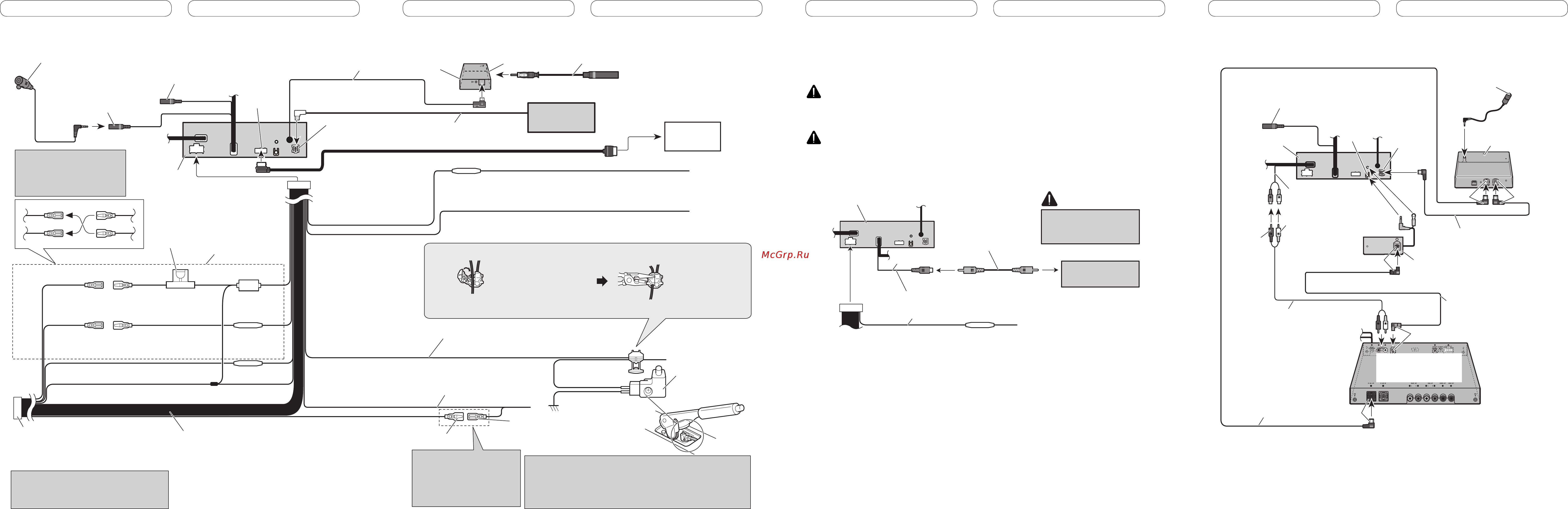

Connecting the power cord

26 pin cable (Supplied with Navigation unit)

Insert the 26 pin cable in the direction indicated in the figure.

Navigation unit

(AVIC-F220 (sold

separately)).

Notes:

· Change the initial setting of this unit (refer to the Operation Manual). The

subwoofer output of this unit is monaural.

· When using a subwoofer of 70 W (2 Ω) , be sure to connect with V

iolet and

iolet/black leads of this unit. Do not connect anything to Green and

Green/black leads.

Connection method

1. Clamp

the

lead.

2. Clamp firmly with

needle-nosed pliers.

Note:

· The position of the parking brake switch depends on the vehicle model. For details, consult the vehicle

Owner’s Manual or dealer.

Yellow/black

If you use an equipment with Mute function

, wire this lead to the Audio Mute lead on

that equipment. If not, keep the Audio Mute lead free of any connections.

Light green

Used to detect the ON/OFF status of the parking brake.

This lead must be connected to the power supply side of

the parking brake switch.

Blue/white

Connect to system control

terminal of the power amp

(max. 300 mA 12 V DC).

Blue/white (6*)

Connect to auto

-antenna relay control

terminal (max. 300 mA 12 V DC).

The pin position of the ISO

connector will differ depending on

the type of vehicle. Connect 5* and

6* when P

in 5 is an antenna control

type. In another type of vehicle,

never connect 5* and 6*.

Blue/white (5*)

Ground side

ower supply side

arking brake

switch

Speaker leads

White: F

ront

left 

White/black: Front left 

Gray: Front right 

Gray/black: Front right 

Green: Rear left  or subwoofer 

Green/black: Rear left  or subwoofer 

Violet: Rear right  or subwoofer 

Violet/black: Rear right  or subwoofer 

ISO connector

Note:

In some vehicles, the ISO connector may be divided into

two

. In this case, be sure to connect to both connectors.

Note:

Depending on the kind of vehicle,

the function of 2* and 4* may be

different. In this case, be sure to

connect 1* to 4* and 3* to 2*.

ellow (2*)

Back-up

(or accessor

Yellow (1*)

Connect to the constant 12 V

supply terminal.

Connect leads of the same

color to each other.

Fuse resistor

Red (4*)

Accessory

(or back-up)

Red (3*)

Connect to terminal controlled by

ignition switch (12 V DC).

Black (chassis ground)

Connect to a clean, paint-free metal location.

This product

Microphone input Jack (MIC)

Microphone (supplied)

Antenna input

Fuse resistor

Orange/white

Connect to lighting switch terminal.

Fuse resistor

Violet/white

Of the two lead wires connected to the back lamp, connect the one in which the

voltage changes when the gear shift is in the REVERSE (R) position. This connection

enables the unit to sense whether the car is moving forwards or backwards.

4 m

Fuse (10 A)

Please contact your dealer to inquire

about the connectable navigation unit.

Tuner box (supplied)

Antenna cable (supplied)

80 cm

Wired remote input (WIRED REMOTE INPUT)

Hard-wired remote control adaptor can be

connected (sold separately).

RGB input

17 cm

When you connect the separately sold

multi-channel processor (DEQ-P6600) to this unit,

do not connect anything to the speaker

leads and system remote control (blue/white).

IP-BUS input

(Blue)

Pioneer IP-BUS

accessories

IP-BUS cable

Connecting the units Connecting the units Connecting the units Connecting the units

When connecting with a rear view camera

When this product is used with a rear view camera, it is possible to automatically switch

from the video to rear view image when the gear shift is moved to REVERSE (R).

WARNING

USE INPUT ONLY FOR REVERSE OR MIRROR IMAGE REAR VIEW CAMERA. OTHER USE MAY

RESULT IN INJURY OR DAMAGE.

CAUTION

• The screen image may appear reversed.

• The rear view camera function is to be used as an aid for backing into a tight parking spot. Do

not use this function for entertainment purposes.

• Objects in the rear view may appear closer or more distant than they actually are.

To video output

Rear view camera

(sold separately)

Rear view camera input (REAR VIEW CAMERA IN)

Violet/white

Of the two lead wires connected to the back lamp, connect the one

in which the voltage changes when the gear shift is in the

REVERSE (R) position. This connection enables the unit to

sense whether the car is moving forwards or backwards.

You must use a camera

which outputs mirror

reversed images.

CAUTION

Fuse resistor

This product

RCA cable (sold separately)

15 cm

13 cm

• It is necessary to set Camera Polarity properly in System Menu when connecting the rear view camera.

When connecting with a multi-channel processor

IP-BUS cable (supplied with

multi-channel processor)

RCA cable (supplied with

multi-channel processor)

Optical cable

(supplied with

multi-channel processor)

This product

IP-BUS cable

(Supplied with Bluetooth adapter)

Black

Bluetooth adapter

(e.g. CD-BTB200)

(sold separately)

Microphone

for hands-free phoning

(supplied with Bluetooth adapter)

Black

Optical cable connection box

(supplied with multi-channel processor)

To SWL

To SWR

Blue

Multi-channel processor

(e.g., DEQ-P6600)

(sold separately)

Black

IP-BUS input

Optical

output

Wired remote input (WIRED REMOTE INP

)

Hard-wired remote control adaptor can be

connected (sold separately).

17 cm

Subwoofer output

(SUBWOOFER OUTPUT

or NON-F

ADING OUTPUT)
