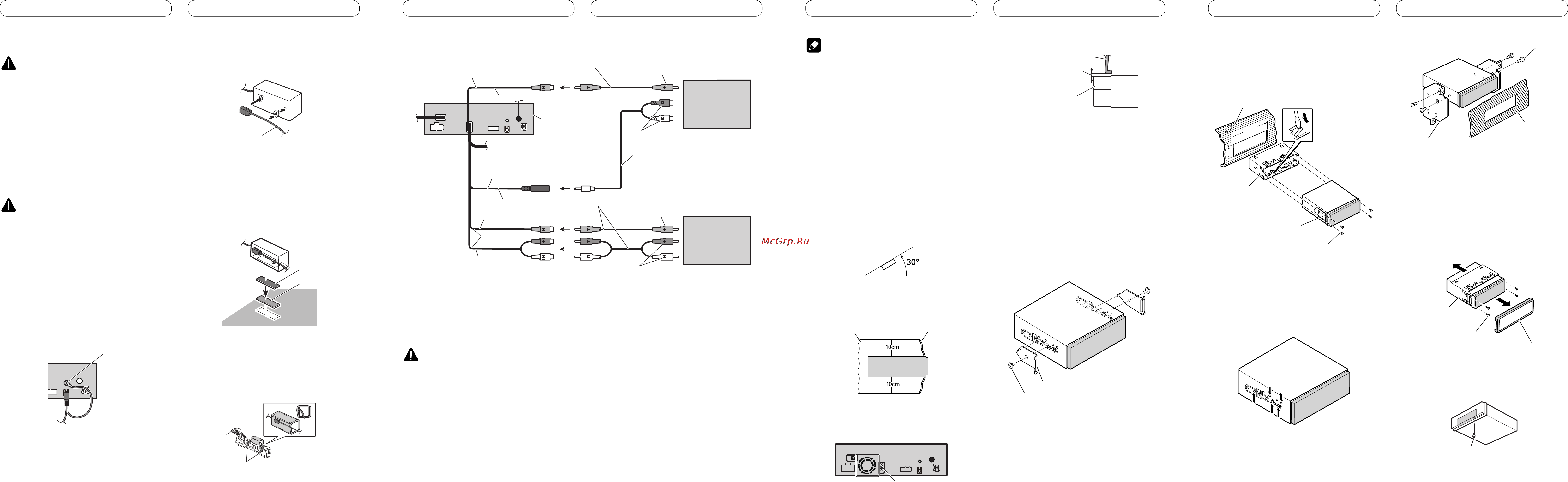

Pioneer AVH-P5200BT [3/8] Connecting the units
![Pioneer AVH-P5200BT [3/8] Connecting the units](/views2/1008049/page3/bg3.png)
Note
• Check all connections and systems before final
installation.
• Do not use unauthorized parts. The use of
unauthorized parts may cause malfunctions.
• Consult with your dealer if installation requires
drilling of holes or other modifications of the
vehicle.
• Do not install this unit where:
— it may interfere with operation of the vehicle.
— it may cause injury to a passenger as a result of
a sudden stop.
• Do not install the display where it may (i) obstruct
the driver’s vision, (ii) impair the performance of
any of the vehicle’s operating systems or safety
features, including air bags, hazard lamp buttons or
(iii) impair the driver’s ability to safely operate the
vehicle.
• The semiconductor laser will be damaged if it
overheats. Install this unit away from hot places
such as near the heater outlet.
• Optimum performance is obtained when the unit is
installed at an angle of less than 30°.
• When installing, to ensure proper heat dispersal
when using this unit, make sure you leave ample
space behind the rear panel and wrap any loose
cables so they are not blocking the vents.
• The cords must not cover up the area shown in
the figure below. This is necessary to allow the
amplifires to radiate freely.
• Make sure you leave enough gap between the
dashboard and the LCD panel of this unit so the
LCD panel can be opened and closed without
contacting with the dashboard.
DIN front/rear-mount
This unit can be properly installed either from
”Front” (conventional DIN Front-mount) or
”Rear” (DIN Rear-mount installation, utilizing
threaded screw holes at the sides of unit
chassis). For details, refer to the following
installation methods.
• Use commercially available parts when
installing.
DIN Front-mount
1. Decide the position of the side
brackets.
• When installing in a shallow space, change the
position of side brackets (small).
Flush surface screw (5 mm × 6 mm)
Side bracket (small)
2. Install the unit into the dashboard.
Insert the mounting sleeve into the dashboard.
And then secure the mounting sleeve by using
a screwdriver to bend the metal tabs (90°) into
place.
182
53
Dashboard
Side bracket
Screw (2 mm × 3 mm)
Mounting sleeve
DIN Rear-mount
1. Determine the appropriate position
where the holes on the bracket and the
side of the unit match.
• When installing in a shallow space, use the
following screw holes.
*1 Use binding screws (4 mm × 3 mm) only.
*1
*1
2. Tighten two screws on each side.
Use any of binding screws (4 mm × 3 mm),
binding screws (5 mm × 6 mm) or flush surface
screws (5 mm × 6 mm), depending on the
shape of screw holes in the bracket.
Screw
Dashboard or
Console
Factory radio mounting
bracket
Removing the unit
Extend top and bottom of the trim ring outwards
to remove the trim ring. And then loosen the
screws (2 mm × 3 mm) to remove the mounting
sleeve.
• When reattaching the trim ring, push the trim
ring onto the unit until it clicks after reattaching
the mounting sleeve. (If the trim ring is attached
upside down, the trim ring will not fit properly.)
Mounting sleeve
Trim ring
Screw (2 mm × 3 mm)
Fastening the front panel
If you do not plan to detach the front panel, the
front panel can be fastened with supplied screw.
Screw
Installation Installation
LCD panel
Leave gap
Dashboard
Do not cover this area.
When connecting the external video component and the display
This product
External video
component
(sold separately)
RCA cables (sold separately)
Audio input
(AUDIO INPUT)
Video input (VIDEO INPUT)
13 cm
Display with
RCA input jacks
(sold separately)
Rear monitor output
(REAR MONITOR OUTPUT)
To video input
To video output
To audio outputs
13 cm
Rear audio output
(REAR MONITOR OUTPUT(AUDIO))
To audio input
RCA cables (sold separately)
17 cm
Mini pin plug cable
(sold separately)
• It is necessary to change AV Input in System Menu when connecting the external video
component.
When using a display connected to rear video output
This product’s rear video output and rear audio output are for connection of a display to
enable passengers in the rear seats to watch the DVD, etc.
WARNING
Never install the display in a location where it is visible to the driver while driving.
Connecting the units
Leave ample space
Dash board
Connecting and installing the optical cable connection box
WARNING
• Avoid installing the optical cable connection
box in locations where the operation of safety
devices such as airbags is prevented by this
unit. Otherwise, there is a danger of a fatal
accident.
• Avoid installing the optical cable connection
box in locations where the operation of the
brake may be prevented. Otherwise, it may
result in a traffic accident.
• Fix the optical cable connection box securely
with the hook and loop fastener or lock tie. If
the unit is loose, it disturbs driving stability,
which may result in a traffic accident.
CAUTION
• Install this unit using only the parts supplied with
this unit. If other parts are used, this unit may be
damaged or could dismount itself, which leads to
an accident or other problems.
• Do not install this unit near the doors where
rainwater is likely to be spilled on the unit. Incursion
of water into the unit may cause smoke or fire.
Connecting the optical cable
1. Connect the optical cable and ground
lead to the main unit.
Connect the optical cable so that it does not
protrude from the main unit, as shown in the
illustration. Fasten the ground lead to the
protrusion on the back of the main unit.
Screw
2. Connect the optical cable to the optical
cable connection box.
optical cable
Installing the optical cable
connection box
• When installing the optical cable
connection box with the hook and loop
fastener.
Install the optical cable connection box
using the hook and loop fastener in the
ample space of the console box.
Hook fastener
Loop fastener
• When installing the optical cable
connection box with the lock tie.
Wrap the optical cable and connection box with
the protection tape and fasten with the power
code using the lock tie.
Wrap with the protection tape
Fasten with the lock tie
Connecting the units
