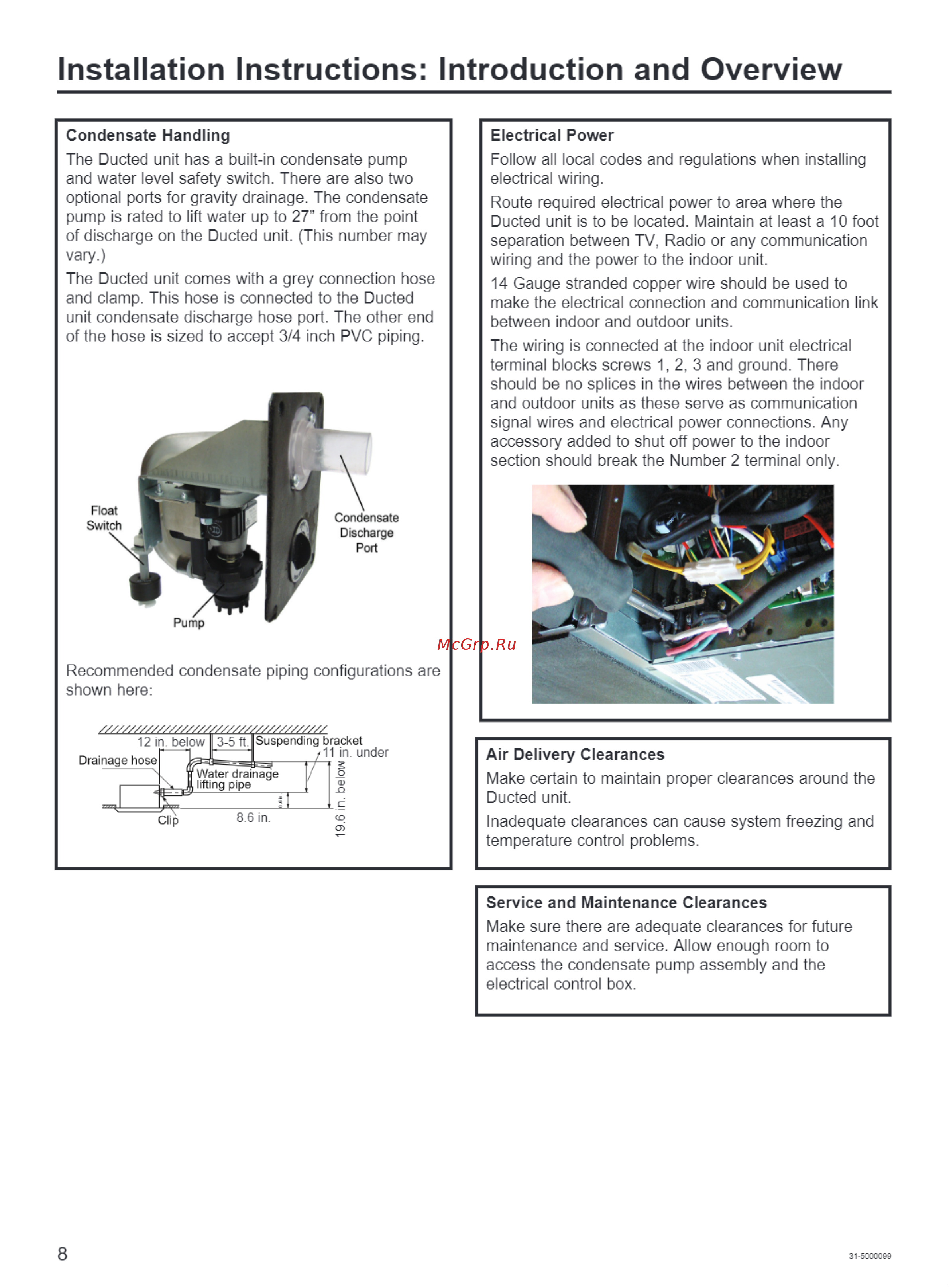

Installation Instructions Introduction and Overview Condensate Handling Electrical Power The Ducted unit has a built in condensate pump and water level safety switch There are also two optional ports for gravity drainage The condensate pump is rated to lift water up to 27 from the point of discharge on the Ducted unit This number may vary Follow all local codes and regulations when installing electrical wiring The Ducted unit comes with a grey connection hose and clamp This hose is connected to the Ducted unit condensate discharge hose port The other end of the hose is sized to accept 3 4 inch PVC piping 14 Gauge stranded copper wire should be used to make the electrical connection and communication link between indoor and outdoor units Route required electrical power to area where the Ducted unit is to be located Maintain at least a 10 foot separation between TV Radio or any communication wiring and the power to the indoor unit The wiring is connected at the indoor unit electrical terminal blocks screws 1 2 3 and ground There should be no splices in the wires between the indoor and outdoor units as these serve as communication signal wires and electrical power connections Any accessory added to shut off power to the indoor section should break the Number 2 terminal only Recommended condensate piping configurations are shown here 12 in below II 3 5 ft IISuspending bracket 11 in under Drainage hose Water drainage lifting pipe Clip 8 6 in Air Delivery Clearances Make certain to maintain proper clearances around the Ducted unit Inadequate clearances can cause system freezing and temperature control problems Service and Maintenance Clearances Make sure there are adequate clearances for future maintenance and service Allow enough room to access the condensate pump assembly and the electrical control box 8 31 5COCÖ 9
