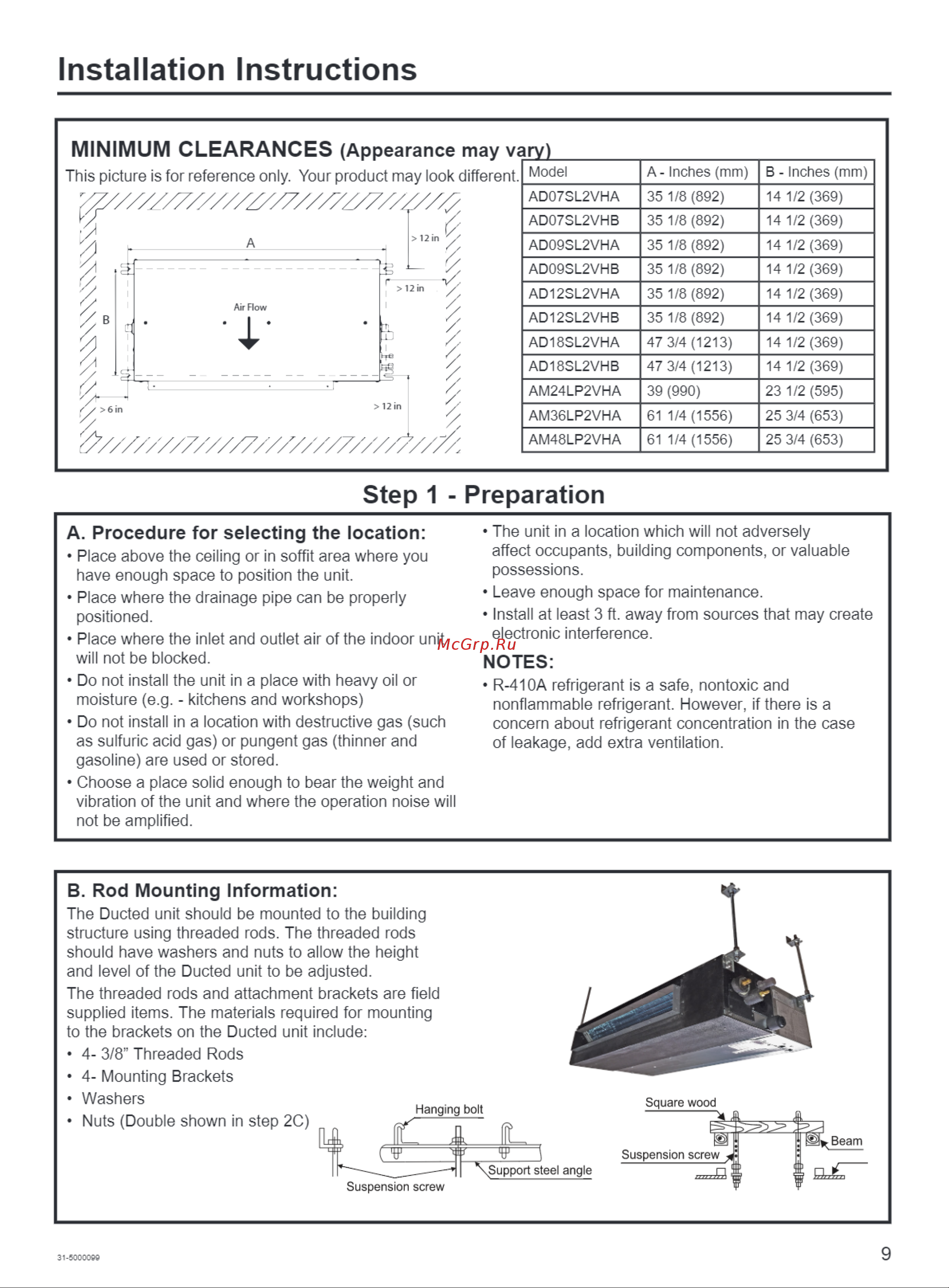

Installation Instructions MINIMUM CLEARANCES Appearance may v This picture is for reference only Your product may look different Air Flow 12 in 6 in a 7 7 7 Model A Inches mm B Inches mm AD07SL2VHA 35 1 8 892 14 1 2 369 AD07SL2VHB 35 1 8 892 14 1 2 369 AD09SL2VHA 35 1 8 892 14 1 2 369 AD09SL2VHB 35 1 8 892 14 1 2 369 AD12SL2VHA 35 1 8 892 14 1 2 369 AD12SL2VHB 35 1 8 892 14 1 2 369 AD18SL2VHA 47 3 4 1213 14 1 2 369 AD18SL2VHB 47 3 4 1213 14 1 2 369 AM24LP2VHA 39 990 23 1 2 595 AM36LP2VHA 61 1 4 1556 25 3 4 653 AM48LP2VHA 61 1 4 1556 25 3 4 653 Step 1 Preparation The unit in a location which will not adversely affect occupants building components or valuable possessions A Procedure for selecting the location Place above the ceiling or in soffit area where you have enough space to position the unit Leave enough space for maintenance Place where the drainage pipe can be properly positioned Install at least 3 ft away from sources that may create electronic interference Place where the inlet and outlet air of the indoor unit will not be blocked NOTES Do not install the unit in a place with heavy oil or moisture e g kitchens and workshops R 410A refrigerant is a safe nontoxic and nonflammable refrigerant However if there is a concern about refrigerant concentration in the case of leakage add extra ventilation Do not install in a location with destructive gas such as sulfuric acid gas or pungent gas thinner and gasoline are used or stored Choose a place solid enough to bear the weight and vibration of the unit and where the operation noise will not be amplified B Rod Mounting Information The Ducted unit should be mounted to the building structure using threaded rods The threaded rods should have washers and nuts to allow the height and level of the Ducted unit to be adjusted The threaded rods and attachment brackets are field supplied items The materials required for mounting to the brackets on the Ducted unit include 4 3 8 Threaded Rods 4 Mounting Brackets Washers Nuts Double shown in step 2C Hanging bolt Suspension screw 31 50CC099 9
