02_NVspec_ver202e_pdf.xls 2_Object Details
2-3.Mr.SLIM
Indoor[1]-[50]

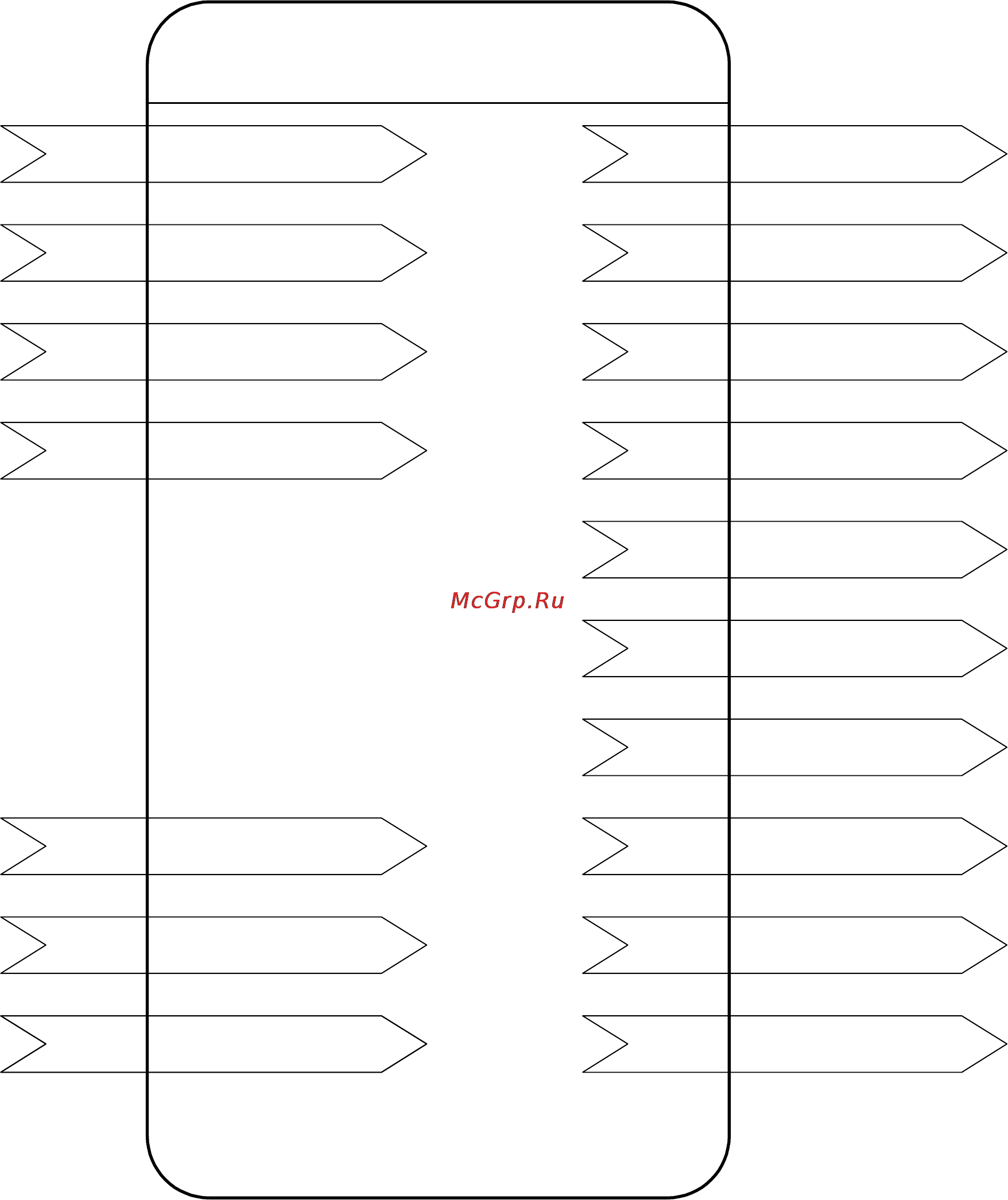

Network Variables
nv1n
nviOnOff_n
SNVT switch
nv2n
nvoOnOff_n
SNVT switch
nv3n
nviMode_n
SNVT hvac mode
nv4n
nvoMode_n
SNVT hvac mode
nv5n
nviSetPoint_n
SNVT tem
pp
nv6n
nvoSetPoint_n
SNVT tem
pp
nv7n
nviFanSpeed_n
SNVT switch
nv8n
nvoFanSpeed_n
SNVT switch
nv10n
nvoThermo_n
SNVT state
nv12n
nvoSpaceTemp_n
SNVT tem
pp
nv16n
nvoAlarm_n
SNVT switch
(note 4,5)
nv19n
nviProOnOff_n
SNVT switch
nv20n
nvoProOnOff_n
SNVT switch
(note 4,5)
(note 4,5)
nv21n
nviProMode_n
SNVT switch
nv22n
nvoProMode_n
SNVT switch
(note 4,5)
(note 4,5)
nv23n
nviProSetP_n
SNVT switch
nv24n
nvoProSetP_n
SNVT switch
(note 4,5)
NOTES:
1. stencil for LonMaker:MrSLIM[1]-[50]
2. "n" of the network variable shows M-NET address of Mr.SLIM.
3.
Please turn ON the switch
(
SW1-6
)
when Mr.SLIM is o
p
eration from L
ON
W
ORKS
.
(
Factor
y
settin
g
"OFF"
)
4. There is a case which cannot be used with the system configuration of the air conditioners units.
5. For the use of this function, turn ON the switch(SW1-1) on LM-AP.(Factory setting "OFF")
WLN01-1023(Ver2.02) - 5 -
