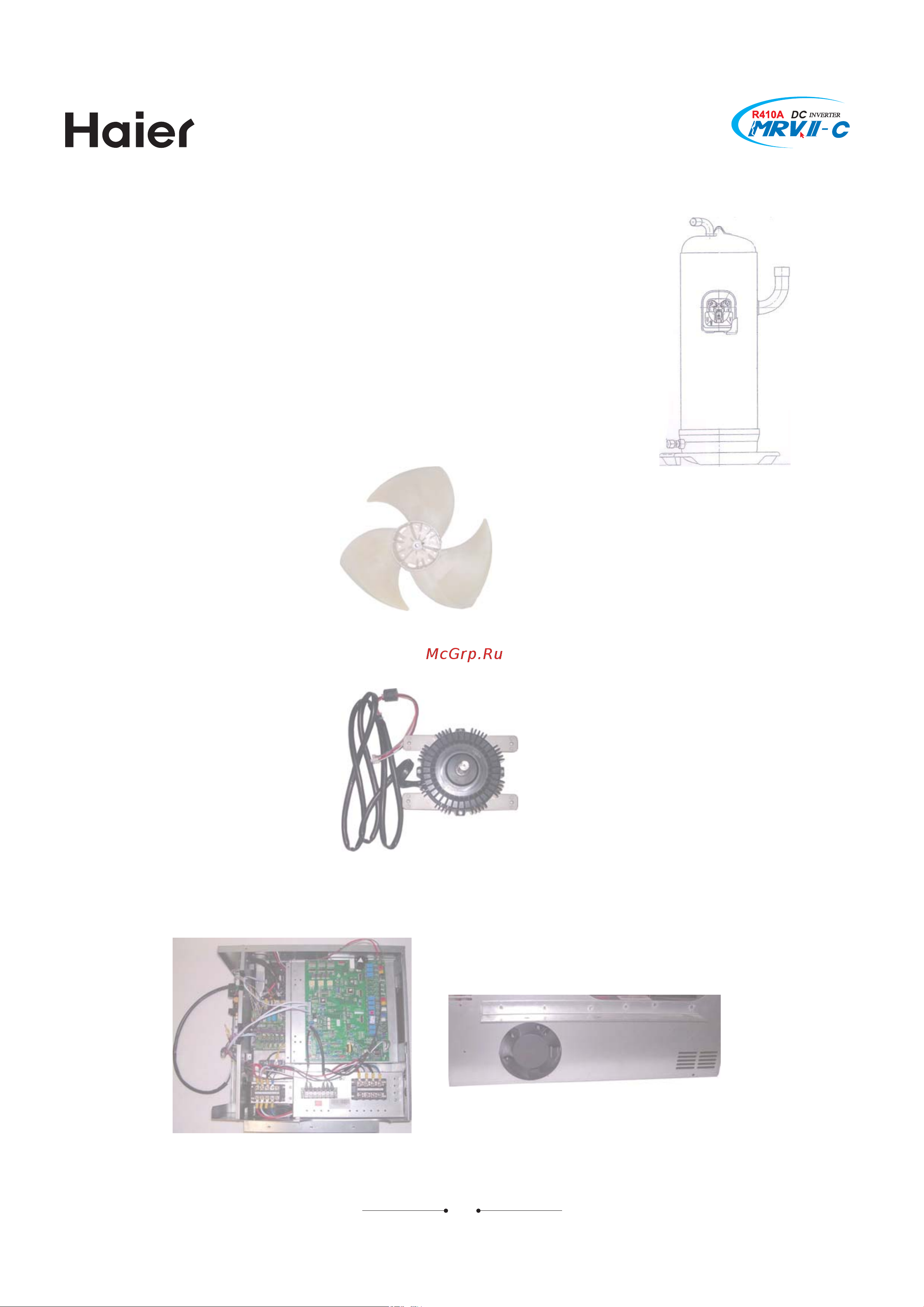

6. Features
6.1 Adopt the high efficiency compressor
The compressor is scroll type and hermetically-sealled. It is driven by
the DC bruchless motor, and it is protected by the electric control, such
as the discharging temperature, the suction temperature, the oil
temperature, the discharging pressure, the running current, etc.
6.2 Large diameter fan blade
The 3-blade fan on outdoor unit is 700mm diameter. And the built-in part
is made of Aluminum. The large-blade fan is running stably and silently.
6.3 High efficiency DC fan motor
The DC fan motor is high efficiency and low noise. Stable operation and reliable performance.
6.4 Intelligent electric control, with heat expelling fan to reduce the electric control box
temperature and keep the electric safety.
