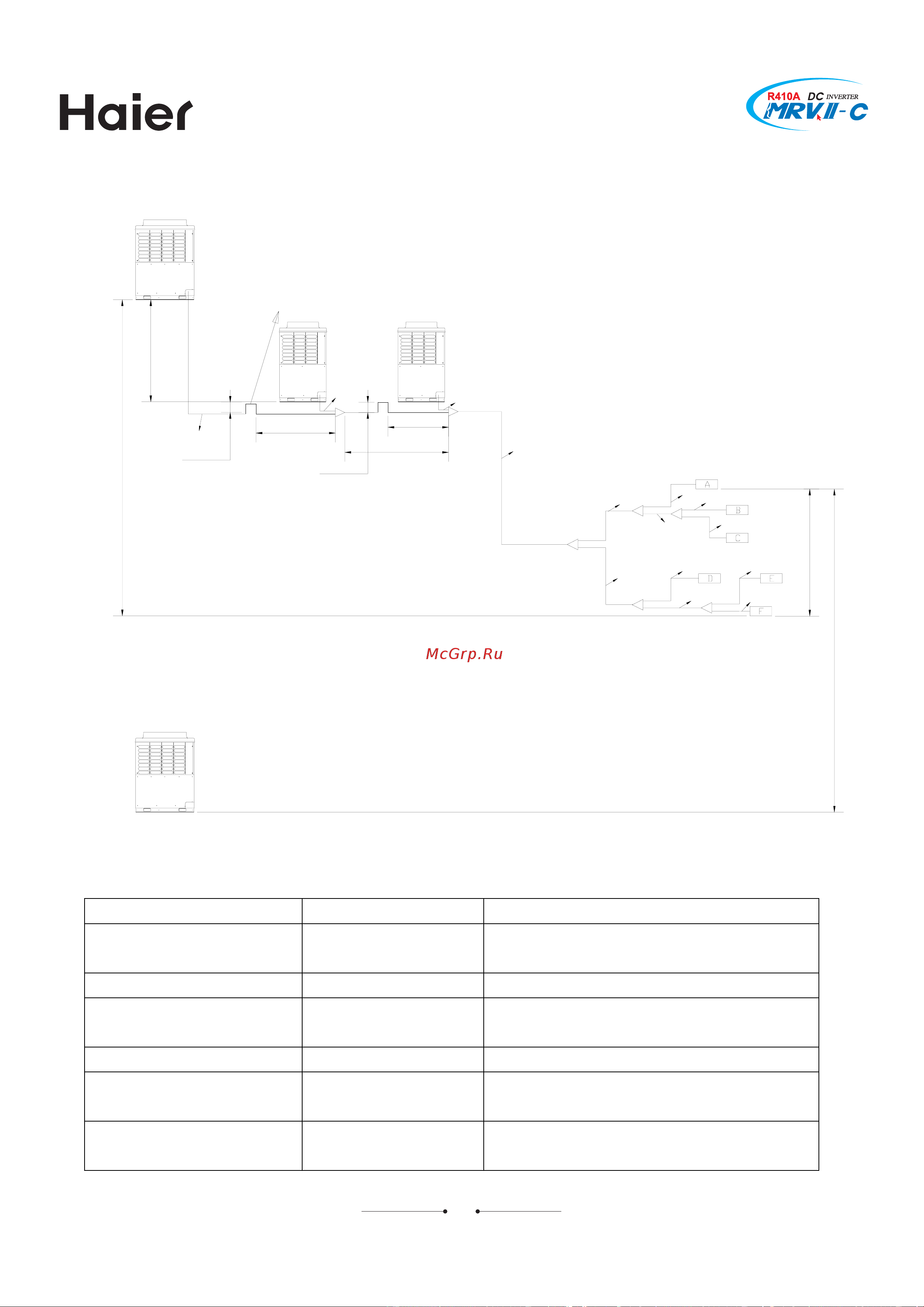

c. Allowable pipe length and height difference
when the distance between outdoors is over 2m , the oil
trap must be set (upr ight projecting pipe, 2 00mm high)
outdoor3
outdoor2
over 200mm
over 200mm
below 2m
below 2m
L7+L14+L13＜40m
L1
L5
L14
L15
L13
L12
L11
L10
L9
L8
L7
L6
L2+L3
＜10m
L4
L3
L2
L1
＜10m
outdoor1
max. drop:5m
outdoor is lower, max. drop is 40m
max. drop:15m
outdoor is uppper,max. drop is 50m
Max. length Pipe in above figure
Single way total pipe length 300
L1+L2+ L3+ L4+ L5+ L6+ L7+L8+ L9+ L10+
L11+ L12+ L13+ L14+ L15
Single way max. pipe length 150 L1+L2+ L3+ L5+ L7+ L14+ L13
Max. pipe length after 1
st
branch pipe
40 L7+L13+L14
Main pipe actual length 90 L5
Height difference between
indoors
15 ————
Height difference between
outdoors
5 ————
400
